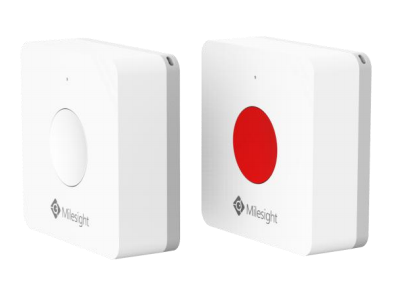

Milesight WS101 LoRaWAN Smart Button
Pickup available at NexGen Computing
Usually ready in 24 hours
Instant Control and Automation at Your Fingertips
The Milesight WS101 Smart Button is a versatile LoRaWAN®-based controller for seamless wireless triggers, controls, and alarms. This compact, battery-powered device is designed for simplicity and power, allowing you to control devices, trigger automated scenes, or send emergency SOS alerts with a simple press. Its portability makes it easy to carry or install anywhere, providing a reliable solution for smart homes, modern offices, hotels, and schools. Configure actions for short press, long press, and double press to manage your environment effortlessly.
Advanced Wireless Technology
Leveraging LoRaWAN® technology, the WS101 Smart Button boasts an impressive wireless transmission range of up to 15 km in line-of-sight scenarios. It features a built-in LED indicator and a buzzer to provide instant feedback on press actions, network status, and low battery levels. For ultimate convenience, the device is equipped with NFC (Near Field Communication) for one-touch configuration via a mobile app. Furthermore, it supports the Milesight D2D (Device-to-Device) protocol, which enables ultra-low latency direct control over other Milesight devices without the need for a gateway.
Key Features
- Multiple Press Actions: Customize single, double, and long presses to trigger various commands and scenes.
- Long-Range Transmission: LoRaWAN® technology enables communication over long distances, up to 15 km.
- NFC Configuration: Easily configure the device in seconds using the Milesight ToolBox app.
- Milesight D2D Protocol: Allows for direct communication between devices for faster response times without a central gateway.
- Visual and Audible Alerts: A built-in LED and buzzer provide clear status indications.
- Compact & Portable: Simple to install on any surface or carry with you for control on the go.
- Wide Compatibility: Functions seamlessly with standard LoRaWAN® gateways and the Milesight IoT Cloud.
Technical Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Hardware | |
| Button | 1 × External Press Button, 1 × Internal Reset Button |
| Button Modes | Short Press, Long Press, Double Press |
| Indicators | 1 × LED, 1 × Buzzer |
| Software | |
| Configuration | Mobile App via NFC or Downlink |
| Physical Characteristics | |
| Power Supply | 1 × 1650 mAh ER14335 Li-SOCl2 battery |
| Operating Temperature | -30°C to 60°C |
| Ingress Protection | IP30 |
| Dimensions | 50 x 50 x 18 mm |
| Installation | On flat surfaces with screws or 3M tape, strap, or portable |
| Regulatory Approvals | CE, FCC, LoRaWAN® Certified |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
