Milesight TS201-TH Industrial LoRaWAN Temperature & Humidity Sensor
Pickup available at NexGen Computing
Usually ready in 24 hours
Precision Environmental Monitoring for Demanding Applications
The Milesight TS201-TH is a high-precision, industrial-grade sensor designed for accurate temperature and humidity monitoring in the most challenging environments. Engineered for reliability, this sensor is an essential tool for applications where environmental conditions are critical, including cold chain logistics, pharmaceutical storage, food processing, and agricultural settings. Its robust, IP67-rated waterproof design ensures consistent performance even in harsh and wet conditions.
Advanced Features for Uncompromised Accuracy

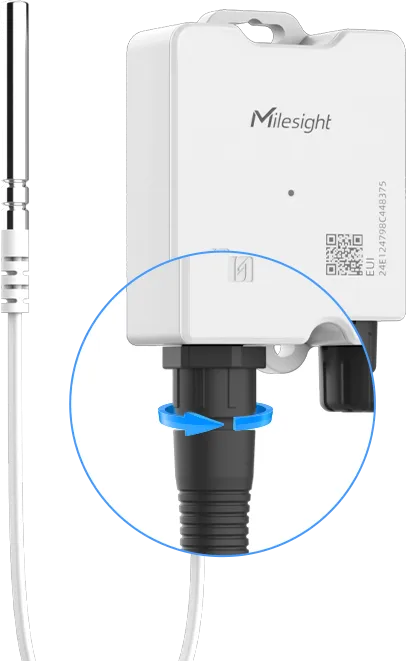

Featuring a detachable probe with a high-accuracy MEMS CMOSens® sensor, the TS201-TH allows for easy maintenance and independent calibration to ensure data integrity. This model not only measures a wide temperature range but also provides relative humidity readings, offering a complete environmental picture. With LoRaWAN® technology, it ensures long-range wireless data transmission of up to 10-15 km in rural areas. The device also supports Milesight's D2D (Device to Device) protocol for ultra-low latency communication without a gateway.
Key Benefits
- High-Accuracy Sensing: Delivers precise temperature (±0.2°C) and humidity (±2% RH) readings.
- Detachable Probe: Simplifies calibration and maintenance processes for consistent accuracy.
- Rugged & Waterproof: IP67-rated enclosure protects against water and dust ingress, ideal for harsh environments.
- Long-Range Wireless: Utilizes LoRaWAN® for reliable data transmission over long distances.
- Onboard Data Storage: Locally stores up to 4,000 records to prevent data loss and supports data retransmission.
- NFC Configuration: Allows for quick and easy device setup using a mobile app.
- Long Battery Life: Powered by a 2700 mAh Li-SOCl2 battery, offering up to 10 years of operation.
- Certified Reliability: Compliant with EN12830 standards for cold chain applications.
Technical Specifications
| Category | Specification |
|---|---|
| Wireless Technology | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensor Type | Digital CMOSens® technology (MEMS) |
| Temperature Range | -40°C to +125°C |
| Temperature Accuracy | ±0.2°C (0°C to 60°C), ±0.3°C to ±0.5°C across full range |
| Temperature Resolution | 0.1°C |
| Humidity Range | 0% to 100% RH |
| Humidity Accuracy | ±2% RH |
| Humidity Resolution | 0.5% RH |
| Data Storage | Up to 4,000 records |
| Power Supply | 1 × 2700 mAh ER14505 Li-SOCl2 Battery (replaceable) |
| Ingress Protection | IP67 |
| Probe Details | Connector: 5-Pin M12 A-Coded Male; Cable Length: 1.5m; Probe Length: 50mm |
| Dimensions | 58 × 65 × 25 mm (2.28 × 2.56 × 0.98 in) |
| Mounting Options | Wall Screw, Cable-tie, Magnetic (Optional) |
| Certifications | CE, FCC, EN12830, RoHS |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
