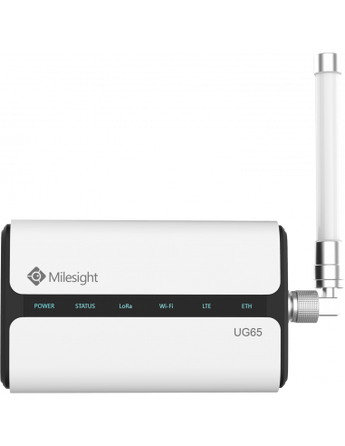

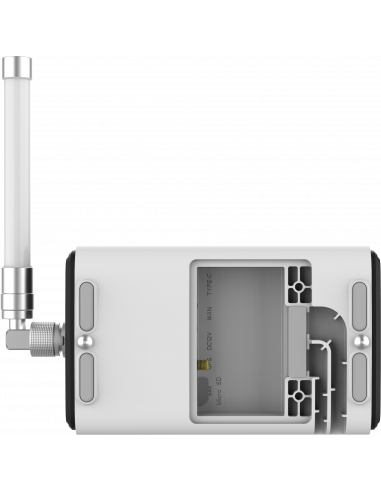

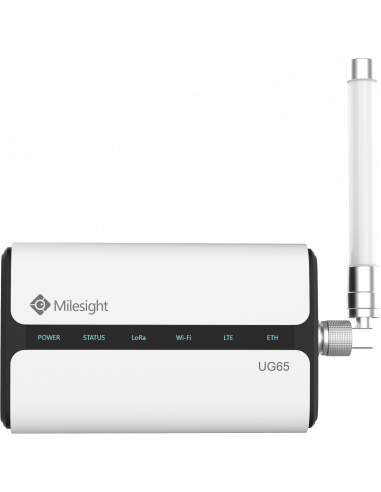

Milesight UG65 Industrial LoRaWAN Gateway with 4G LTE, Wi-Fi & Ethernet
Pickup available at NexGen Computing
Usually ready in 24 hours
Robust, High-Performance LoRaWAN® Connectivity for Demanding Environments
The Milesight UG65 is a semi-industrial, 8-channel LoRaWAN® gateway designed for high performance and unwavering reliability. Engineered for applications in smart offices, smart buildings, and other indoor or semi-outdoor settings, it provides extensive coverage and connects to over 2000 nodes. Its IP65-rated enclosure ensures protection against dust and water, making it suitable for deployment under eaves or in other partially exposed locations. With a powerful quad-core processor and the advanced Semtech SX1302 LoRa chip, the UG65 handles a higher volume of traffic with lower power consumption, ensuring your IoT network runs efficiently.
Seamless Integration and Uninterrupted Data Flow
Ensure your critical IoT data is always online with multiple backhaul connectivity options. This model is equipped with high-speed Gigabit Ethernet (PoE supported), Wi-Fi, and a 4G LTE cellular module, providing a reliable failover to keep your network operational. The UG65 features a built-in network server and is also highly compatible with mainstream network servers like The Things Stack, ChirpStack, and AWS, offering flexibility and simplifying deployment. Manage your devices remotely and with ease using the DeviceHub and Milesight IoT Cloud platforms.
Key Features:
- High-Performance Core: Features a Quad-core 1.5 GHz 64-bit processor and 512 MB RAM for rapid data processing.
- Next-Gen LoRa Chip: Equipped with the Semtech SX1302 chip, supporting 8 half/full-duplex channels for robust traffic management.
- Extensive Coverage: Achieves a line of sight up to 15 km and covers approximately 2 km in urban environments.
- Triple Backhaul Options: Guarantees constant connectivity with Gigabit Ethernet, Wi-Fi, and 4G LTE cellular options.
- Industrial-Grade Durability: IP65-rated enclosure protects against dust and water ingress, suitable for semi-outdoor installations.
- Broad Compatibility: Integrates seamlessly with multiple network servers, including The Things Stack, ChirpStack, AWS, and features a built-in network server.
- Flexible Powering: Can be powered via a standard 9-24 VDC supply or 802.3af Power-over-Ethernet (PoE).
- Secure Communication: Supports multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMVPN for secure data transmission.
Technical Specifications
| Hardware System | |
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR4 RAM |
| Flash | 8 GB eMMC |
| LoRaWAN® | |
| Antenna | 1 × External N-Type Female Connector |
| Channel | 8 (Half/Full-duplex) |
| Frequency Band | EU868 |
| Sensitivity | -140dBm Sensitivity @SF12 |
| Output Power | Max 27dBm |
| Protocol | V1.0 Class A/Class C and V1.0.2 Class A/Class C |
| Network Interfaces | |
| Ethernet | 1 × RJ45 (10/100/1000 Mbps) with PoE support |
| Wi-Fi | IEEE 802.11b/g/n, 2.4GHz |
| Cellular | 4G LTE (Cat 1), 1 x SIM Slot |
| Power Supply | |
| Power Input | 1. DC Jack for 9-24 VDC power supply 2. 1 × 802.3af PoE input |
| Consumption | Typical 2.9W, Max 4.2W |
| Physical Characteristics | |
| Ingress Protection | IP65 |
| Dimensions | 180 x 110 x 56.5 mm |
| Mounting | Desktop, Wall, or Pole Mounting |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
