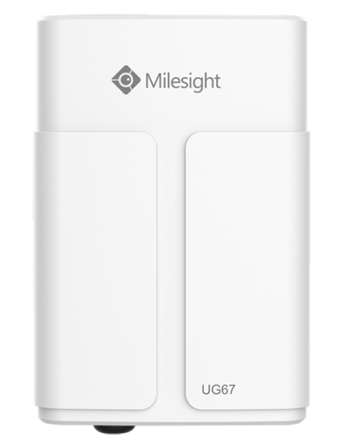

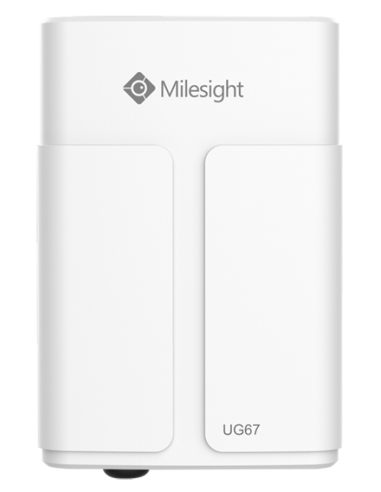

Milesight UG67 8-Channel Outdoor LoRaWAN Gateway
Pickup available at NexGen Computing
Usually ready in 24 hours
Rugged, High-Performance LoRaWAN Connectivity for Demanding Environments
The Milesight UG67 is a robust, industrial-grade 8-channel outdoor LoRaWAN gateway engineered for exceptional performance and reliability in harsh conditions. Its IP67-rated waterproof and dustproof enclosure ensures protection against the elements, making it the ideal solution for smart agriculture, smart metering, and other outdoor IoT applications. Powered by a high-performance quad-core processor and the advanced Semtech SX1302 LoRa chip, the UG67 can handle a higher volume of traffic with lower power consumption, supporting over 2000 connected nodes.
Uninterrupted and Versatile Connectivity
Experience seamless data transmission with multiple backhaul options, including Ethernet, Wi-Fi, and optional cellular (4G/3G) connectivity, ensuring your network remains online. A standout feature is the built-in supercapacitor, which provides a full minute of power to send out critical alerts in the event of a power failure. The UG67 offers flexible antenna options with integrated internal antennas and external N-Female connectors to extend signal coverage up to 15 km in line of sight.
Simplified Deployment and Management
The UG67 is designed for straightforward deployment and is compatible with mainstream network servers like The Things Industries (TTI) and ChirpStack. It also features a built-in network server and supports the Milesight IoT Cloud for easy, centralized management of your remote devices. For advanced users, the gateway includes an embedded Python SDK and Node-RED compatibility for custom development and effortless integration with other services and APIs.
| Hardware System | |
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR4 RAM |
| Flash | 8 GB eMMC |
| LoRaWAN | |
| Chipset | Semtech SX1302 |
| Frequency | 868 MHz (EU868) |
| Channels | 8 (Half/Full-duplex) |
| Max Output Power | 27 dBm |
| Sensitivity | -140dBm @292bps |
| Antenna | 2 × Internal Antennas + 2 × 50 Ω N-Female External Connectors |
| Protocol | V1.0 Class A/Class C and V1.0.2 Class A/Class B/Class C |
| Network Interfaces | |
| Ethernet | 1 × RJ45 (10/100/1000 Base-T) with PoE PD support |
| Wi-Fi | IEEE 802.11 b/g/n, 2.4GHz (AP or Client Mode) |
| Cellular (Optional) | 1 x Mini SIM (2FF) slot for 4G/3G connectivity |
| Power Supply | |
| Power Input | IEEE 802.3af PoE or 12 VDC with M12 Connector |
| Power Consumption | Typical 3.6 W, Max 4.8 W |
| Physical Characteristics | |
| Ingress Protection | IP67 |
| Dimensions | 240 x 164 x 90.9 mm |
| Mounting | Wall or Pole Mount |
| Operating Temperature | -40°C to +70°C |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
