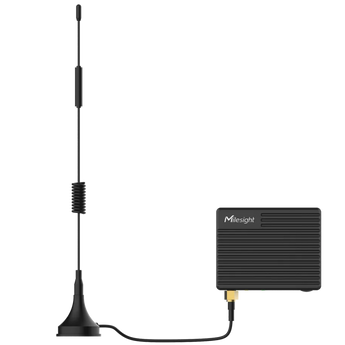

Milesight UR41L Industrial 4G LTE Cat 1 IoT Router
Pickup available at NexGen Computing
Usually ready in 24 hours
Unlock Robust IoT Connectivity with the Milesight UR41L Industrial Router
Engineered for demanding M2M and IoT applications, the Milesight UR41L is a compact yet powerful industrial 4G LTE Cat 1 router. Its rugged, IP30-rated metal enclosure and wide operating temperature range make it the ideal solution for deploying reliable connectivity in harsh environments where space is at a premium. This router is designed for seamless integration into a variety of systems, including smart metering, vending machines, robotics, and other industrial equipment.
Core Features for Uninterrupted Performance

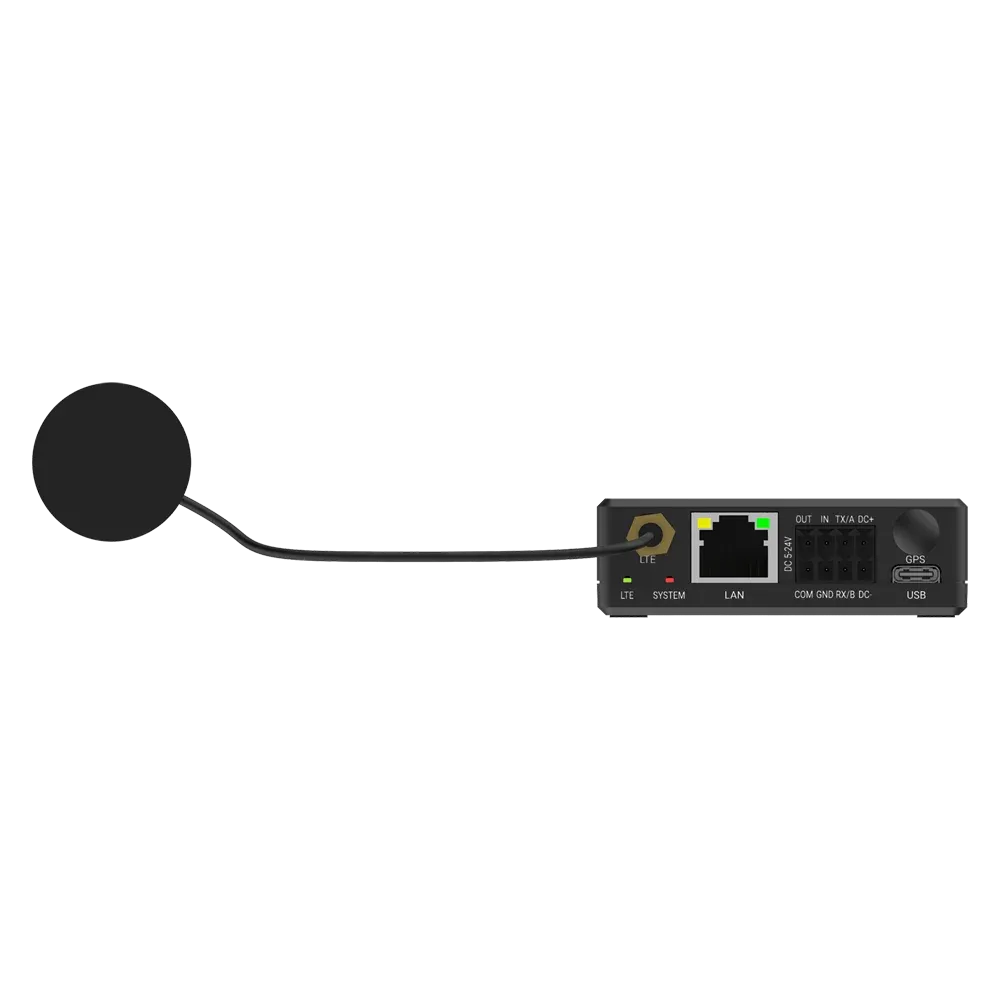

The UR41L ensures stable and secure data transmission through global 4G LTE Cat 1 networks. It features a rich interface set, including a 10/100Mbps LAN port, a software-switchable RS232/RS485 serial port for legacy device communication, and a digital input/output (DI/DO) for monitoring and control. Powered by a high-performance NXP industrial-grade processor, this router is built for reliability. Advanced features like a hardware watchdog, multiple VPN protocols (OpenVPN, IPsec, etc.), and access control lists provide maximum uptime and secure data transmission.
Designed for Efficiency and Remote Management
With an emphasis on low power consumption, the UR41L features smart operating modes, including an idle mode that consumes less than 1 watt and a standby mode to protect power sources. This makes it perfectly suited for solar or battery-powered applications. Remote management is streamlined through the Milesight DeviceHub, offering easy setup, mass configuration, and centralized control. The user-friendly web GUI, CLI, and support for SNMP and TR-069 provide flexible management options for any deployment scenario.
Technical Specifications
| Hardware System | |
| CPU | ARM Cortex-A7, 528 MHz |
| Memory | 128 MB DDR3 RAM and 128 MB Flash |
| Cellular Interface | |
| Network | 4G LTE (CAT 1) |
| SIM Slot | 1 (Nano SIM-4FF) |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| Interfaces | |
| Ethernet | 1 × 10/100 Mbps LAN Port |
| Serial Port | 1 × RS232 or 1 x RS485 (Software Switchable) |
| Digital I/O | 1 × Digital Input + 1 × Digital Output |
| USB | 1 x USB 2.0 (Type-C) for Power Supply, Network Supply and Debug |
| Software & Security | |
| Network Protocols | IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH, MQTT, TR069 |
| VPN Protocols | DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE |
| Security | SPI Firewalls, Access Control (ACL), DMZ, Port Mapping, MAC Binding, DoS & DDoS Protection, Filtering (IP & Domain) |
| Power & Physical Characteristics | |
| Power Supply | DC 5~24V with surge and reverse polarity protection; 5V/1A via USB Type-C Port |
| Power Consumption | Standby: 6.3mA@12V, Idle: 70mA@12V, Data Link: 157mA (peak)@12V |
| Operating Temperature | -40°C to +60°C (-40°F to 140°F) |
| Enclosure | IP30 Metal Housing |
| Dimensions | 22 x 70 x 55 mm (Without antenna connector) |
| Weight | 103 g |
| Mounting | Desktop, Wall, or DIN Rail |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
