Mimosa

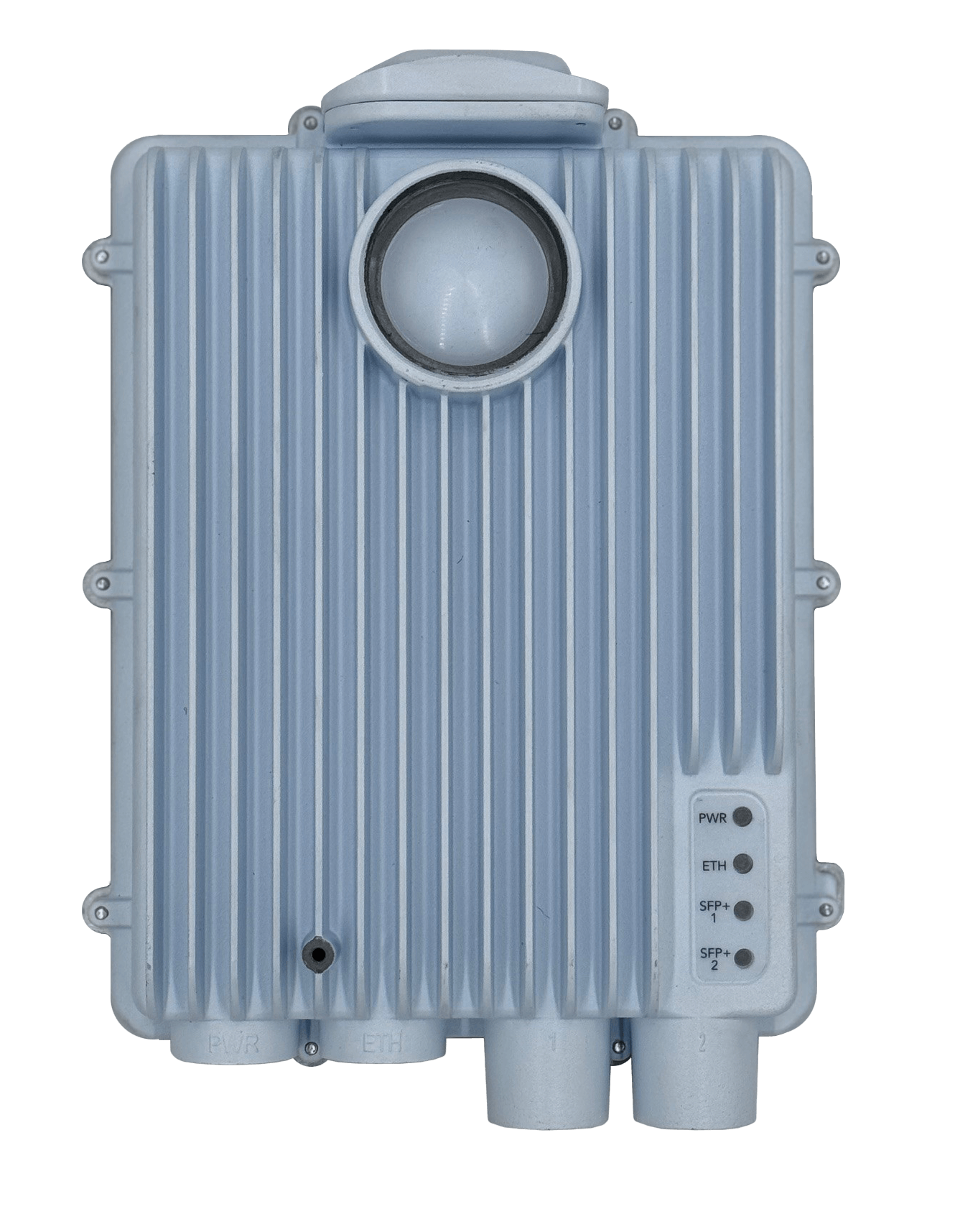

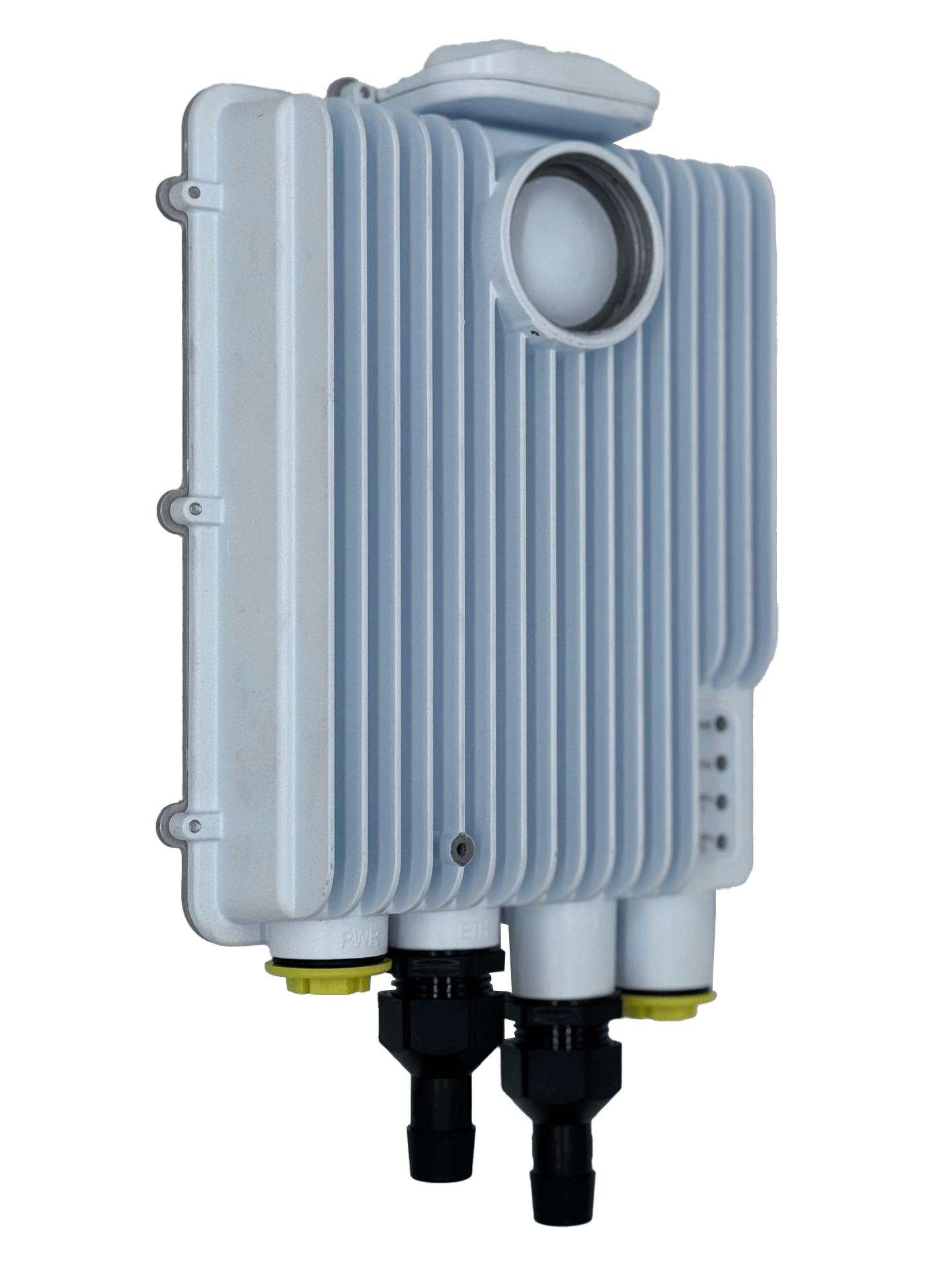

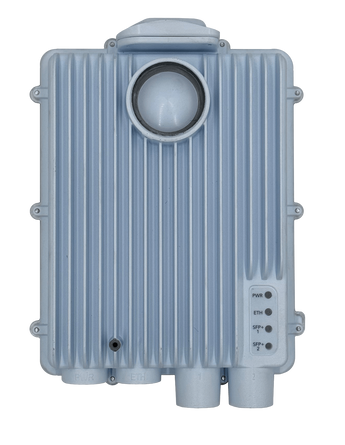

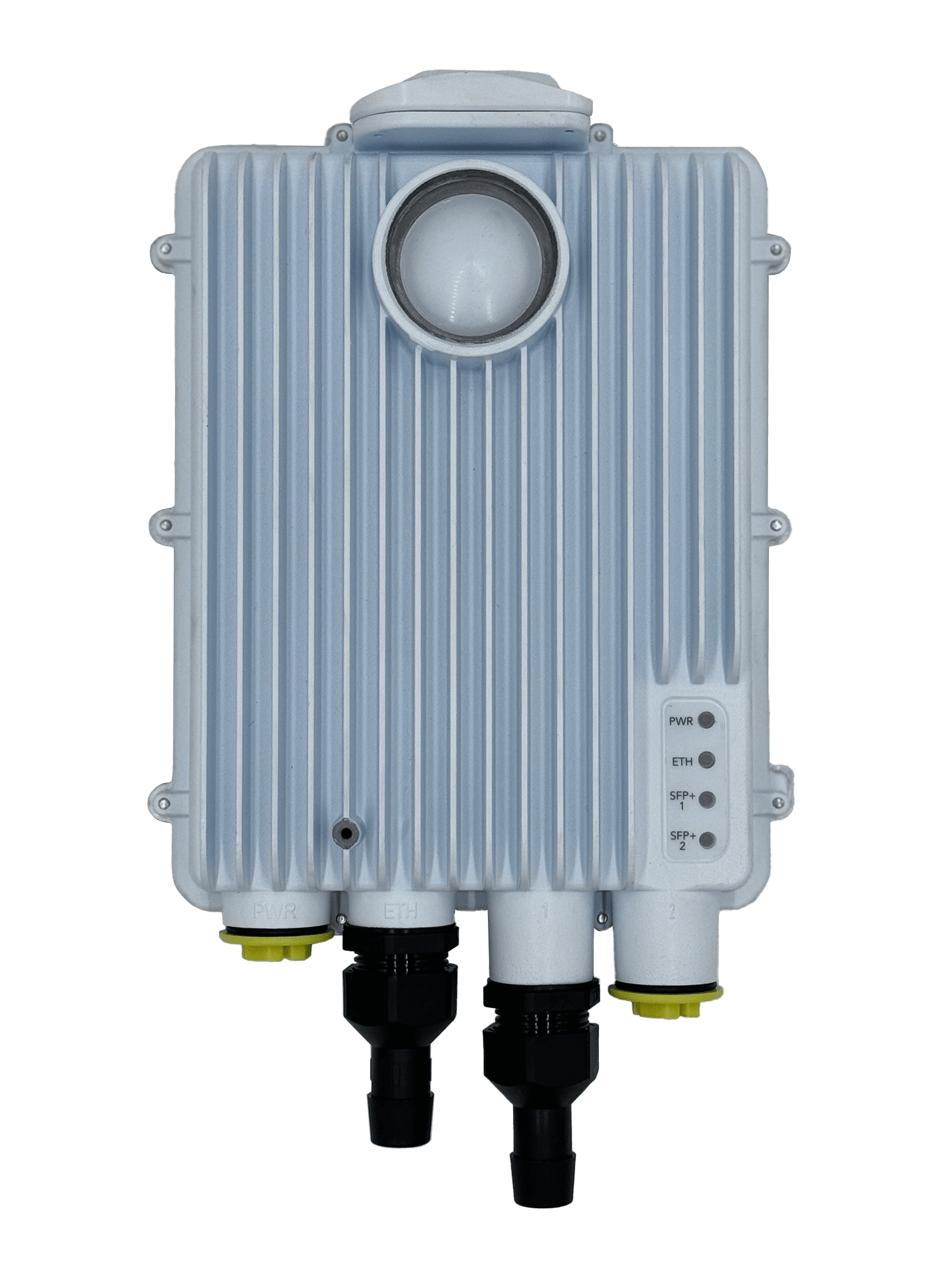

Mimosa B6x 3.0 Gbps 6 GHz PtP Backhaul Radio
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Gigabit Speeds with the Future-Ready Mimosa B6x Backhaul Radio
Experience a new era of point-to-point wireless connectivity with the Mimosa B6x. This backhaul radio is engineered for performance, delivering an incredible 3.0 Gbps of aggregate speed for your short-to-mid-range links. By leveraging the latest Wi-Fi 6E technologies and the newly available 6 GHz band, the B6x achieves exceptionally low latency and high reliability, even in congested environments. Its modular design allows for seamless integration with N5-X compatible twist-on antennas, providing ultimate flexibility for various deployment scenarios.
Engineered for Reliability and Performance
The Mimosa B6x is built to withstand the toughest conditions. Its carrier-grade, IP67-rated die-cast aluminum enclosure ensures protection against dust and water, making it a truly rugged solution for outdoor deployments. With features like 4x4 MU-MIMO and OFDMA, the B6x maximizes spectral efficiency and mitigates noise, ensuring a stable and consistent connection. The integrated GPS sync technology allows for co-location of multiple radios, enabling rapid network expansion without interference.
Key Features:
- Extreme Speed: Achieves up to 3.0 Gbps aggregate throughput for high-capacity backhaul.
- 6 GHz Spectrum: Access to the new, low-noise 6 GHz band for enhanced reliability.
- Modular Design: Compatible with N5-X series twist-on antennas for flexible gain options (12 to 30+ dBi).
- Ultra-Rugged: Carrier-grade IP67 design for harsh environmental conditions.
- Low Latency: Less than 1ms of latency in auto mode for real-time applications.
- Advanced Wireless Protocols: Supports TDMA, TDMA-FD, and Auto-TDD for efficient and reliable data transmission.
Technical Specifications
| Performance | |
| Max Throughput | Up to 3.0 Gbps IP aggregate UL/DL (3.4 Gbps PHY) |
| Wireless Protocols | TDMA, TDMA-FD, Auto-TDD |
| Low Latency | <1 ms in auto mode |
| Radio | |
| MIMO & Modulation | 4x4 MU-MIMO; OFDMA 1024QAM |
| Bandwidth | Single or dual 160 MHz channels, 320 MHz aggregate channel capacity |
| Frequency Range | 5150–6425 MHz (Restricted by country) |
| Max Output Power | 24 dBm |
| Gain | 8 dBi (native), 12–30 dBi (with antennas) |
| Power | |
| Max Power Consumption | 20 W |
| System Power Method | Passive POE compliant, 48–56 V (PoE injector not included) |
| Physical | |
| Dimensions | Height: 290 mm (11.4"), Width: 167mm (6.6”), Depth: 89mm (3.5”) |
| Weight | 1.7 kg (3.7 lbs) |
| RF Connector Type | N5-X twist-on |
| Enclosure Characteristics | Die-cast aluminum |
| Environmental | |
| IP Rating | IP67 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Interfaces | |
| Ethernet | (1) 10/100/1000-BASE-T |
| Fiber | (2) 10 Gb/s SFP+ |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
