Acconet

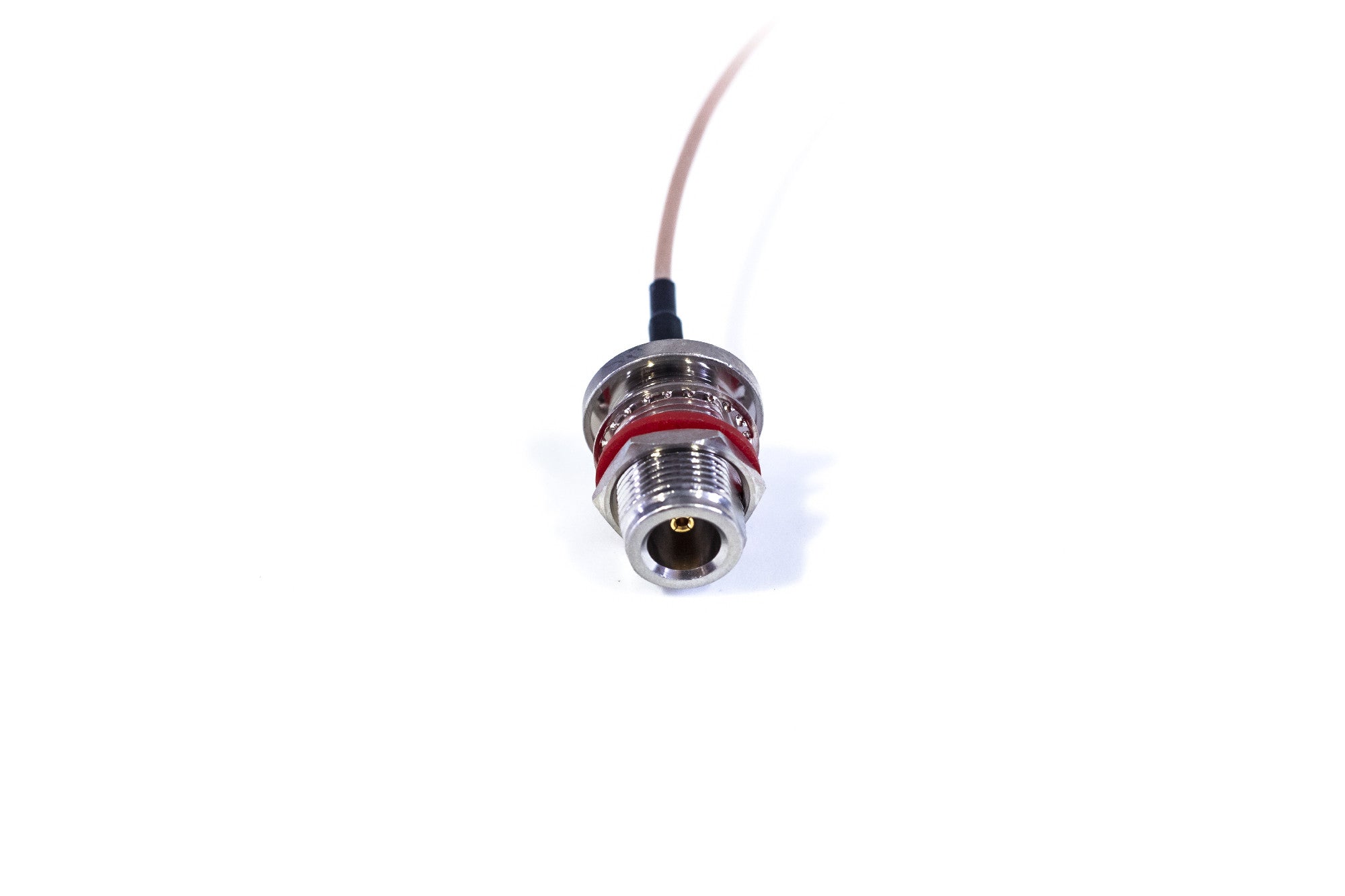

MMCX(m) 90 Deg. to N(f) Bulkhead - 300mm Pigtail, RG174
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Performance RF Connection for Demanding Applications
The Acconet 300mm Pigtail is a premium-grade adapter cable designed for robust and reliable RF signal transmission. It seamlessly connects devices with a compact MMCX interface to antennas or panels equipped with a standard N-Type female connector. The right-angle MMCX connector is specifically engineered for installations where space is limited, allowing for a secure connection with minimal clearance and streamlined cable routing. This pigtail is an ideal solution for a wide range of applications, including GPS, WLAN, cellular communications, and other wireless systems.
Engineered for Durability and Signal Integrity
This cable assembly is built to last. The MMCX connector features a snap-on coupling mechanism for quick, easy, and secure connections, rated for over 500 mating cycles. The N-Type female bulkhead connector is constructed with a nickel-plated body for corrosion resistance and includes a nut and washer for secure panel mounting. At its core, the flexible RG174 coaxial cable ensures reliable performance with its 50 Ohm impedance, tinned copper braid shielding, and a durable PVC jacket, minimizing signal loss and protecting against interference.
Technical Specifications
| General Specifications | |
|---|---|
| Product SKU | MMCX-30-N(F) |
| Brand | Acconet |
| Cable Length | 300 mm |
| Impedance | 50 Ohms |
| Frequency Range | DC to 6 GHz |
| Connector A Details | |
| Type | MMCX Male |
| Style | Right Angle (90°) |
| Coupling Mechanism | Snap-On |
| Body Material | Brass, Gold Plated |
| Connector B Details | |
| Type | N-Type Female |
| Mounting Style | Bulkhead (Panel Mount) with Nut & Washer |
| Body Material | Nickel Plated Brass |
| Center Conductor | Gold Plated Brass |
| Cable Details (RG174) | |
| Outer Diameter | ~2.79 mm |
| Inner Conductor | Stranded Bare Copper / Copper Clad Steel |
| Dielectric | Solid Polyethylene (PE) |
| Shielding | Tinned Copper Braid |
| Jacket | Black PVC |
| Operating Temperature | -40°C to +80°C |
| Nominal Capacitance | ~101 pF/m |
| Velocity of Propagation | 66% |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
