NEC

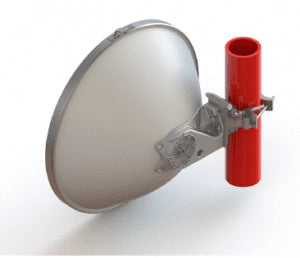

NEC iPasolink Dish Antenna - Dual Polarised. For 11GHz in 2+0 Configuration.
Pickup available at NexGen Computing
Usually ready in 24 hours
Maximize Network Capacity and Reliability with NEC's Carrier-Grade 11GHz Antenna
Engineered for excellence, the NEC iPasolink 0.6m (2ft) Dish Antenna is the definitive choice for high-performance microwave backhaul links. Designed specifically for the 11GHz licensed frequency band, this antenna provides a robust and interference-free connection, ensuring carrier-grade performance and availability for your critical network infrastructure. Its dual-polarized design allows for a 2+0 configuration, effectively doubling the capacity of your wireless link in a single, compact unit. This makes it an ideal solution for mobile network operators, internet service providers, and enterprises requiring high-speed, reliable data transmission.
Key Features:
- Dual-Polarization for 2+0 Configuration: Supports two independent data streams simultaneously, maximizing data throughput and spectral efficiency without the need for a second antenna.
- 11GHz Licensed Band Operation: Operates in the licensed 11GHz spectrum, guaranteeing exclusive access and eliminating interference from other wireless networks for superior link stability.
- Carrier-Grade Performance: Built to the highest standards to deliver the consistent, high-availability performance required for mission-critical backhaul applications.
- Seamless iPasolink Integration: Designed for direct and seamless integration with NEC's iPasolink series of outdoor radio units (ODUs), ensuring optimal performance and simplified deployment.
- Compact 0.6m (2ft) Reflector: Offers a superb balance of high gain and minimal visual impact, making it suitable for a wide range of installation scenarios.
Technical Specifications
This antenna is engineered for robust performance in demanding network environments. Below are the detailed specifications for the NEC-ANT-11G-DP60.
| General Specifications | |
|---|---|
| Brand | NEC |
| Product Series | iPasolink |
| SKU | NEC-ANT-11G-DP60 |
| Manufacturer SKU | HAEX2-11W-2B |
| RF Specifications | |
| Frequency Band | 11 GHz |
| Frequency Range | 10.7 - 11.7 GHz (Typical) |
| Polarization | Dual (Vertical and Horizontal) |
| Gain (Mid-Band) | ~34.5 dBi (Typical value, please consult official datasheet) |
| 3dB Beamwidth | ~3.5° (Typical value, please consult official datasheet) |
| Cross-Polarization Discrimination (XPD) | Specification not available |
| Front-to-Back Ratio | Specification not available |
| VSWR / Return Loss | Specification not available |
| Mechanical Specifications | |
| Diameter | 0.6 m (2 ft) |
| Radome | Included |
| Wind Survival | Specification not available |
| Mounting Interface | Direct mount for NEC iPasolink ODU |
| Dimensions & Weight (Shipping) | |
| Width | 75 cm |
| Length | 80 cm |
| Height | 33 cm |
| Weight | 12.52 kg |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
