NEC

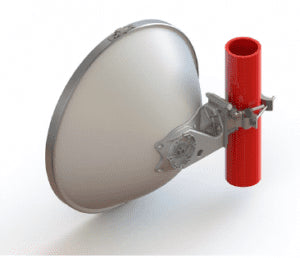

NEC iPasolink Dish Antenna - Dual Polarised. For 7- & 8GHz in 2+0 Configuration.
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Carrier-Grade Performance with the NEC iPasolink Dual-Polarized Antenna
Achieve superior network performance and unwavering reliability with the NEC iPasolink Dual-Polarised Dish Antenna, engineered for high-density microwave backhaul. Operating in the licensed 7 GHz and 8 GHz frequency bands, this antenna provides an exclusive, interference-free communication channel, ensuring your critical data links perform at maximum capacity 24/7. Its advanced dual-polarization technology allows for a 2+0 configuration, effectively doubling your link's capacity without the need for additional antennas. This makes it an ideal solution for service providers, enterprise networks, and public safety applications demanding high throughput and robust connectivity.
Engineered for Resilience and Easy Deployment
Built to withstand the toughest environmental conditions, this 2 ft (0.6m) antenna features a rugged one-piece reflector construction that ensures long-term stability and performance. The compact, low-profile design minimizes wind load and allows for flexible and straightforward installation on a wide range of mounting pipe diameters. With high-performance specifications, including excellent gain and exceptional front-to-back ratio, this NEC iPasolink antenna guarantees optimized signal strength and minimal interference, making it a dependable choice for both point-to-point and point-to-multipoint network architectures.
Technical Specifications
| General Specifications | |
|---|---|
| Brand | NEC |
| Product Type | Microwave Dish Antenna |
| Antenna Model | ValuLine® High Performance Low Profile |
| Diameter | 0.6 m | 2 ft |
| Polarization | Dual |
| Reflector Construction | One-piece reflector |
| Electrical Specifications | |
| Operating Frequency Band | 7.100 – 8.500 GHz |
| Gain (Low / Mid / Top Band) | 29.6 dBi / 31.1 dBi / 31.8 dBi |
| Beamwidth (Horizontal & Vertical) | 4.7° |
| Cross-Polarization Discrimination (XPD) | 32 dB |
| Front-to-Back Ratio | 57 dB |
| VSWR (Max) | 1.3 |
| Return Loss | 17.7 dB |
| Electrical Compliance | ETSI 302 217 Class 3 |
| Mechanical Specifications | |
| Wind Velocity, Operational | 110 km/h | 68 mph |
| Wind Velocity, Survival | 250 km/h | 155 mph |
| Mounting Pipe Diameter | 48 mm – 115 mm | 1.9 in – 4.5 in |
| Fine Azimuth Adjustment | ±15° |
| Fine Elevation Adjustment | ±15° |
| Net Weight | 14 kg | 31 lb |
| Axial Force (FA) at Survival Wind | 1066 N | 240 lbf |
| Side Force (FS) at Survival Wind | 496 N | 112 lbf |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
