NEC

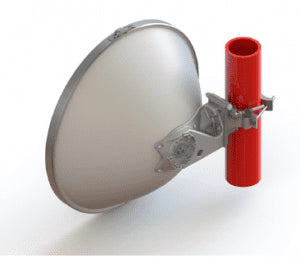

NEC iPasolink Dish Antenna - Single Polarised. For 7- & 8GHz in 1+0 Configuration.
Pickup available at NexGen Computing
Usually ready in 24 hours
Product Overview
Engineered for excellence by NEC, this 0.6m (2 ft) single-polarized dish antenna is optimized for carrier-grade point-to-point microwave links in the 7 GHz and 8 GHz frequency bands. Designed for seamless integration with NEC's iPasolink series outdoor radio units, it provides a robust and reliable solution for 1+0 configurations. This antenna is the ideal choice for telecommunication carriers, internet service providers, and enterprises requiring high-throughput, interference-free backhaul connections. Its durable construction ensures stable performance in demanding weather conditions, making it a dependable component for critical network infrastructure.
Key Features
- Dual-Band Performance: Optimized for operation across both 7 GHz and 8 GHz frequency ranges, offering flexibility in spectrum planning.
- High Gain & Directivity: The 0.6m reflector provides high gain and a narrow beamwidth, ensuring signals are precisely focused for long-distance links and minimal interference.
- Single Polarization (SP): Ideal for simple, non-complex 1+0 deployments, providing a cost-effective and efficient link.
- Carrier-Grade Construction: Built to withstand harsh environmental conditions, ensuring link stability and longevity.
- Seamless NEC Integration: Designed for direct mounting with NEC iPasolink outdoor units (ODUs), ensuring a perfect fit and optimal performance.
Technical Specifications
The following specifications are representative of a typical high-performance antenna of this class.
| Electrical Specifications | |
| Frequency Range | 7.125 – 8.500 GHz |
| Gain, Low Band | 34.8 dBi (Typical) |
| Gain, Mid Band | 35.5 dBi (Typical) |
| Gain, High Band | 36.2 dBi (Typical) |
| Polarization | Single (Vertical or Horizontal) |
| Beamwidth, 3dB | 3.1° (Typical) |
| Cross-Polar Discrimination (XPD) | 30 dB (Typical) |
| Front-to-Back Ratio (F/B) | 61 dB (Typical) |
| VSWR (Max) | 1.3 |
| Mechanical Specifications | |
| Diameter | 0.6 m (2.0 ft) |
| Antenna Color | White |
| Radome | Included, UV-Resistant Polymer |
| Wind Velocity, Operational | 180 km/h (112 mph) |
| Wind Velocity, Survival | 250 km/h (155 mph) |
| Mounting Pipe Diameter | 50 mm to 120 mm (2.0 in to 4.7 in) |
| Net Weight | 8.1 kg (17.9 lbs) |
| Radio Interface | Direct Mount for NEC ODU |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
