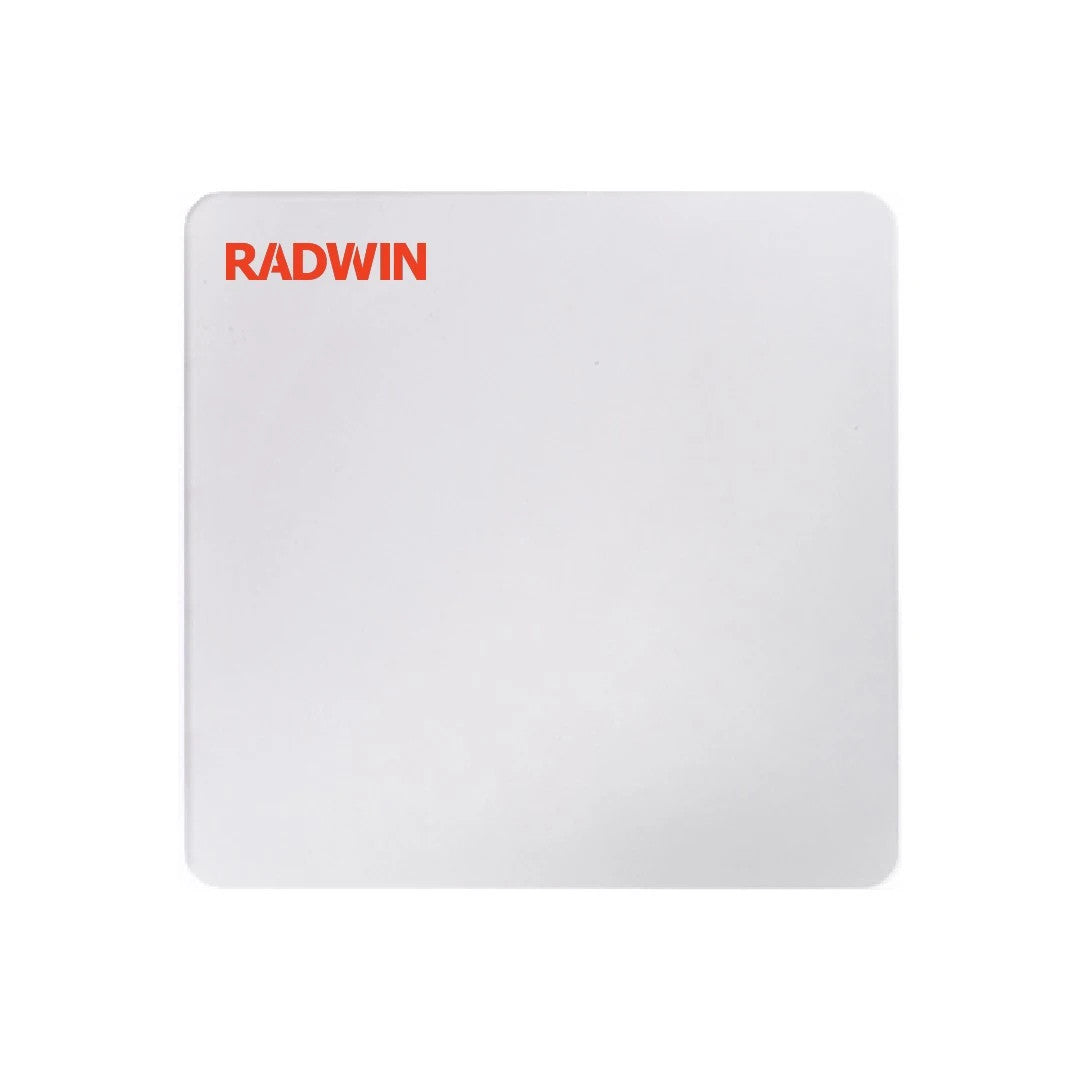

RADWIN 2000 Alpha 5GHz 500Mbps Point-to-Point Radio with Integrated Antenna
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Capacity, Carrier-Class Wireless Connectivity
Experience robust, high-performance wireless backhaul with the RADWIN 2000 Alpha 5GHz ODU. This carrier-class radio is engineered for demanding applications, delivering up to 500 Mbps of net aggregate throughput for enterprise access, video surveillance backhaul, and seamless building-to-building connectivity. Its advanced OFDM and MIMO technologies ensure reliable operation even in near-line-of-sight (nLOS) and dense radio environments.
Engineered for Reliability and Performance
The RADWIN 2000 Alpha is built to withstand harsh conditions, featuring a rugged IP67-rated enclosure for total protection against dust and water immersion. With a wide operational frequency range from 4.9 to 6.0 GHz, this unit offers deployment flexibility. Key features include a built-in GPS for TDD synchronization, which maximizes capacity by enabling the co-location of multiple radios, and support for AES 256 encryption to keep your data secure. The integrated high-gain antenna simplifies installation, making it an efficient and powerful solution for your network infrastructure.
Key Features
- Up to 500 Mbps Net Aggregate Throughput: High capacity for data-intensive applications.
- 4.9 - 6.0 GHz Frequency Band: Provides flexibility in spectrum planning.
- Integrated High-Gain Antenna: Simplifies deployment and reduces installation complexity.
- Telco-Grade Robustness: IP67 rating ensures durability in extreme weather conditions.
- Built-in GPS Synchronization: Supports intra-site and inter-site TDD synchronization to maximize capacity and reduce interference.
- Advanced MIMO-OFDM Technology: Delivers reliable performance in congested spectrums and challenging nLOS/NLOS conditions.
- Secure Communication: Supports AES 128/256 encryption for secure over-the-air transmission.
Technical Specifications
| Category | Specification |
|---|---|
| Configuration | Outdoor Unit with Integrated Antenna |
| Radio Technology | |
| Max Capacity | 500 Mbps net aggregate throughput |
| Range | Up to 40 km / 25 miles |
| Frequency Band | 4.9 – 6.0 GHz |
| Channel Bandwidth | Configurable: 10, 20, 40, 80 MHz |
| Modulation | MIMO-OFDM (BPSK/QPSK/16QAM/64QAM/256QAM) |
| Duplex Technology | TDD, with configurable uplink/downlink allocation |
| Encryption | AES 128/256 |
| Antenna | |
| Type | Integrated Panel Antenna |
| Gain | 21-22 dBi (Varies by specific model in series) |
| Polarization | Dual Linear |
| Physical & Environmental | |
| ODU Dimensions (WxHxD) | 19.5 x 12.5 x 4.0 cm (approximate) |
| ODU Weight | 0.5 kg / 1.10 lbs (approximate) |
| Operating Temperature | -35°C to 60°C / -31°F to 140°F |
| Humidity | 100% condensing |
| Environmental Protection | IP67 |
| Power | |
| Power Consumption | <13W |
| PoE to ODU Interface | Outdoor CAT-5e; 10/100/1000BaseT |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
