Siklu

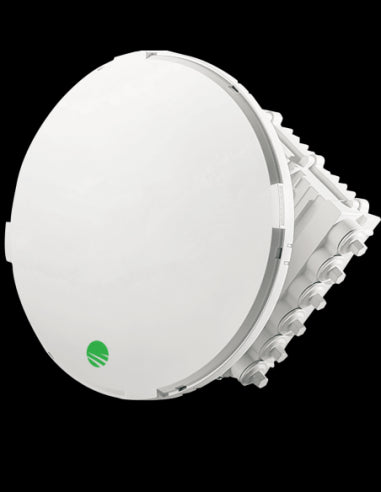

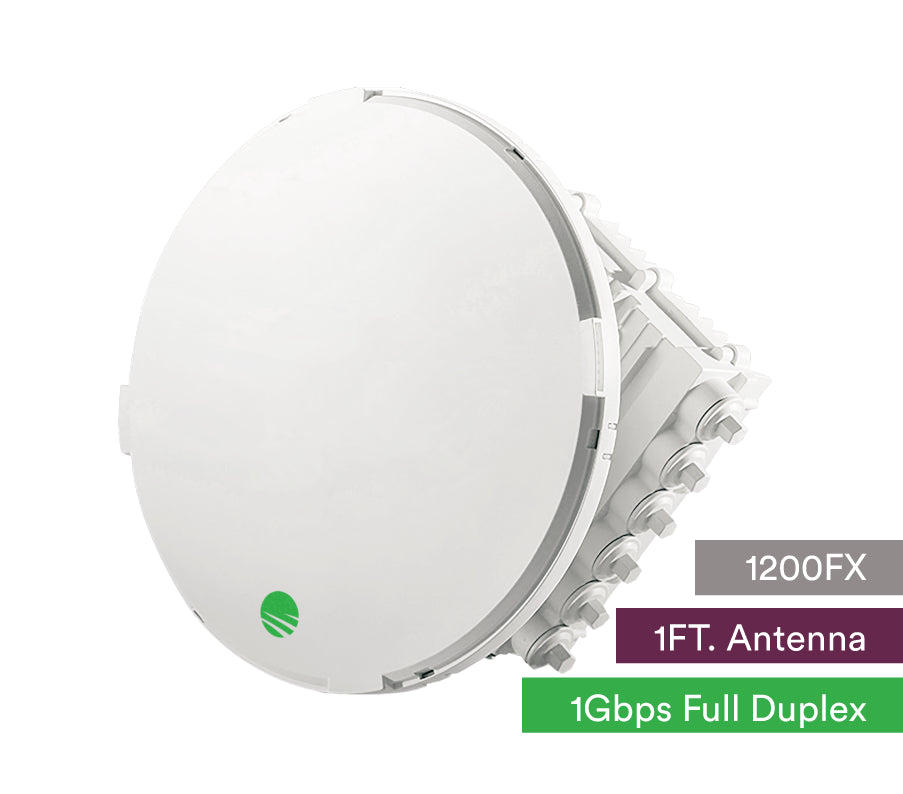

Siklu EtherHaul-1200FX 1Gbps Full-Duplex E-Band PTP Radio with 1ft Antenna
Pickup available at NexGen Computing
Usually ready in 24 hours
Gigabit Throughput in the Interference-Free E-Band
Achieve fiber-like performance and reliability with the Siklu EtherHaul-1200FX Point-to-Point (PTP) link. This carrier-grade radio delivers 1Gbps full-duplex throughput, making it an ideal solution for business broadband, mobile backhaul, campus connectivity, and video surveillance networks. Operating in the licensed, uncongested 71-76/81-86GHz E-band spectrum, the EH-1200FX ensures an interference-free connection with high availability. The system is engineered with Siklu's advanced all-silicon technology, which reduces components, increases reliability to a 90-year MTBF, and significantly lowers costs.
Carrier-Grade Performance and Reliability
The EtherHaul-1200FX is designed for mission-critical applications, featuring Hitless Adaptive Bandwidth, Coding, and Modulation (ABCM). This technology boosts the system gain by up to 25dB, ensuring reliable performance in all weather conditions. With 8 levels of user-configurable QoS, you can prioritize traffic to guarantee service level agreements (SLAs). The integrated L2 switch and extra ports support resilient network topologies like ring or daisy-chain without requiring additional hardware. Sub-millisecond latency makes it perfect for delay-sensitive applications.
Easy Deployment and Management
This kit includes a 1ft, 43dBi antenna, optimized for a balance of range and footprint. The radio's compact, all-outdoor IP67-rated design makes site acquisition and installation quick and easy. Management is streamlined with an intuitive web GUI for one-click configuration of local and remote units, alongside an embedded CLI, SNMPv2/3, and zero-touch turn-up capabilities.
Key Features
- 1Gbps Full-Duplex Throughput: Future-proof capacity for demanding networks.
- 71-76/81-86GHz E-Band: Operates in a licensed, uncongested spectrum for interference-free links.
- Hitless Adaptive Modulation: Maintains link stability with a 25dB dynamic range for high availability.
- 1ft High-Gain Antenna: 43dBi pencil-beam antenna ensures spectrum is available anywhere and maximizes reuse.
- Advanced Networking: Features include an integrated L2 switch, 8-level QoS, VLAN stacking, and support for G.8032 ERPS for resilient topologies.
- Robust and Compact: The all-outdoor unit is IP67 rated for harsh environments.
- Low Latency: Fiber-like performance suitable for sensitive applications.
- Power over Ethernet: Powered by PoE+ (IEEE 802.3at) for simplified installation.
Comprehensive Specifications
| Category | Specification |
|---|---|
| Frequency | 71-76 GHz / 81-86 GHz |
| Duplexing Scheme | FDD (Frequency Division Duplex) |
| Throughput | 1000 Mbps, Full Duplex |
| Modulation | QPSK to QAM64 |
| Adaptive Rate | Hitless adaptive bandwidth, coding, and modulation (25dB system gain) |
| Link Budget | 182dB (with included 1ft antenna gain, BER=10-6) |
| Interfaces | 4x GbE ports: 2x Copper (1000BaseT) + 2x SFP (1000BaseX) |
| Antenna | External 1ft (31cm), 43dBi Gain |
| Ethernet Features | IEEE 802.1d transparent bridging, VLAN & VLAN stacking (4K VLANs), MEF 9, 14, 21 compliant, Link Aggregation (LAG/LACP), G.8032 ERPS, 16KB Jumbo Frames, 8-level H-QoS |
| Management | In-band, out-of-band Web GUI & Embedded CLI, SNMPv2/3, RADIUS, TACACS+, Zero-touch turn up |
| Encryption | Optional AES 128-bit and 256-bit |
| Power | PoE+ (IEEE 802.3at compliant) |
| Environmental | Operating Temperature: -45°C to +55°C (-49°F to +131°F), Ingress Protection: IP67 |
| Dimensions (ODU + 1ft Antenna) | Diameter: 31cm (12.2"), Depth: 13cm (4.3") |
| Weight (ODU + 1ft Antenna) | 4.5 kg (9.9 lbs) |
| Regulatory | ETSI EN 302 217, FCC 47 CFR Part 101, CE, EMC, UL60950 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
