Teltonika
Teltonika TSW010 5-Port Unmanaged Industrial Ethernet Switch
Pickup available at NexGen Computing
Usually ready in 24 hours
Robust, Reliable Network Expansion for Industrial Applications

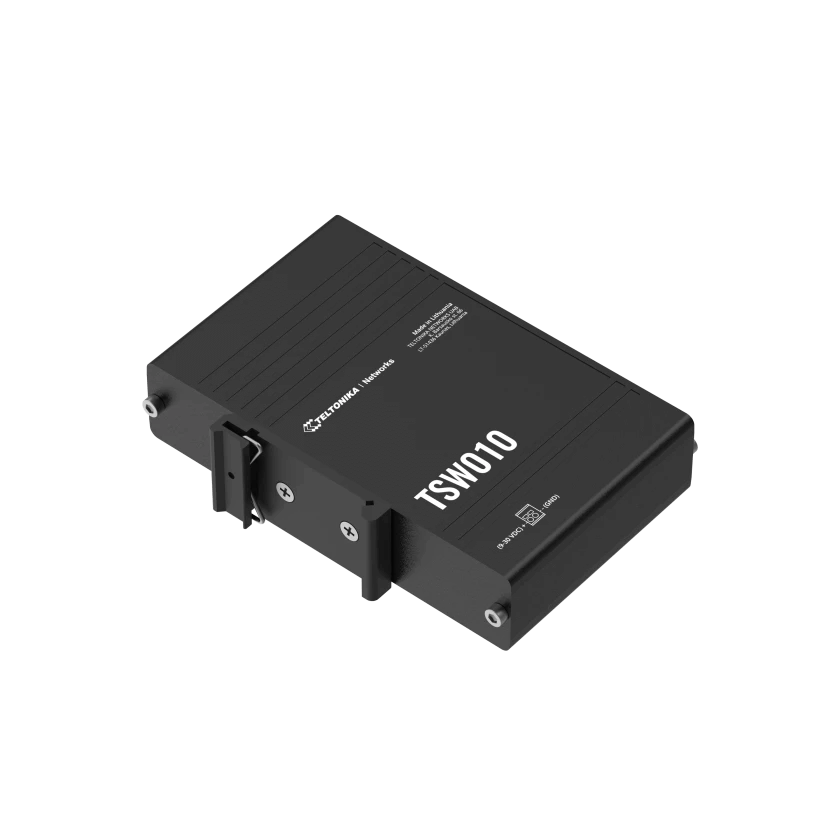

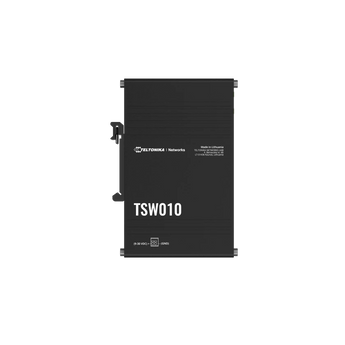

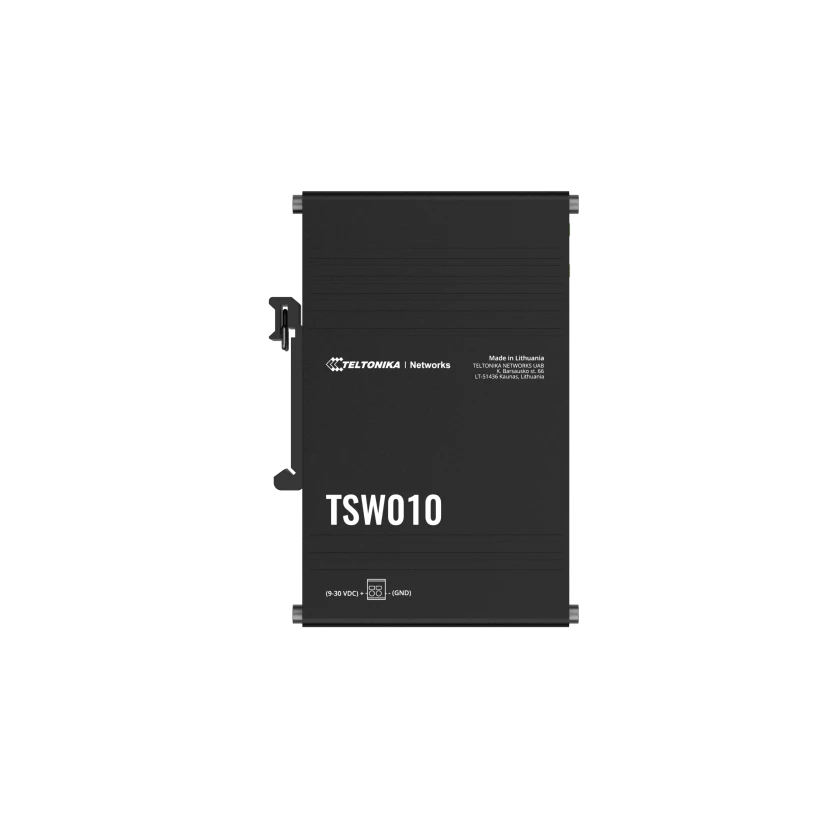

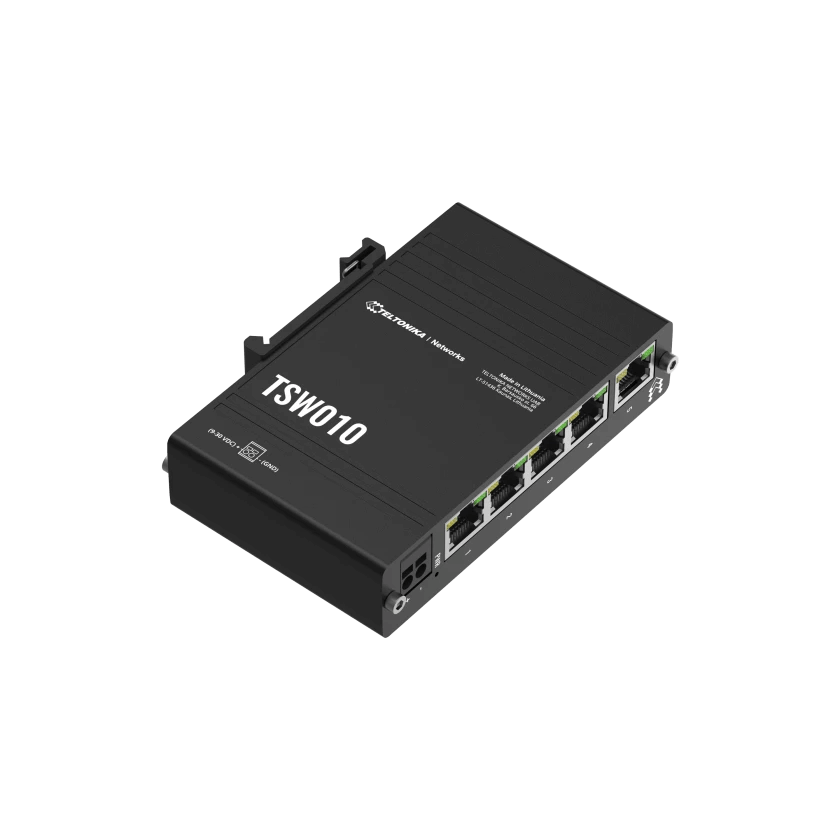

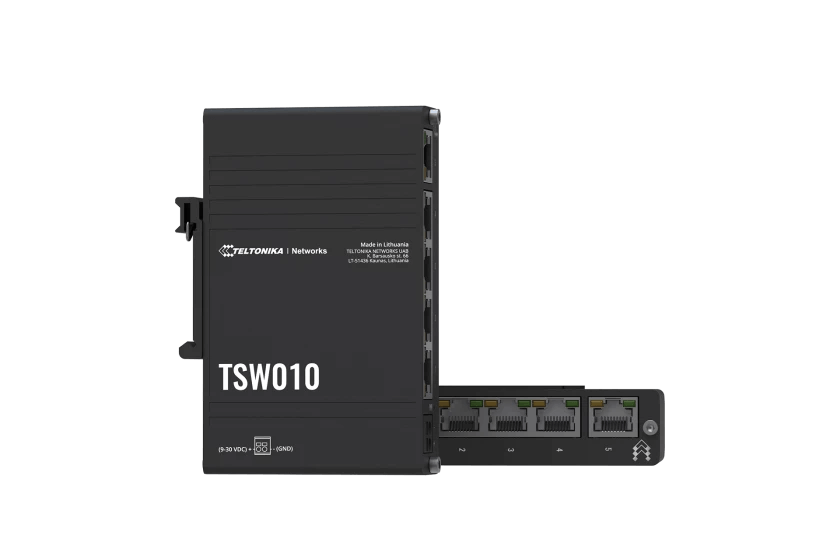

The Teltonika TSW010 is a compact and rugged unmanaged industrial Ethernet switch designed for simplicity and durability. It provides a cost-effective and straightforward solution for extending network connectivity to multiple Ethernet devices in demanding environments. With its plug-and-play design, no configuration is required, making setup effortless. Encased in a durable anodized aluminum housing, the TSW010 is built to withstand harsh conditions, making it the perfect choice for a wide range of industrial and professional applications.
Engineered for Efficiency and Versatility
Featuring five 10/100 Mbps Ethernet ports, the TSW010 ensures stable and reliable connectivity for applications where high throughput is not a primary requirement. It is one of the most energy-efficient switches from Teltonika, with a maximum power consumption of just 0.9 W. The switch supports a wide power supply voltage range of 9-30 VDC and includes an integrated DIN rail bracket for easy installation in control cabinets and other industrial settings. Its compact size and flexible mounting options make it suitable for a variety of installations.
Key Features:
- Plug-and-Play: No configuration needed for immediate, hassle-free use.
- 5 Fast Ethernet Ports: Equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.
- Industrial-Grade Durability: Housed in a rugged, anodized aluminum casing with an IP30 rating.
- Flexible Mounting: Features an integrated DIN rail bracket and options for surface mounting.
- Wide Temperature Range: Operates reliably in extreme temperatures from -40 °C to 75 °C.
- Low Power Consumption: Extremely efficient with power consumption as low as 0.3 W at idle.
- Broad Voltage Support: Compatible with a wide input voltage range of 9-30 VDC.
Technical Specifications
| Ethernet | |
| LAN Ports | 5 x RJ45 ports, 10/100 Mbps |
| Standards Compliance | IEEE 802.3i, 802.3u, 802.3x, 802.3az |
| Bandwidth (Non-blocking) | 1 Gbps |
| MAC Address Table Size | 2K entries |
| Processing Type | Store and Forward |
| Power | |
| Connector | 2-pin industrial DC power socket |
| Input Voltage Range | 9 - 30 VDC |
| Power Consumption | Idle: 0.3 W / Max: 0.9 W |
| Passive PoE | Yes, via ETH1 port (Mode B, 9-30 VDC), not compatible with IEEE 802.3af/at/bt |
| Physical Interfaces | |
| Ethernet | 5 x RJ45 ports, 10/100 Mbps |

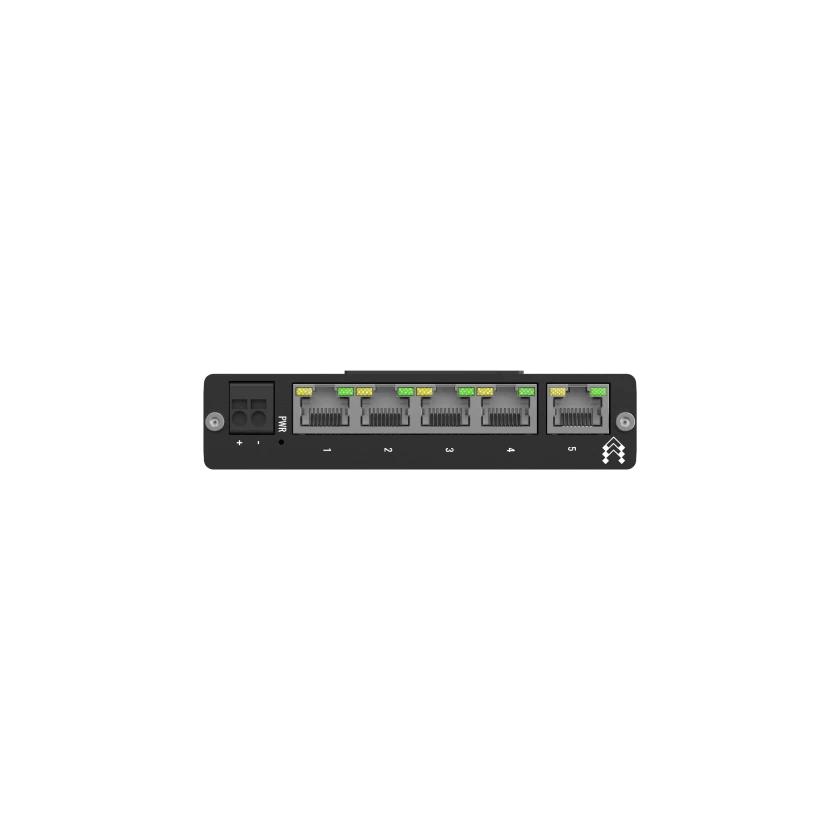

| Status LEDs | 1 x Power LED, 10 x LAN status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Grounding | 1 x Grounding screw |
| Mechanical & Environmental | |
| Casing Material | Anodized aluminum housing |
| Dimensions (W x H x D) | 113.1 x 27.4 x 80.5 mm |
| Weight | 146.5 g |
| Mounting Options | Integrated DIN rail bracket, surface placement, wall mounting (requires additional kit) |
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
