Teltonika TSW210 Industrial Unmanaged 8-Port Gigabit Ethernet Switch with 2 SFP Ports
Pickup available at NexGen Computing
Usually ready in 24 hours
Rugged, High-Performance Connectivity for Demanding Environments
The Teltonika TSW210 is an industrial unmanaged switch designed to be the backbone of your network in harsh conditions. It offers a powerful combination of high-speed Gigabit Ethernet and long-range fiber optic capability, making it the perfect plug-and-play solution for centralizing your resources without complex configuration. Encased in a durable, full aluminum housing, the TSW210 is built to withstand extreme temperatures and challenging industrial settings.
Seamless Integration and Flexible Installation

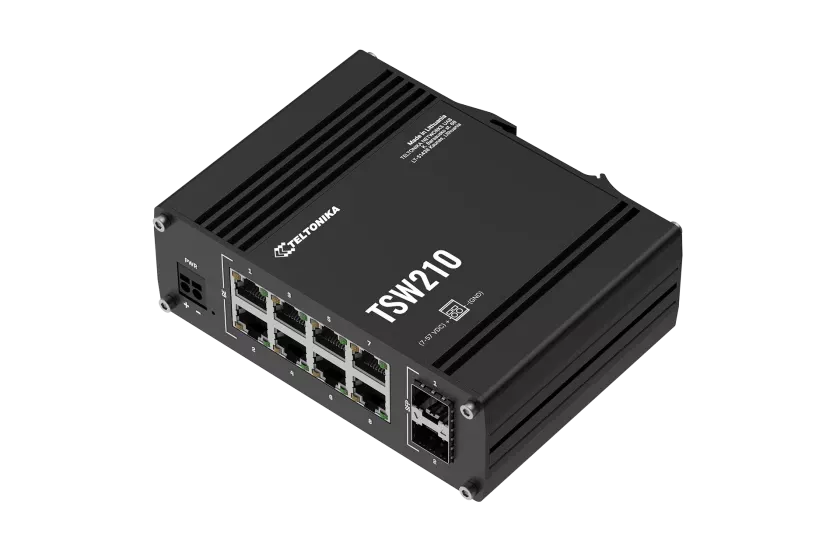

Equipped with 8 Gigabit Ethernet ports, the TSW210 allows for easy connection to multiple devices, delivering speeds up to 1000 Mbps for rapid data transfer. For connections over longer distances, the two SFP ports provide reliable, high-speed fiber optic communication, ensuring network integrity and reach. The switch's design supports versatile mounting options, including DIN rail and surface mounting, making it adaptable to any industrial layout. Its rugged construction and IP30 ingress protection rating ensure dependable operation in a wide range of environments.
Engineered for Industrial Reliability
The TSW210 is engineered for non-stop performance with a non-blocking bandwidth of 20 Gbps, a 2K MAC address table, and support for 9216-byte jumbo frames to handle large data packets efficiently. It operates on a wide input voltage range of 7-57 VDC and features low power consumption, making it an energy-efficient choice for 24/7 operations. With its robust build and high-performance specifications, the TSW210 is the ideal switch for manufacturing plants, data centers, and any professional application demanding a reliable, high-bandwidth network connection.
Comprehensive Specifications Table
| Feature | Specification |
|---|---|
| Ethernet | |
| LAN Ports | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fiber Ports | 2 x SFP ports |
| IEEE Standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Auto MDI/MDIX | Supported |
| Performance | |
| Bandwidth (Non-blocking) | 20 Gbps |
| Packet Buffer | 128 KB |
| MAC Address Table | 2K entries |
| Jumbo Frame Support | 9216 bytes |
| Power | |
| Power Connector | 2-pin industrial DC power socket |
| Input Voltage Range | 7 - 57 VDC |
| Power Consumption | Idle: ~1.03 W / Max: 3.71 W |
| Physical Interfaces | |
| Status LEDs | 1 x Power, 16 x LAN status, 2 x SFP status |
| Grounding | 1 x Grounding screw |
| Physical Specification | |
| Casing Material | Full aluminum housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 500 g |

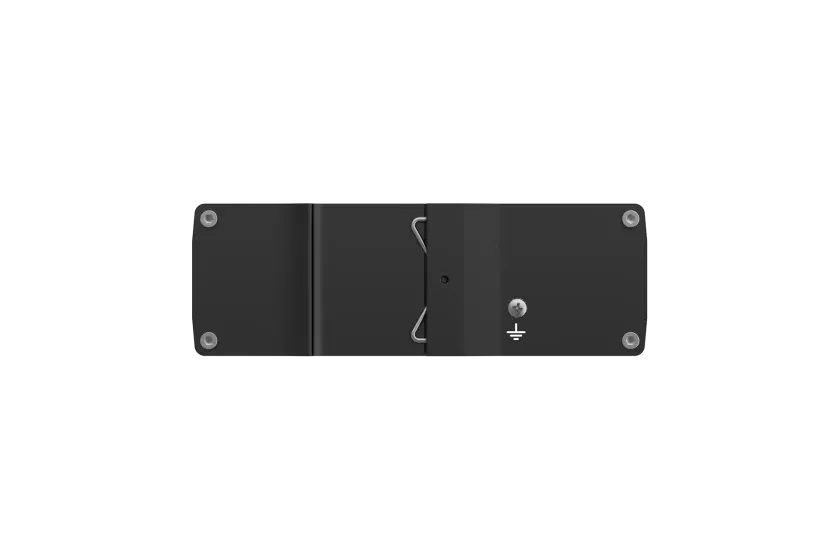

| Mounting Options | DIN rail or wall mounting (additional kit may be required), flat surface placement |
| Operating Environment | |
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
