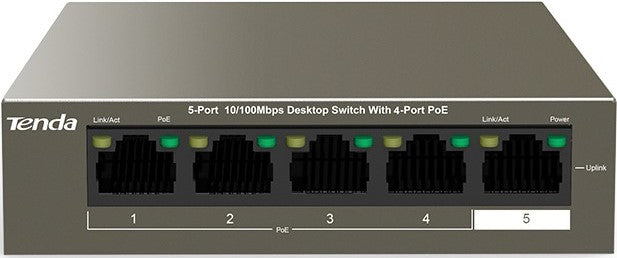

Introducing the TEF1105P-4-63W, a compact 5-port PoE switch from Tenda designed for small offices and private network deployments. It offers 5 x 10/100 Mbps Base-TX ports, with 4 PoE-enabled ports (Ports 1-4) that support IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) to power IP cameras, VoIP phones, and wireless access points directly from the switch. Port 5 remains a non-PoE uplink/connection port for flexible networking.

With a total PoE budget of 63W, this switch simplifies power distribution by allowing multiple PoE devices to operate from a single, centralized power source. It also supports longer transmission distances, up to 250 meters, giving you more placement freedom for devices and cameras. Built-in 6 kV lightning protection helps guard connected equipment from surges and electrical disturbances, making it a robust choice for diverse environments.

Key Features

• 5 x 10/100 Mbps RJ45 ports (4 PoE-enabled ports, Ports 1-4)
• IEEE 802.3af and IEEE 802.3at PoE standards supported on ports 1-4
• 63W PoE budget for powering multiple PoE devices
• Up to 250 m distance for Ethernet transmission
• 6 kV surge protection to protect against lightning and power spikes
• Ideal for private monitoring and small office deployments needing centralized PoE power

Technical Specifications

• Model: TEF1105P-4-63W
• Ports: 5 x 10/100 Mbps RJ45 (Ports 1-4 PoE, Port 5 non-PoE)
• PoE Standards: IEEE 802.3af (PoE) and IEEE 802.3at (PoE+)
• PoE Budget: 63W
• Max Transmission Distance: Up to 250 meters
• Protection: 6 kV surge protection
• Applications: Private monitoring networks, small offices, and PoE-powered devices
