Tenda

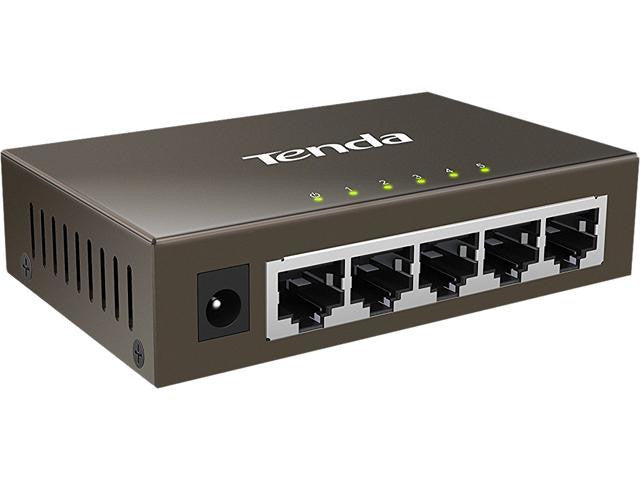

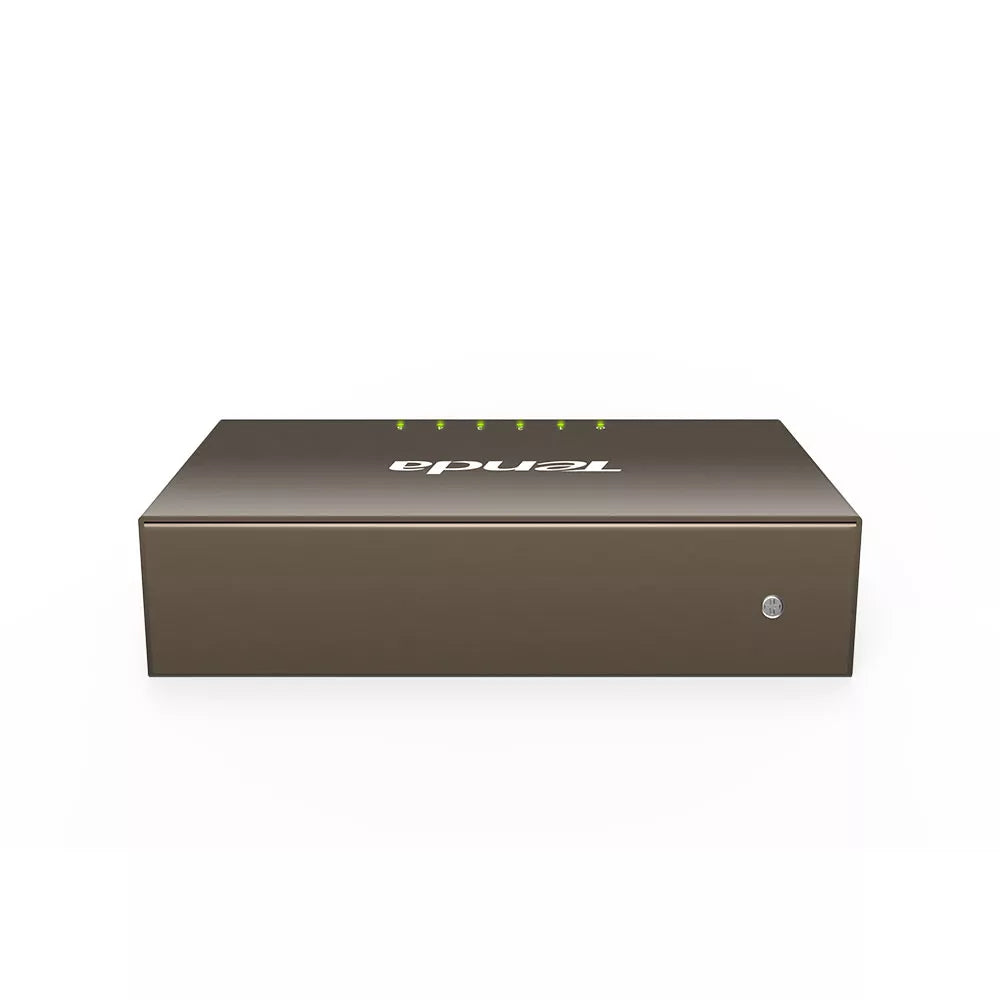

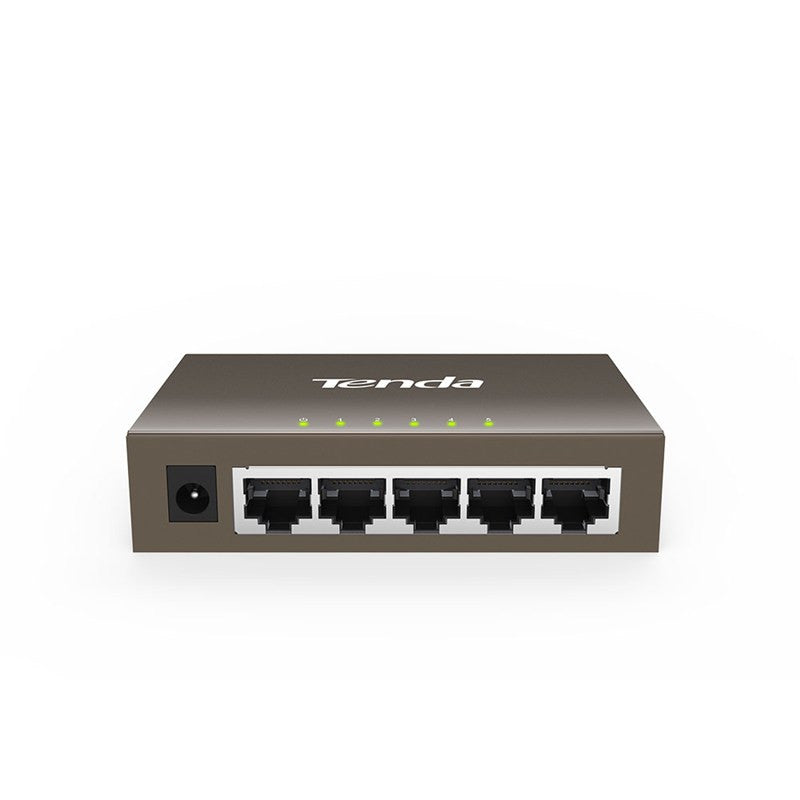

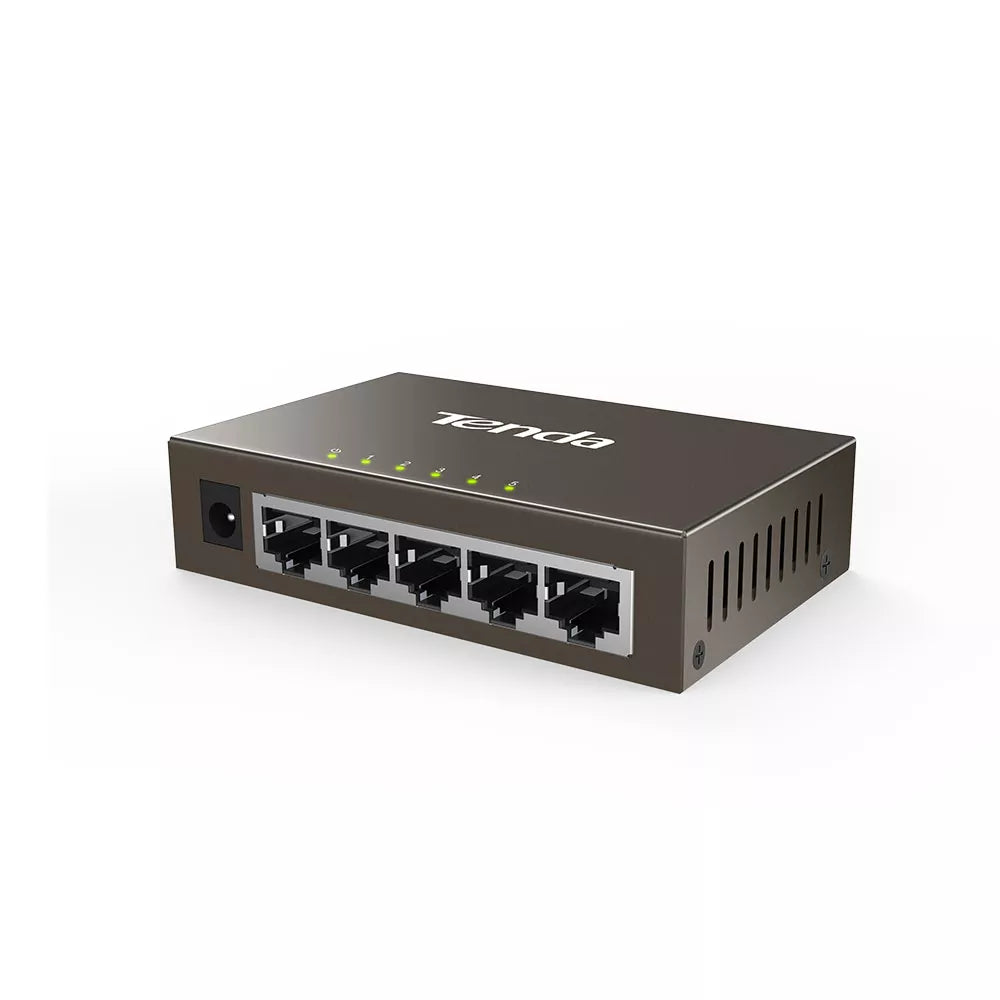

Tenda TEG1005D 5-Port Gigabit Ethernet Desktop Switch
Pickup available at NexGen Computing
Usually ready in 24 hours
Upgrade Your Network to Gigabit Speeds
Experience a significant boost in your network's performance with the Tenda TEG1005D 5-Port Gigabit Desktop Switch. This unmanaged switch is the perfect solution for expanding your home or small office network, offering five 10/100/1000Mbps auto-negotiation RJ45 ports for reliable, high-speed wired connections. Enjoy seamless gaming, smooth video streaming, and rapid file transfers with speeds of up to 2000Mbps in full-duplex mode. Its plug-and-play design ensures a hassle-free setup without any need for configuration.
Robust and Reliable Performance
Engineered for durability and stable operation, the TEG1005D features a sturdy metal housing made from 0.8 mm galvanized industrial-grade steel plates. This design not only ensures a long service life but also provides excellent heat dissipation for reliable performance. For added protection, the switch is equipped with 6KV lightning protection for each port, safeguarding your network from power surges and ensuring the stability of your system, making it an ideal choice for security surveillance applications.
Advanced Features for Enhanced Efficiency
The Tenda TEG1005D is packed with features to optimize your network traffic. It supports a 15K jumbo frame, which accelerates the transmission of large files and significantly improves efficiency. The switch also supports IGMP Snooping, which enhances the multicast traffic for a better experience with services like IPTV. With a 10Gbps switching capacity and a 2K MAC address table, this desktop switch can handle high-bandwidth demands with ease. The user-friendly design includes front-panel LEDs for intuitive monitoring of network status.
Comprehensive Specifications
| Hardware Features | |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| Interface | 5 x 10/100/1000M auto-negotiation RJ45 ports (Auto MDI/MDIX) |
| Transmission Media | 10Base-T: Cat. 3 UTP or better, 100Base-TX: Cat.5 UTP or better, 1000Base-T: Cat.5e UTP or better |
| Forwarding Speed | 10Mbps: 14880pps, 100Mbps: 148800pps, 1000Mbps: 1488000pps |
| Power Supply | Input: AC:100-240V; 50/60Hz, Output: 5.0V 0.6A (External Power Adapter) |
| Dimensions (L*W*H) | 100mm x 64mm x 23mm |
| LEDs | 1 x Power, 5 x Link/Act |
| Switching Capacity | 10Gbps |
| MAC Address Table | 2K |
| Power Consumption | Maximum: 2.5W (220V) |
| Lightning Protection | 6KV for ports |
| Software Features | |
| Transfer Method | Store and Forward |
| Access Control | CDMA/CD |
| MAC Address Learning | Automatic update |
| Jumbo Frame | 15K |
| Others | |
| Operating Temperature | 0℃~40℃ |
| Storage Temperature | -40℃~70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Certification | CE, FCC, RoHS |
| Package Contents | 5-Port Gigabit Ethernet Switch, Power Adapter (5V 0.6A), Quick Installation Guide |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
