TP-Link

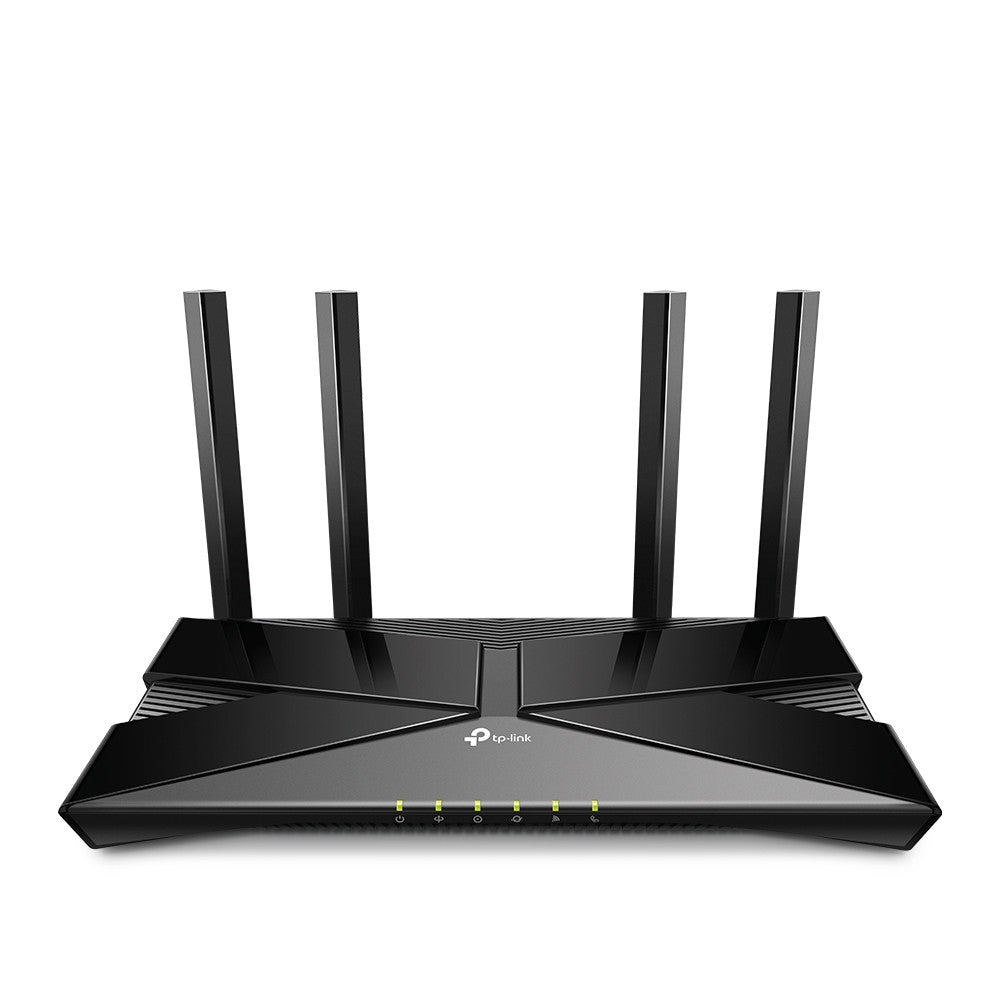

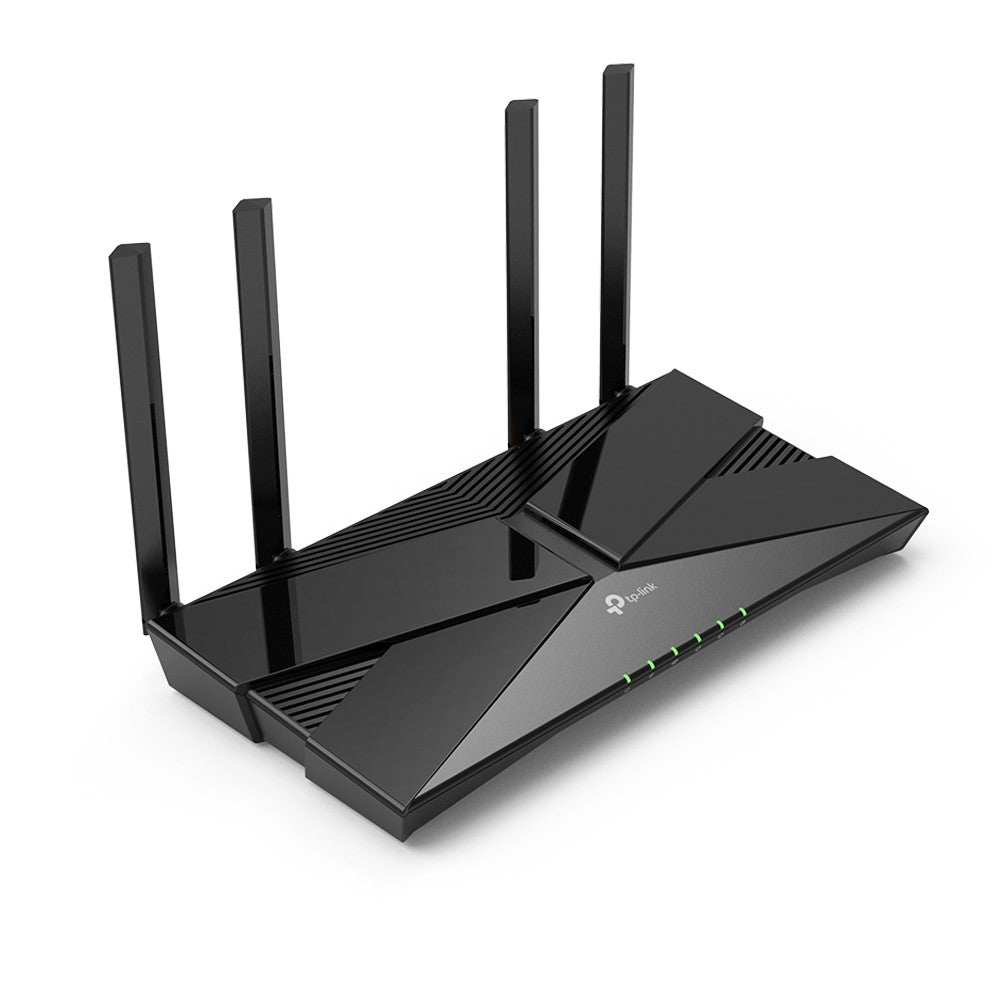

TP-Link XX230v AX1800 Wi-Fi 6 GPON Router with VoIP
Pickup available at NexGen Computing
Usually ready in 24 hours
Experience the Next Generation of Fiber Optic Internet
Unleash the full potential of your fiber internet connection with the TP-Link XX230v, a powerful all-in-one solution designed for modern homes and small offices. This router combines blazing-fast Wi-Fi 6 technology with integrated GPON (Gigabit Passive Optical Network) capabilities, eliminating the need for a separate modem. Enjoy seamless streaming, lag-free gaming, and crystal-clear VoIP calls, all from a single, streamlined device.
Blazing-Fast AX1800 Wi-Fi 6 Speeds
Upgrade your wireless network to the latest Wi-Fi 6 standard. The XX230v delivers dual-band speeds of up to 1.8 Gbps, with 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band. This ensures smooth 4K streaming, rapid downloads, and a responsive online experience for all your connected devices. Technologies like OFDMA and MU-MIMO increase network capacity and efficiency, allowing for simultaneous data transmission to multiple devices without compromising performance.
Seamless Whole-Home Coverage
Four high-performance external antennas and advanced Beamforming technology work together to extend a strong and reliable Wi-Fi signal throughout your home. The XX230v is also EasyMesh compatible, allowing you to create a flexible and unified mesh network with other EasyMesh-supported devices for complete, uninterrupted coverage.
Integrated GPON and VoIP Functionality
Compliant with ITU-T G.984 GPON standards, the XX230v supports downstream data rates of up to 2.488Gbps and upstream rates of up to 1.244Gbps. The built-in FXS port allows you to connect your existing telephone to make and receive calls over the internet (VoIP), surpassing the quality and features of traditional landlines.
Comprehensive Connectivity and Management

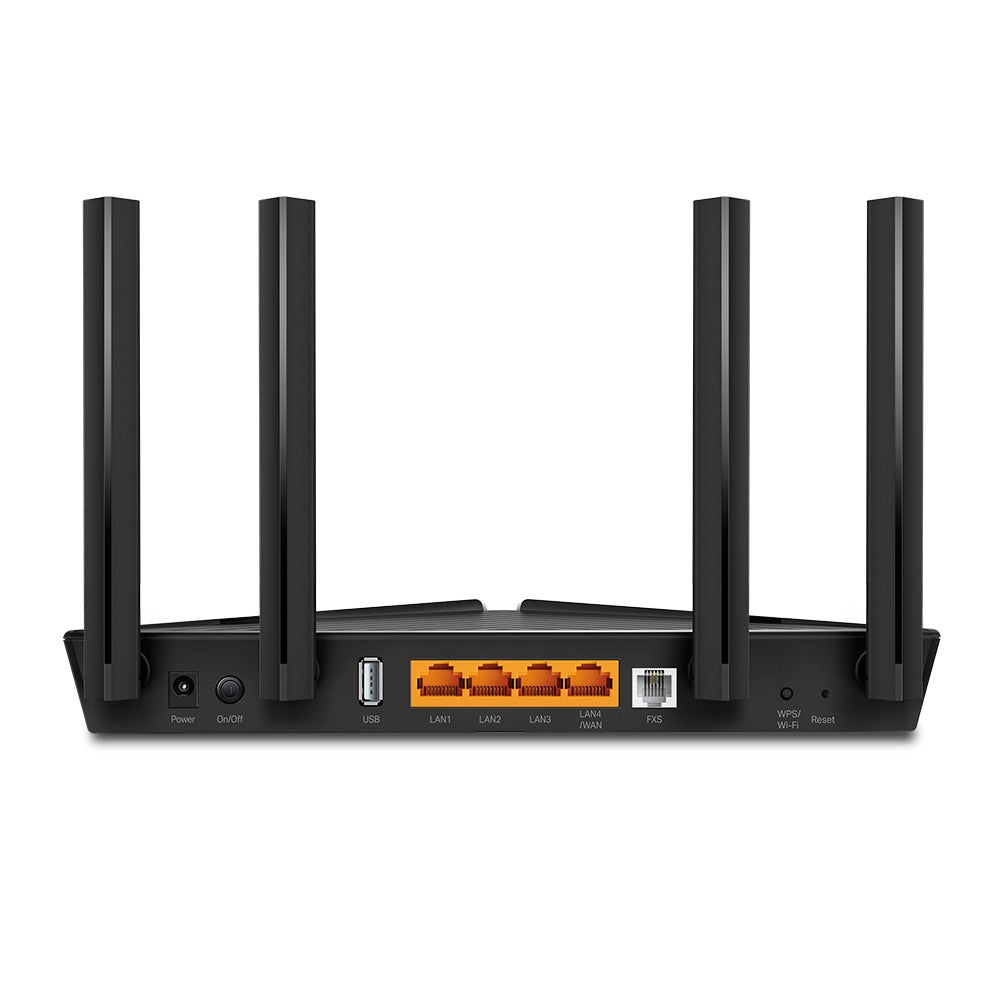

The TP-Link XX230v is equipped with a full suite of ports for all your connectivity needs, including one Gigabit WAN/LAN port, three Gigabit LAN ports, a USB 2.0 port, and an SC/APC GPON port. Advanced remote management protocols such as OMCI and TR-069 are supported, simplifying setup and management for both users and service providers.
Detailed Technical Specifications
| Hardware Features | |
| Interface | 1x SC/APC GPON Port, 1x 10/100/1000 Mbps WAN/LAN Port, 3x 10/100/1000 Mbps LAN Ports, 1x FXS Port, 1x USB 2.0 Port |
| Button | Power On/Off, WPS/Wi-Fi, Reset |
| External Power Supply | 12V/1.5A |
| Dimensions (W x D x H) | 10.2 x 5.3 x 1.9 inches (260.2 x 135.0 x 49 mm) |
| Antenna | 4 High-Performance External Antennas |
| GPON Features | |
| GPON Standards | ITU-T G.984 |
| Data Rates | Downstream: 2.488 Gbps, Upstream: 1.244 Gbps |
| Wireless Features | |
| Wireless Standards | IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 1201 Mbps at 5 GHz, 574 Mbps at 2.4 GHz |
| Wireless Security | WPA-PSK, WPA2-PSK, WPA2-PSK/WPA-PSK mixed mode, WPA3 encryption |
| Mesh Technology | EasyMesh Compatible, IEEE 802.11k/v/r |
| Software Features | |
| VoIP | Supports VoIP base functions |
| Management | Web-based Management, Aginet App, Remote Management (OMCI, TR-069, TR-098, TR-181, and more) |
| Advanced Features | Parental Controls, Multi-SSID, IGMP Proxy/Snooping for smooth IPTV |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
