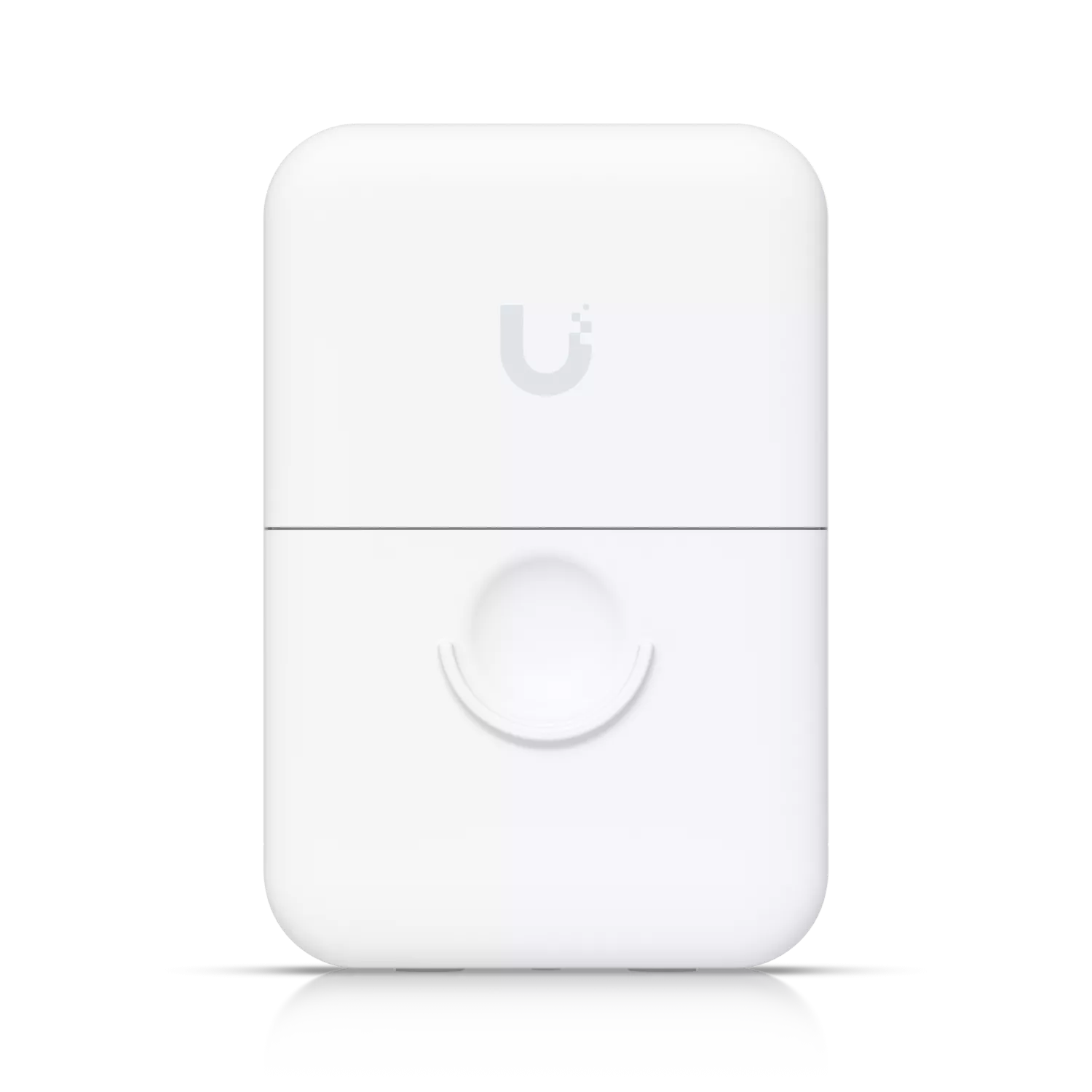

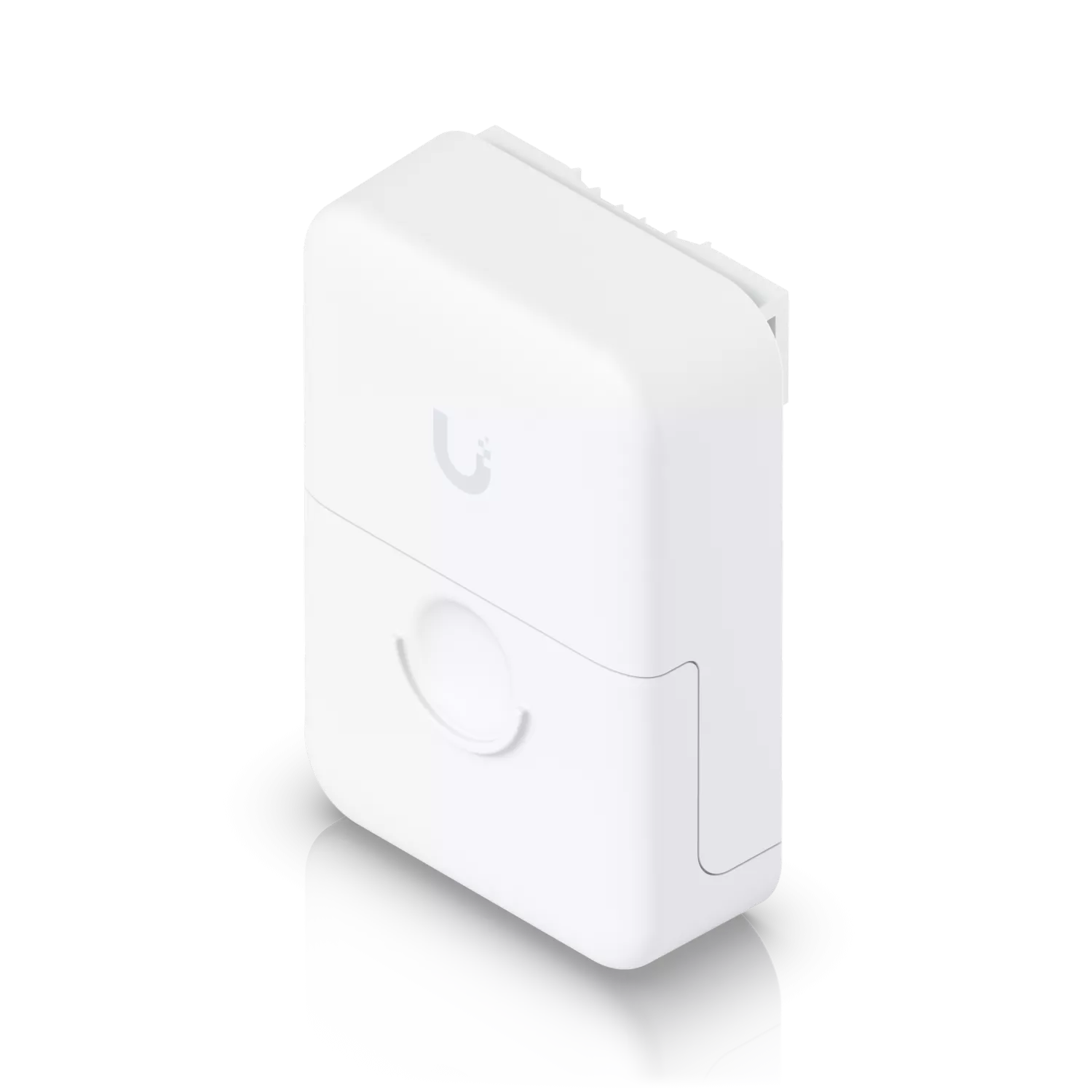

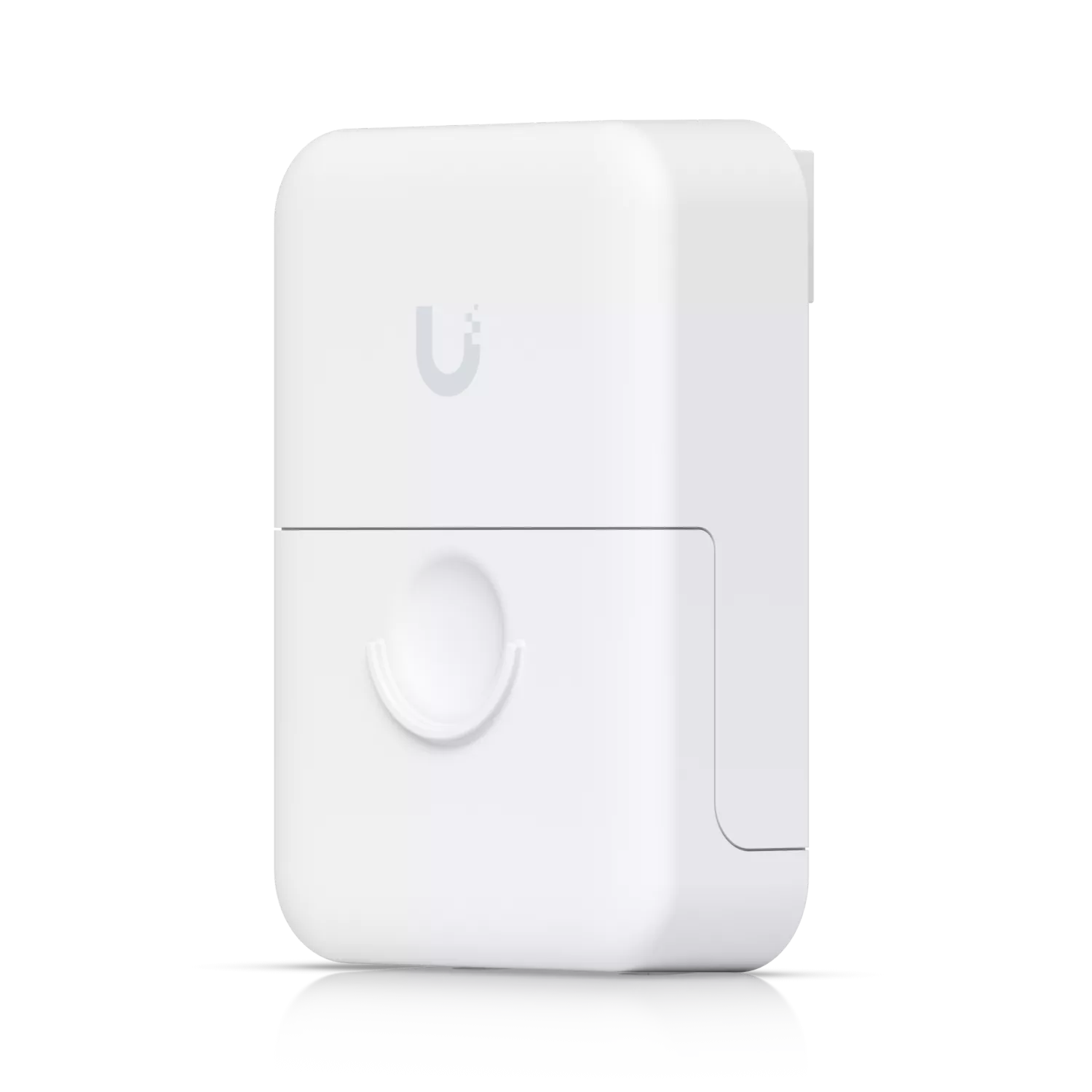

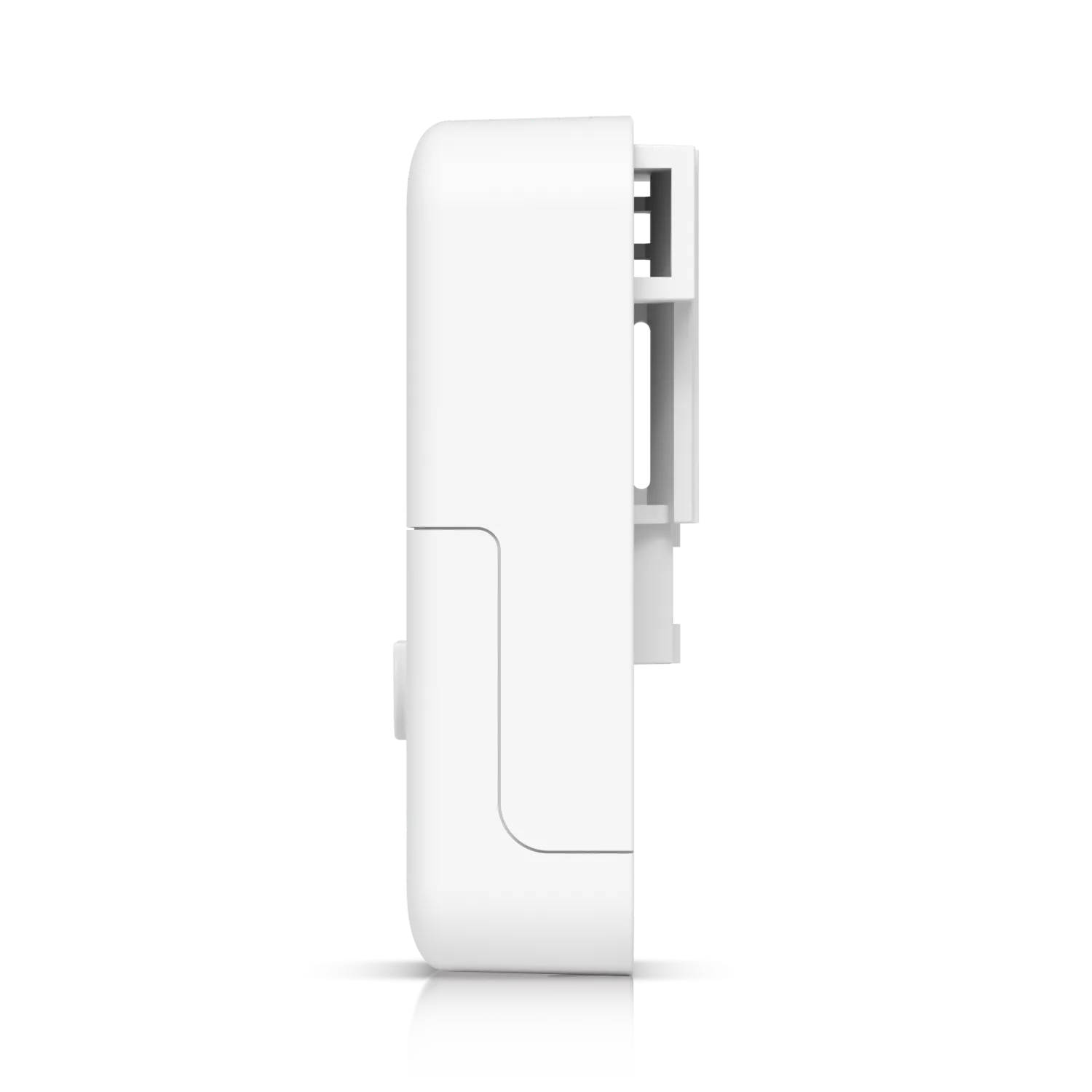

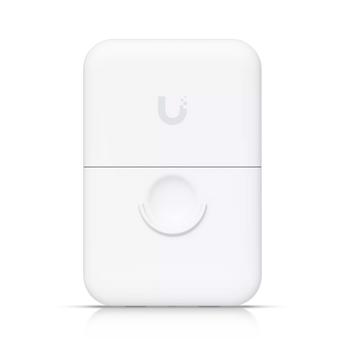

Ubiquiti Ethernet Surge Protector Gen 2 | ETH-SP-G2
Pickup available at NexGen Computing
Usually ready in 24 hours
Shield Your Outdoor Network from Nature's Fury
Introducing the Ubiquiti Ethernet Surge Protector Gen 2, a crucial safeguard for your outdoor networking equipment. This device is expertly engineered to defend your valuable Power-over-Ethernet (PoE) and non-PoE devices from the damaging effects of electrostatic discharge (ESD) and power surges. For operators of WISP networks and installers of outdoor cameras or access points, the ETH-SP-G2 provides an essential, cost-effective layer of protection, ensuring network reliability and longevity.
Advanced Protection, Seamless Integration
While all Ubiquiti® airMAX® devices feature robust built-in ESD protection, the ETH-SP-G2 adds a critical second layer of defense. It protects network devices with connection speeds up to 1 Gbps. Damaging electrical transients are absorbed by the surge protector and safely discharged into the ground, away from your sensitive equipment. Its two passive, surge-protected RJ45 connections ensure maximum compatibility across a wide range of devices.
Plug-and-Play Installation

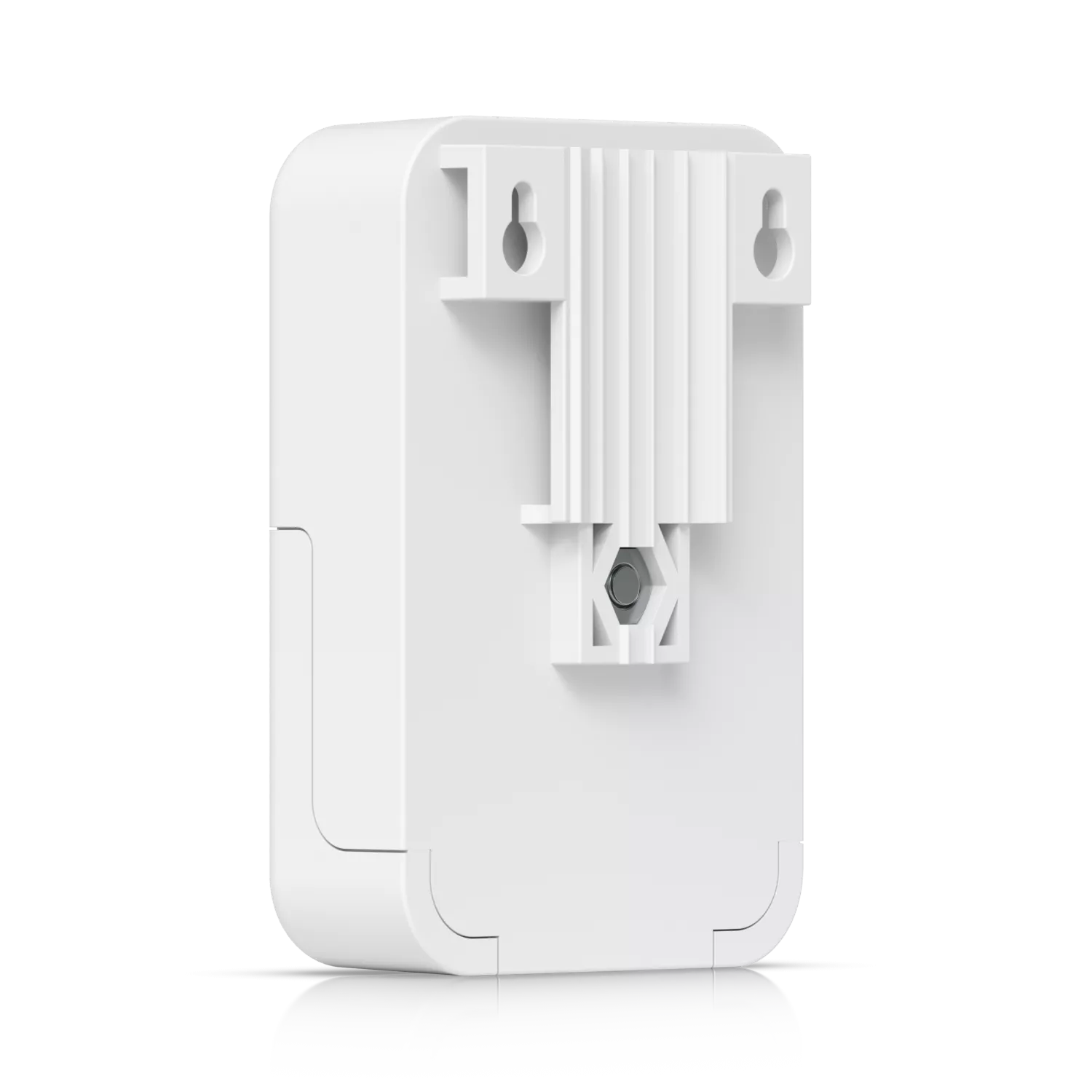

The ETH-SP-G2 is designed for fast and straightforward installation. Simply connect the protector in-line between your network devices and attach it to a grounded pole or structure to fortify your network. For comprehensive protection and to meet local code requirements, it is recommended to install two units: one near the outdoor device (like a CPE) and another at the building's entry point.
Technical Specifications
| Category | Specification |
|---|---|
| Dimensions | 91 x 61 x 32.5 mm (3.58 x 2.4 x 1.28") |
| Weight | 80 g (2.82 oz) |

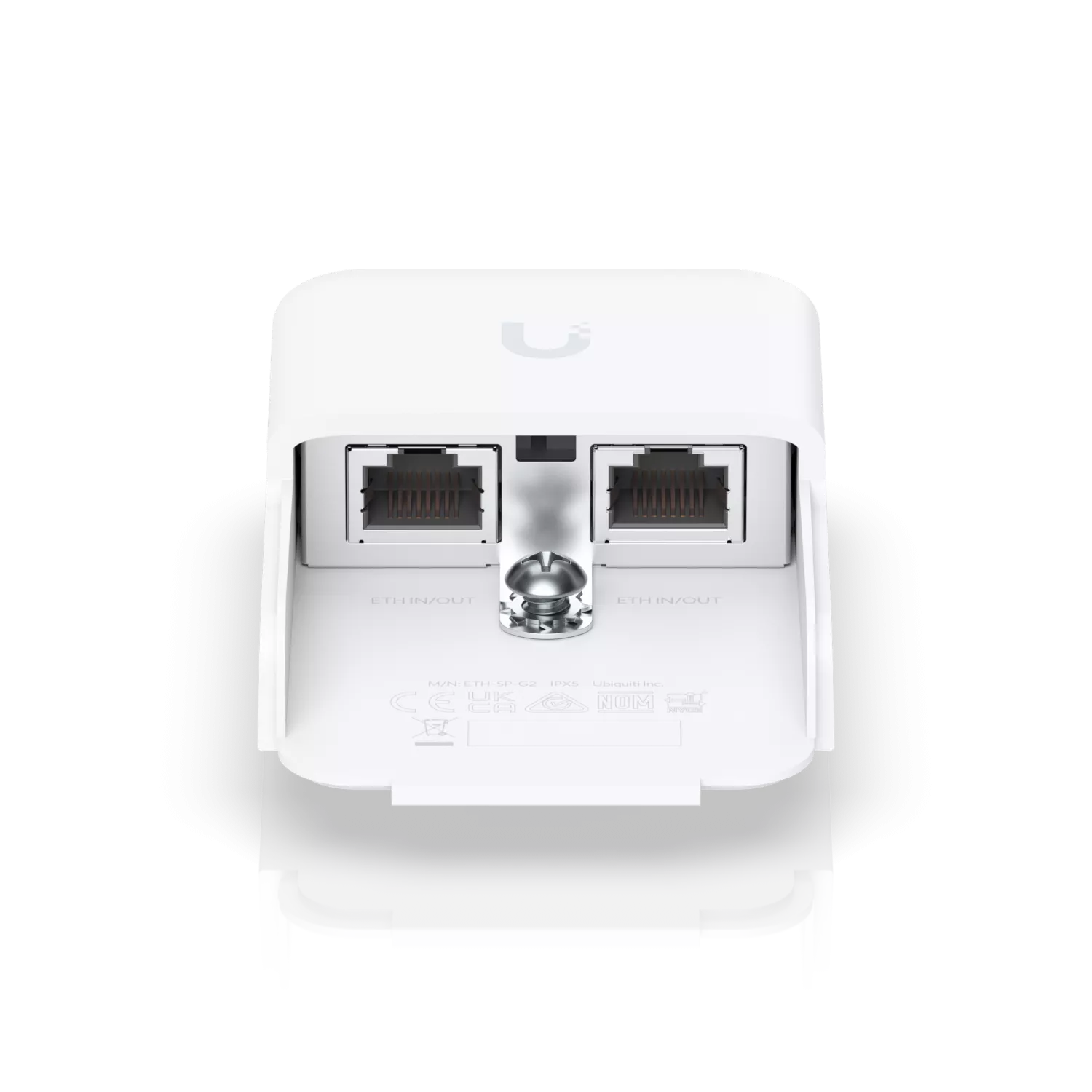

| Interface Connections | (2) RJ45 Female Connectors |
| Data Line Protection | RJ45 10/100/1000 Ethernet |
| PoE Support | 802.3af PoE Pass-through |
| ESD/EMP Protection | Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/μs |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Maximum Impulse Spark-Over Voltage | 700V @ 1kV/μs |
| Discharge Current | 10kA+ |
| Maximum Insulation Resistance | 1G ohm @ 50V |
| Maximum Capacitance | 1.0 pF @ 1 MHz |
| Enclosure Material | Polycarbonate |
| Operating Temperature | -30 to 65° C (-22 to 149° F) |
| Operating Humidity | 10 to 90% Noncondensing |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
