Ubiquiti

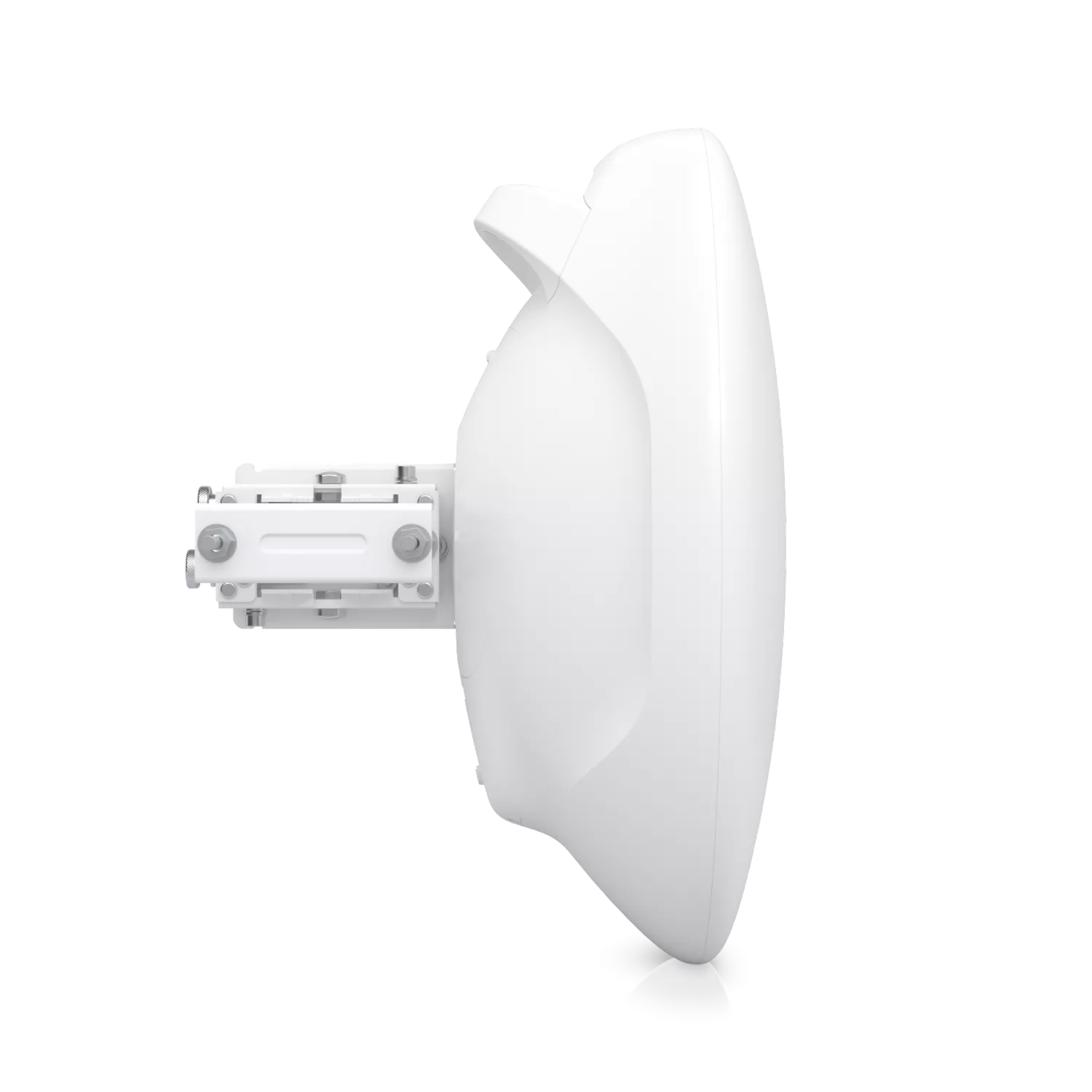

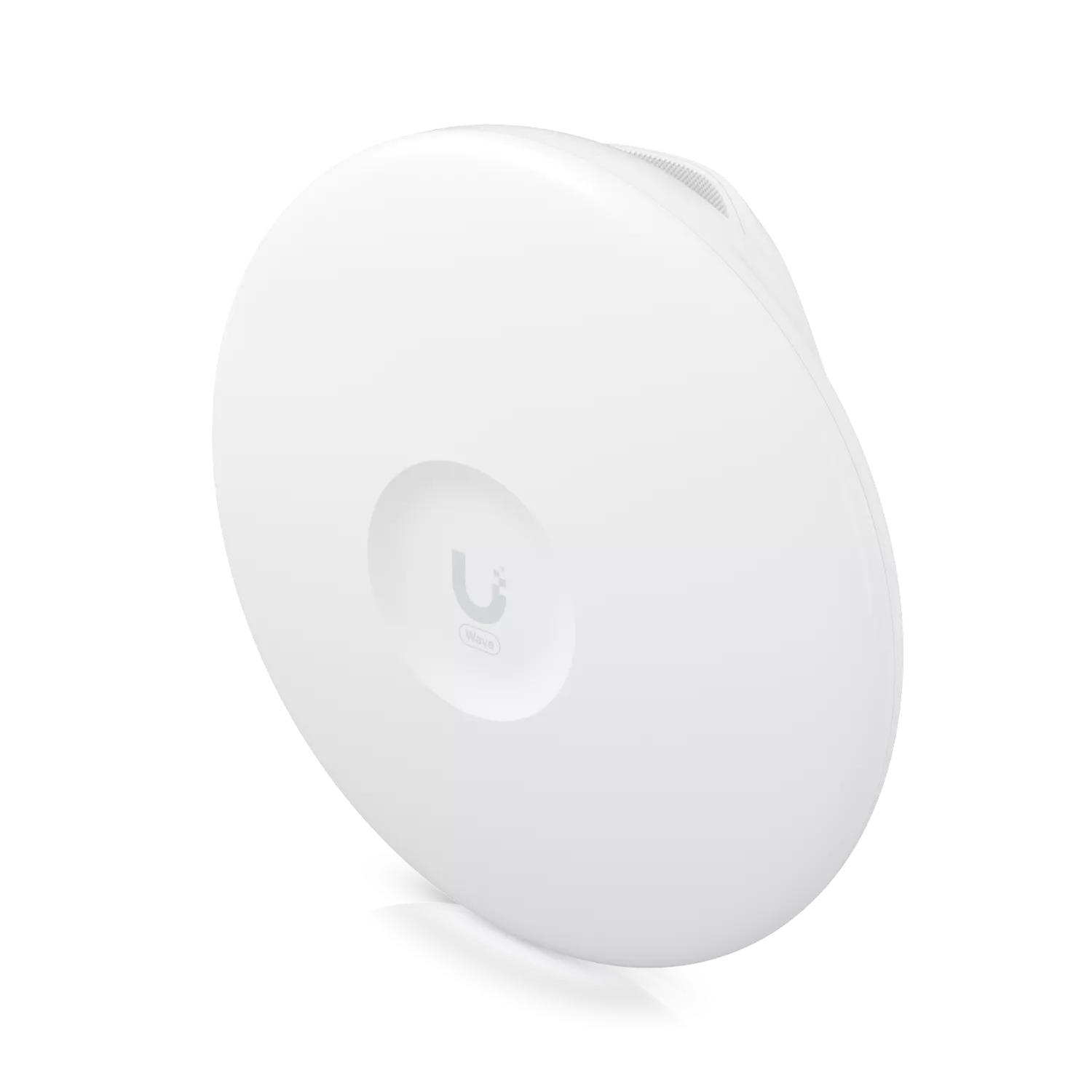

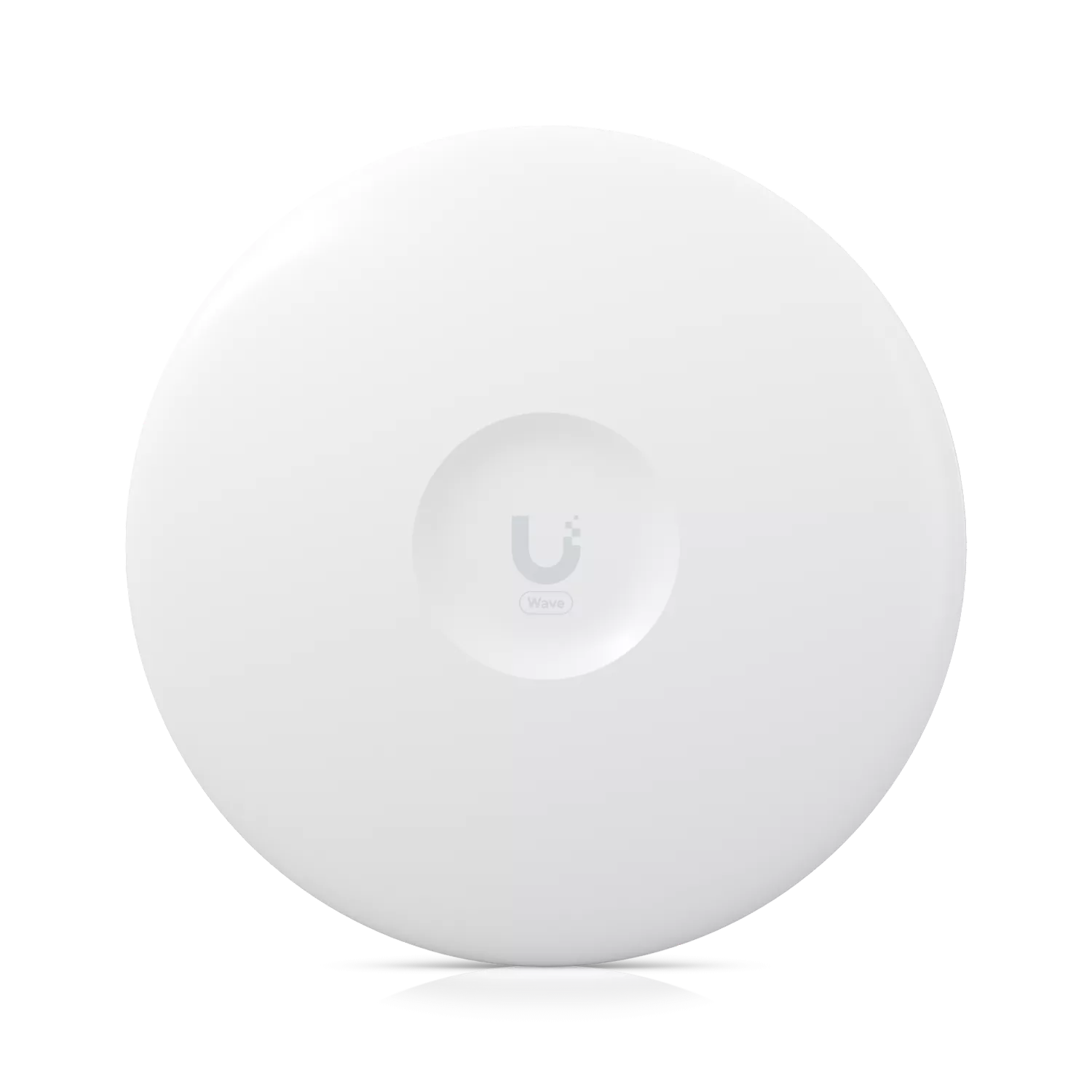

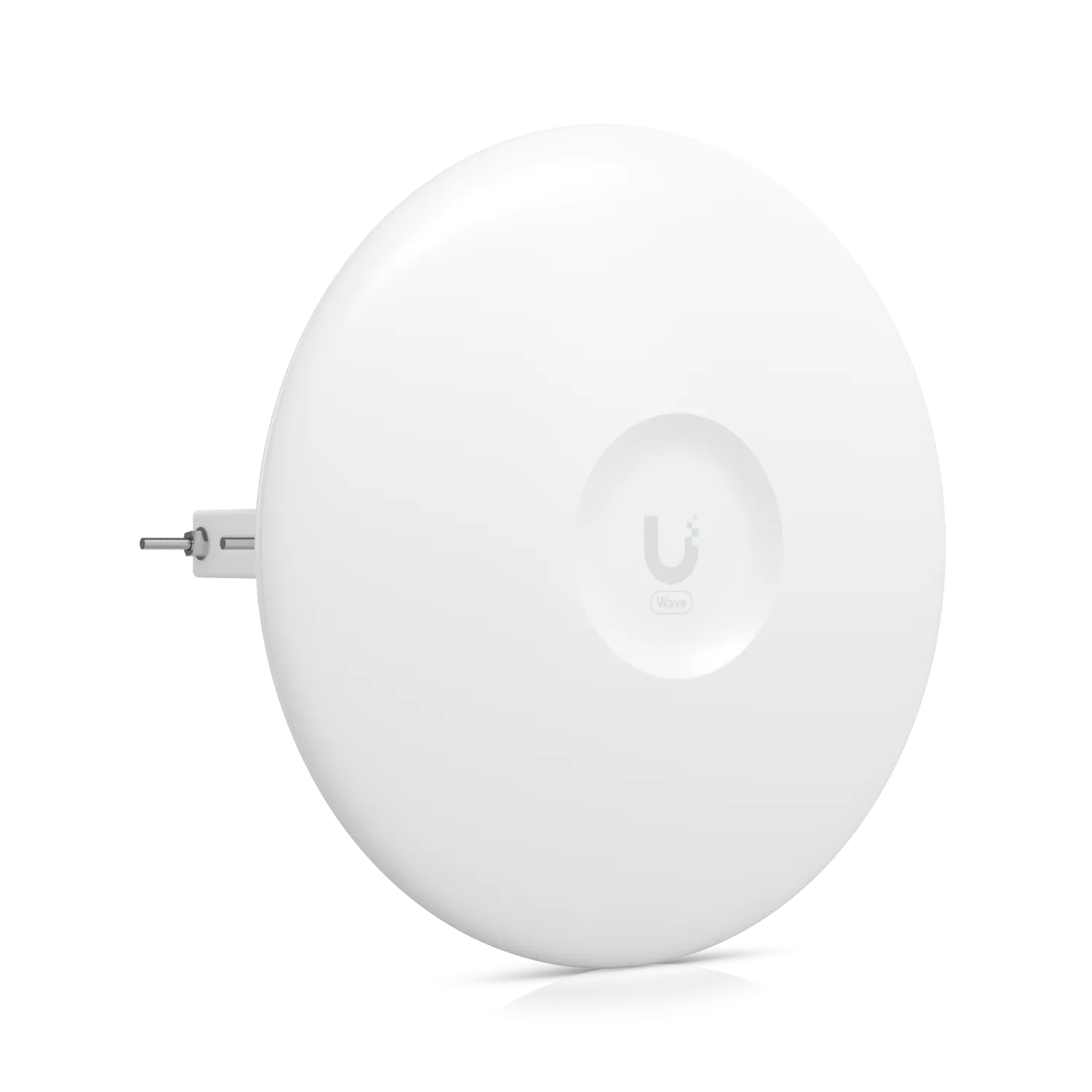

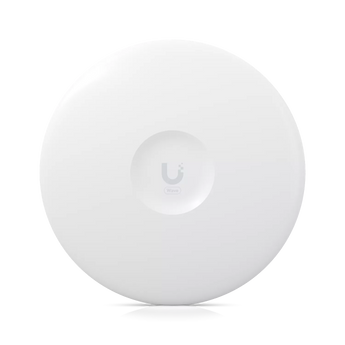

Ubiquiti Wave Pro 60GHz/5GHz PtP/PtMP Wireless Bridge
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Blazing-Fast, Long-Range Connectivity
Experience unparalleled network performance with the Ubiquiti UISP Wave Pro, a high-capacity 60 GHz wireless bridge designed for demanding Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) links. This powerful solution delivers an incredible 5.4 Gbps total throughput (2.7 Gbps duplex), ensuring your network can handle high-bandwidth applications with ultra-low latency. Engineered for long-distance performance, the Wave Pro can establish stable links up to 15 km in PtP mode and up to 8 km as a station in a PtMP setup.
Built for Reliability and Resilience
The Wave Pro is engineered for maximum uptime. It features an integrated 5 GHz weather-resistant backup radio, which automatically activates to keep your connection live if the 60 GHz link is affected by inclement weather, providing over 800 Mbps of throughput. The device is housed in a rugged, IPX6-rated enclosure made from aluminum alloy and UV-stabilized plastic to withstand harsh outdoor environments. Its robust design is complemented by a stainless steel precision alignment mount that simplifies installation and ensures a stable, reliable link.
Advanced Hardware for Peak Performance
At its core, the Wave Pro is powered by a quad-core ARM® Cortex®-A53 processor, enabling it to manage complex tasks and high data volumes without compromise. For ultimate network flexibility, it is equipped with two 2.5 GbE RJ45 ports and a 10G SFP+ port, eliminating bottlenecks and allowing you to take full advantage of its wireless capabilities. Integrated GPS and Bluetooth simplify device setup and management through the UISP mobile application. The included 48V DC PoE injector ensures a straightforward and clean installation.
Key Features:
- 60 GHz primary radio with 5.4 Gbps (2.7 Gbps duplex) maximum throughput.
- 5 GHz 800+ Mbps weather-resistant backup radio for enhanced reliability.
- Long-range performance: Up to 15 km (PtP) and up to 8 km (PtMP).
- Flexible connectivity with (2) 2.5 GbE RJ45 ports and (1) 10G SFP+ port.
- Robust IPX6-rated enclosure for all-weather durability.
- Powered by a Quad-core ARM® Cortex®-A53 processor.
- Integrated GPS and Bluetooth for easy setup and management.
- Precision alignment mount and ergonomic handle for simplified installation.
Technical Specifications
| Mechanical | |
| Dimensions | Ø424.4 x 166.2 mm (Ø16.7 x 6.5") |
| Weight | Without mount: 2.8 kg (6.2 lb) With mount: 4 kg (8.8 lb) |
| Enclosure Materials | Aluminum alloy, UV stabilized plastic |
| Mount Material | Stainless steel |
| Pole Mount Diameter | 25 to 76.2 mm (1 to 3") |
| Wind Loading | 369 N at 200 km/h (83 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | DDR3L 512 MB |
| Networking Interface | (2) 2.5 GbE RJ45 ports (1) 10G SFP+ port |
| Max. Power Consumption | 26W |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power Supply | 48V DC, 0.65A, 2.5 GbE PoE adapter (included) |
| Supported Voltage Range | 44–54V DC / 22–27V DC |
| GPS | Yes |
| Management | Bluetooth |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| 60 GHz Radio | |
| Operating Frequency | 57–71 GHz |
| Antenna Gain | 46 dBi |
| Max. Range | Up to 15 km |
| 5 GHz Backup Radio | |
| WiFi Standard | 802.11ax (WiFi 6) |
| Operating Frequency | 5150 - 5875 MHz |
| Antenna Gain | 22 dBi |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
