Ubiquiti
Ubiquiti UISP airMAX LTU Pro 5GHz 24dBi CPE Includes POE Injector | LTU-PRO
Pickup available at NexGen Computing
Usually ready in 24 hours
Next-Generation Wireless Performance for Service Providers

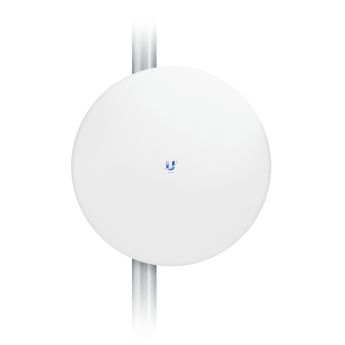

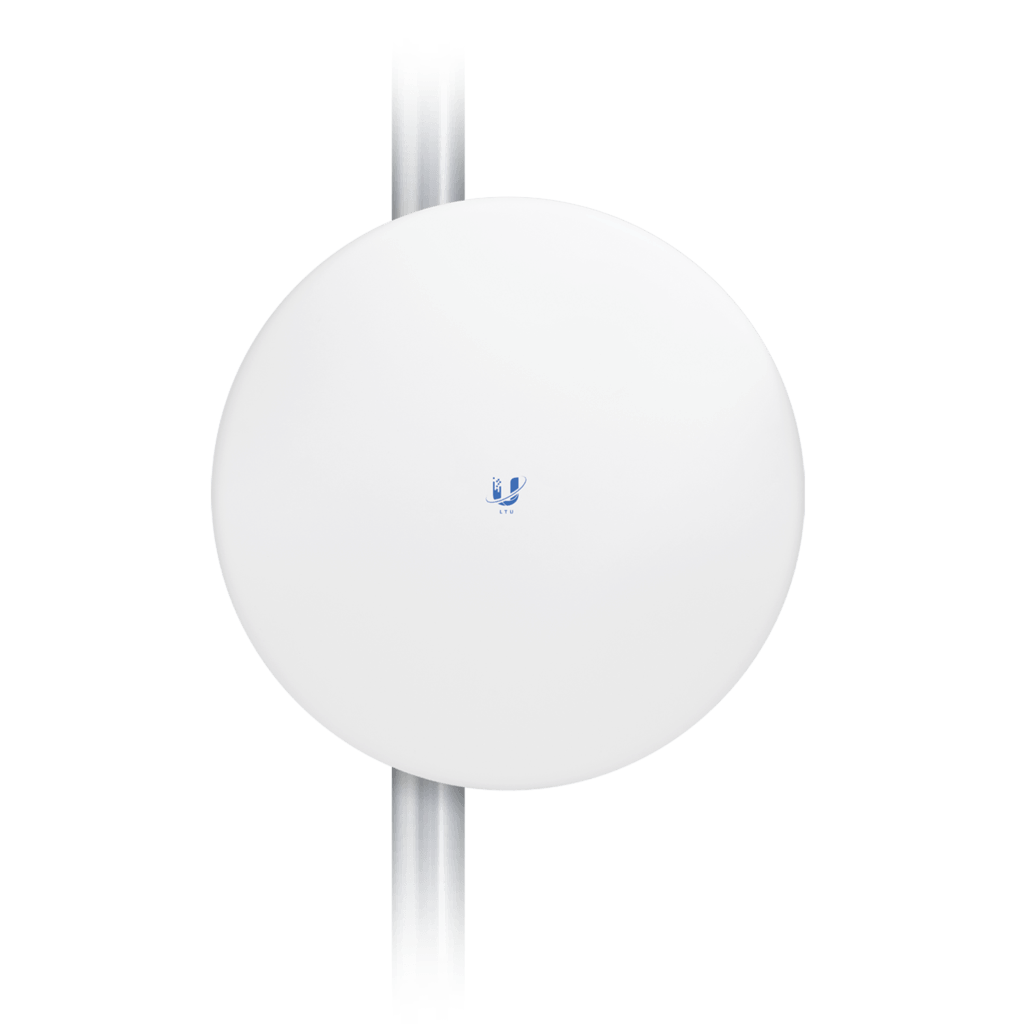

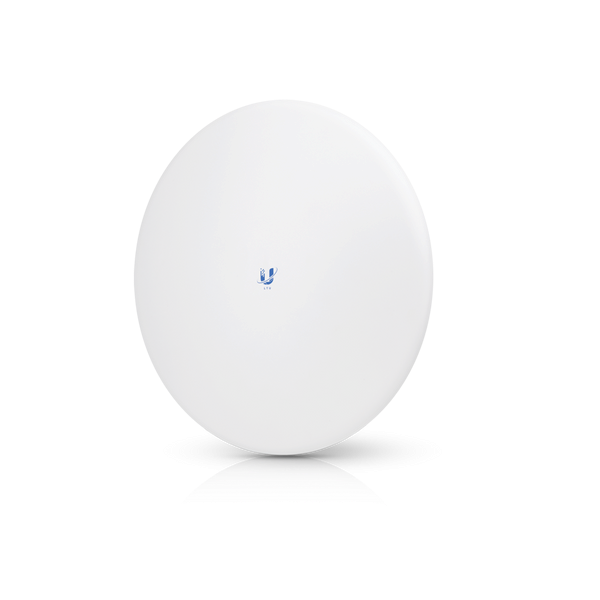

Break free from the limitations of standard Wi-Fi technology with the Ubiquiti UISP airMAX LTU Pro. This high-performance 5 GHz subscriber station is engineered for Point-to-MultiPoint (PtMP) applications, functioning as a robust Customer Premises Equipment (CPE) with the LTU Rocket® as the basestation. Powered by Ubiquiti's proprietary LTU technology, the LTU-PRO features custom silicon and advanced radio architecture, delivering substantial throughput and performance over long distances. Its integrated 24 dBi high-gain dish antenna ensures a strong, reliable connection, making it an ideal choice for wireless internet service providers (ISPs) and enterprise networks.
Unmatched Spectral Efficiency and Flexibility
The LTU Pro is designed for optimal performance even in congested RF environments. It offers exceptional channel width flexibility, supporting 10, 20, 30, 40, and 50 MHz channels. This allows for independent configuration of transmit (TX) and receive (RX) channel frequencies to skillfully avoid local interference. With advanced features like frequency splitting, automatic power adjustments, and support for both bridged and hardware NAT router modes, the LTU Pro provides the versatility needed for any deployment scenario.
Robust Design and Intuitive Management

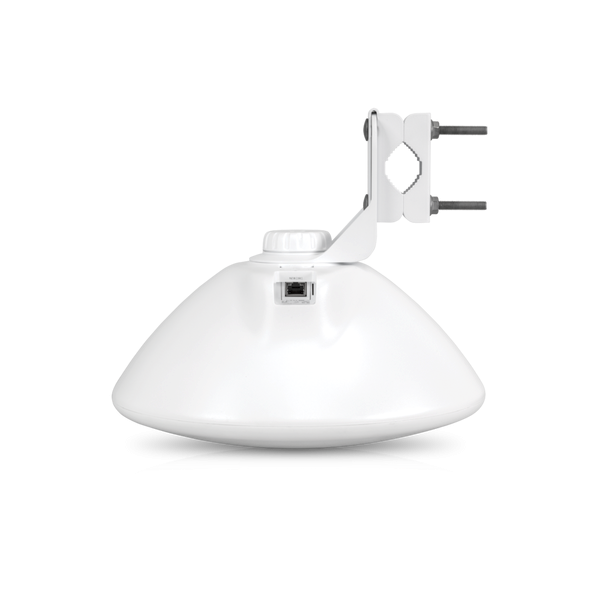

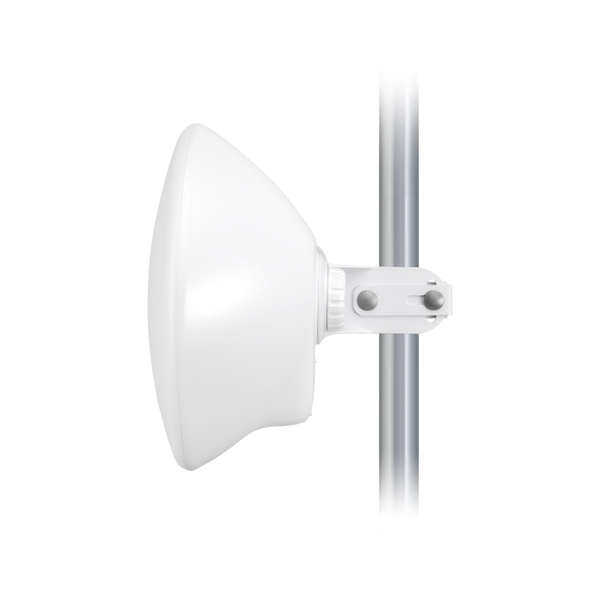

Built to withstand harsh outdoor conditions, the LTU Pro features a UV-stabilized plastic enclosure and a robust pole-mounting kit for quick and reliable installation. The mount includes a built-in mechanical tilt for easy elevation adjustments of ± 15°. Management is streamlined through the LTU Configuration Interface or the comprehensive Ubiquiti Network Management System (UISP), offering real-time spectral analysis, PtMP dashboards with map and Fresnel views, and easy setup via the UISP mobile app using Bluetooth.
Key Features:
- Functions as a PtMP CPE with LTU-Rocket as the basestation.
- Proprietary LTU technology for superior performance.
- Integrated 24 dBi high-gain dish antenna.
- Up to 600+ Mbps of real TCP/IP throughput.
- Flexible channel widths (10/20/30/40/50 MHz).
- Independent TX and RX frequency configuration.
- Supports Bridge and Router modes.
- Durable, outdoor-rated enclosure with robust pole mount.
- Includes 24V, 0.5A Gigabit PoE Adapter.
Technical Specifications
| Hardware | |
| Dimensions | 316.5 x 316.5 x 174.3 mm (12.46 x 12.46 x 6.86") |
| Weight | 1.3 kg (2.87 lb) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Enclosure | Outdoor UV Stabilized Plastic |
| Max. Power Consumption | 9W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8-) |
| Supported Voltage Range | 22 - 26V DC |
| Gain | 24 dBi |
| Mounting | Pole-Mount (Kit Included) |
| ESD/EMP Protection | ± 24kV Contact/Air |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 150 N @ 200 km/h (33.72 lbf @ 125 mph) |
| System & RF | |
| Operating Frequency | 5150 - 5875 MHz (Worldwide, subject to regional regulations) |
| Max. Conducted TX Power | 22 dBm (per Chain) |
| Beamwidth | 14° |
| Channel Bandwidth | 10/20/30/40/50/60/80/100 MHz (Firmware dependent) |
| Encryption | WPA2-PSK (AES) |
| Environmental | |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
