Ubiquiti

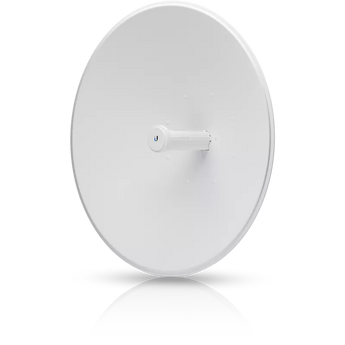

Ubiquiti UISP airMAX PowerBeam 5AC 620 5 GHz Radio Includes POE Injector | PBE-5AC-620
Pickup available at NexGen Computing
Usually ready in 24 hours
Unmatched Performance for Long-Distance Connectivity
Experience superior long-range wireless performance with the Ubiquiti airMAX PowerBeam 5AC 620. This high-performance airMAX Bridge is engineered for CPE deployments that demand maximum performance, delivering reliable point-to-point (PtP) and point-to-multipoint (PtMP) links. With its large 620mm dish reflector and 29dBi of gain, the PowerBeam 5AC 620 provides exceptional beam directivity, ensuring stable, high-speed connectivity over distances of 30 km (19+ miles) or more. Achieve real TCP/IP throughput of over 450 Mbps, making it ideal for bandwidth-intensive applications.
Advanced Technology for Optimal Reliability
The PowerBeam 5AC 620 incorporates Ubiquiti's proprietary InnerFeed® technology, which integrates the radio directly into the feedhorn of the antenna. This innovative design eliminates the need for cables to connect the radio to the antenna, which removes cable losses and improves overall performance. Furthermore, the airMAX ac technology provides improved latency, noise immunity, and scalability. The device's focused beamwidth spatially filters out noise, a critical advantage in crowded RF environments.
Robust Design and Intuitive Management
Built to withstand harsh outdoor conditions, the PowerBeam 5AC 620 features an enclosure made of outdoor UV-stabilized plastic and galvanized steel mounting hardware with a powder-coated finish for superior corrosion resistance. Assembly is simplified with a design that requires minimal fasteners. The included Gigabit PoE injector provides both power and data over a single Ethernet cable. The device is managed by Ubiquiti's powerful and intuitive airOS® v7, and features like airView® offer real-time spectral analysis to help you plan your networks and minimize noise interference.
Comprehensive Specifications Table
| Specification | Detail |
|---|---|
| Model | PBE-5AC-620 |
| Processor | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2, 8 MB Flash |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Gain | 29 dBi |
| Operating Frequency | Worldwide: 5150 - 5875 MHz |
| Max. Power Consumption | 8.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20-26V DC |
| Dimensions | 620 x 620 x 386 mm (24.4 x 24.4 x 15.2") |
| Weight | 6.4 kg (14.1 lb) |
| Polarization | Dual Linear |
| Enclosure Material | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount Kit (Included) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | Air/Contact: ± 24 kV |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Channel Sizes | PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz |
| Certifications | FCC, IC, CE, RoHS |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
