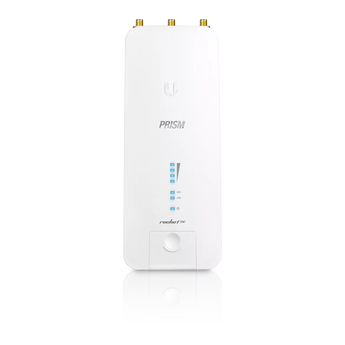

Ubiquiti UISP airMAX Rocket Prism 2AC 2GHz Radio Includes POE Injector | R2AC-PRISM
Pickup available at NexGen Computing
Usually ready in 24 hours
Revolutionize Your 2.4GHz Network Performance
Experience unparalleled network performance even in the most crowded RF environments with the Ubiquiti airMAX Rocket Prism 2AC. This high-performance 2.4 GHz radio is engineered for Internet Service Providers and enterprise networks demanding stable, long-range connectivity. Featuring Ubiquiti's exclusive airMAX ac and patented airPrism technologies, the Rocket Prism 2AC delivers maximum wireless performance and throughput in high-density areas. Its rugged, die-cast aluminum enclosure ensures reliable outdoor deployments, making it the ideal solution for Point-to-Point (PtP) backhauls and Point-to-MultiPoint (PtMP) links.
Advanced RF Filtering with airPrism Technology
Ubiquiti's groundbreaking airPrism technology provides breakthrough radio selectivity in the unlicensed 2.4 GHz band. This active RF filtering technology isolates signals within your operating channel to dramatically increase capacity and throughput in co-location deployments. By rejecting interference from adjacent channels, airPrism technology creates a high Signal-to-Noise Ratio (SNR), which is essential for achieving high data rates in noisy environments. This allows the Rocket Prism 2AC to deliver significantly greater performance than typical access points.
Superior Performance and Throughput
Powered by the revolutionary airOS® 8 operating system, the Rocket Prism 2AC supports airMAX ac protocol with real TCP/IP throughput of up to 330+ Mbps. Unlike standard Wi-Fi protocols, Ubiquiti's Time Division Multiple Access (TDMA) airMAX ac protocol uses pre-designated time slots to eliminate hidden node collisions and maximize airtime efficiency. This results in significant improvements in latency, noise immunity, and scalability for your network. The device also features a dedicated spectral analysis radio and GPS synchronization for enhanced co-location performance.
Key Features
- Full 2.4 GHz Spectrum Coverage: A single radio delivers complete coverage of the 2.4 GHz spectrum.
- airPrism Active RF Filtering: Isolates your signal for increased capacity and throughput in high-density areas.
- airMAX ac Technology: Provides up to 330+ Mbps throughput for PtP and PtMP links.
- Robust Design: Features a die-cast aluminum, EMI-shielded enclosure for durability in harsh outdoor environments.
- GPS Synchronization: Ensures superior co-location performance.
- Gigabit Ethernet: Includes a 10/100/1000 Ethernet port for high-speed wired connectivity.
- Plug and Play Installation: Compatible with Ubiquiti airMAX antennas for optimal performance (sold separately).
- PoE Injector Included: Comes with a 24V, 0.5A Gigabit PoE Adapter for easy powering.
Technical Specifications
| Mechanical & Physical | |
|---|---|
| Dimensions | 88 x 40 x 230 mm (3.47 x 1.58 x 9.06") |
| Weight | 400 g (14.1 oz) |
| Enclosure | Die-Cast Aluminum with White Powder Coating |
| Hardware | |
| Processor | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2 SDRAM, 16 MB NOR Flash |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| RF Connectors | (2) RP-SMA (Waterproof), (1) GPS (Waterproof) |
| LEDs | Power, LAN, (4) Signal Strength |
| Power | |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Max. Power Consumption | 9.5W |
| Supported Voltage Range | 18-26VDC |
| Radio & Operating | |
| Operating Frequency | Worldwide: 2412 - 2472 MHz, US/CA: 2412 - 2462 MHz |
| Channel Sizes | PtP: 10/20/40 MHz, PtMP: 10/20/40 MHz |
| ESD/EMP Protection | Air/Contact: ± 24kV |
| Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
