Ubiquiti

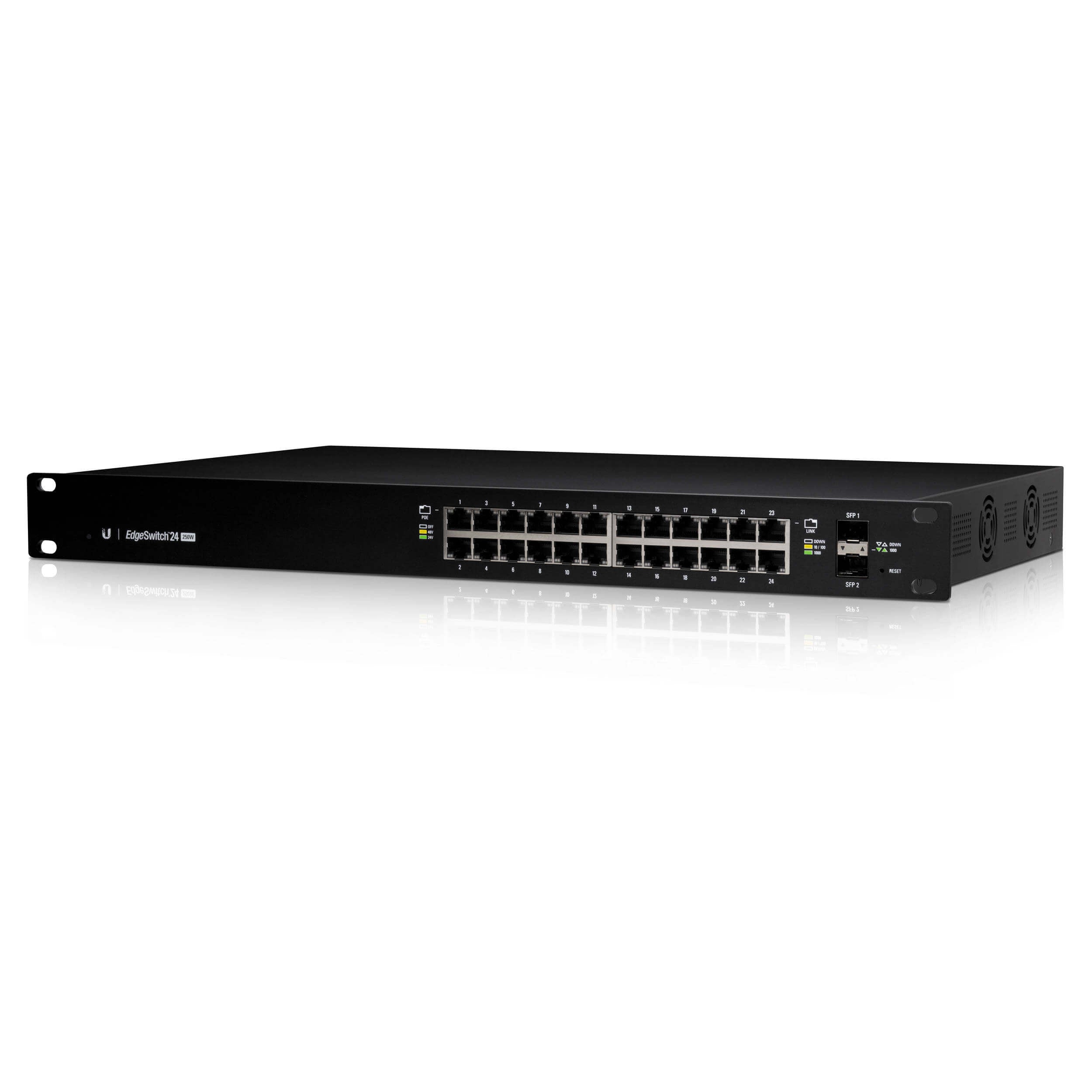

Ubiquiti UISP EdgeSwitch 24 Port 250W PoE 2xSFP | ES-24-250W
Pickup available at NexGen Computing
Usually ready in 24 hours
Unlock Robust Performance and Intelligent Switching for Your Growing Network
Build and expand your network with the Ubiquiti EdgeSwitch 24, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering powerful performance and intelligent switching for your expanding network needs. It offers a comprehensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Advanced Switching Technology
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. This 24-port model delivers a total, non-blocking throughput of up to 26 Gbps, with a switching capacity of 52 Gbps, ensuring smooth data flow even under heavy load.
Flexible PoE+ Functionality
Simplify your infrastructure with 24 ports of auto-sensing IEEE 802.3af/at PoE+ and configurable 24V passive PoE. The switch automatically detects and provides power to 802.3af/at devices. For devices requiring 24V passive PoE, you can manually enable it through the intuitive configuration interface. With a total power budget of 250W, it can deliver up to 34.2W per port, making it ideal for powering access points, VoIP phones, and surveillance cameras.
High-Capacity Fiber Connectivity
The EdgeSwitch is equipped with two SFP ports, providing fiber connectivity options for your growing network with uplink speeds of up to 1 Gbps.
Comprehensive Management Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface. For advanced users, an industry-standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.
| Hardware Specifications | |
|---|---|
| Dimensions | 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24") |
| Weight | 4.7 kg (10.4 lb) |
| Networking Interfaces | (24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In/Out Band |
| Total Non-Blocking Throughput | 26 Gbps |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 250W DC |
| Max. Power Consumption | 250W (Includes PoE Output) |
| PoE Interfaces | PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Max. Passive PoE Wattage per Port | 17W |
| Voltage Range 802.3at Mode | 50–57V |
| Rackmount | Yes, 1U High |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
