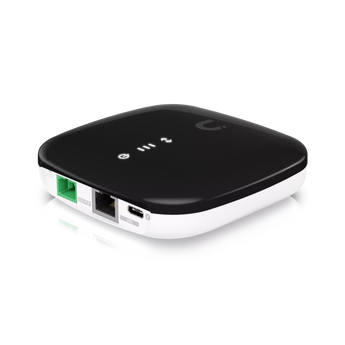

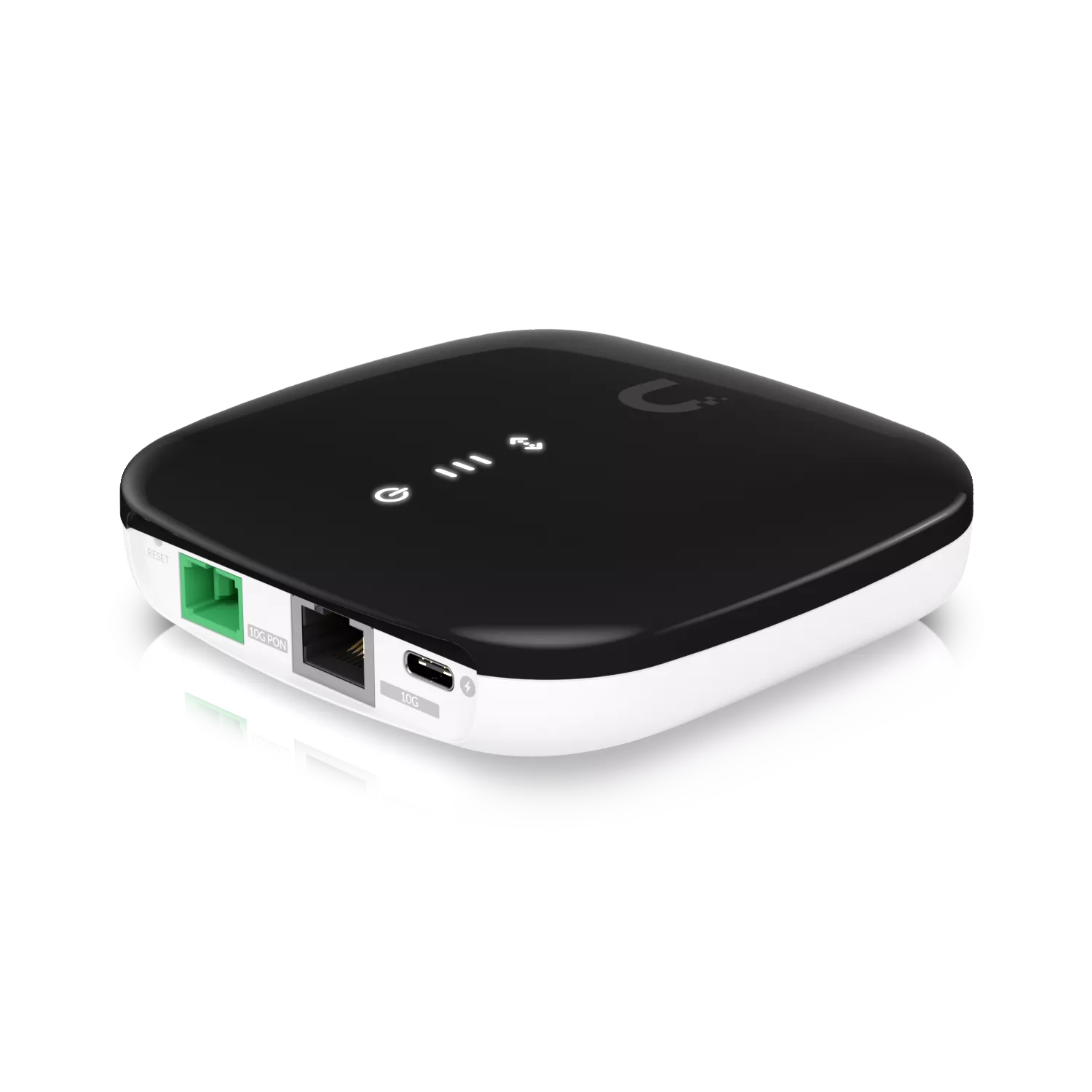

Ubiquiti UISP Fiber XGS XGS-PON Optical Network Unit
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Symmetrical 10 Gbps Fiber Speeds
Upgrade your network to the next generation of fiber optic performance with the Ubiquiti UISP Fiber XGS, a high-performance XGS-PON Optical Network Unit (ONU). Designed for service providers and advanced home users, this compact ONU delivers an incredible 10 Gbps of symmetrical uplink and downlink bandwidth over distances up to 20 km. It serves as the perfect customer premises equipment (CPE) to terminate a fiber line, converting it into a multi-gigabit copper Ethernet connection for unparalleled internet speeds.
Seamless Integration and High-Speed Connectivity

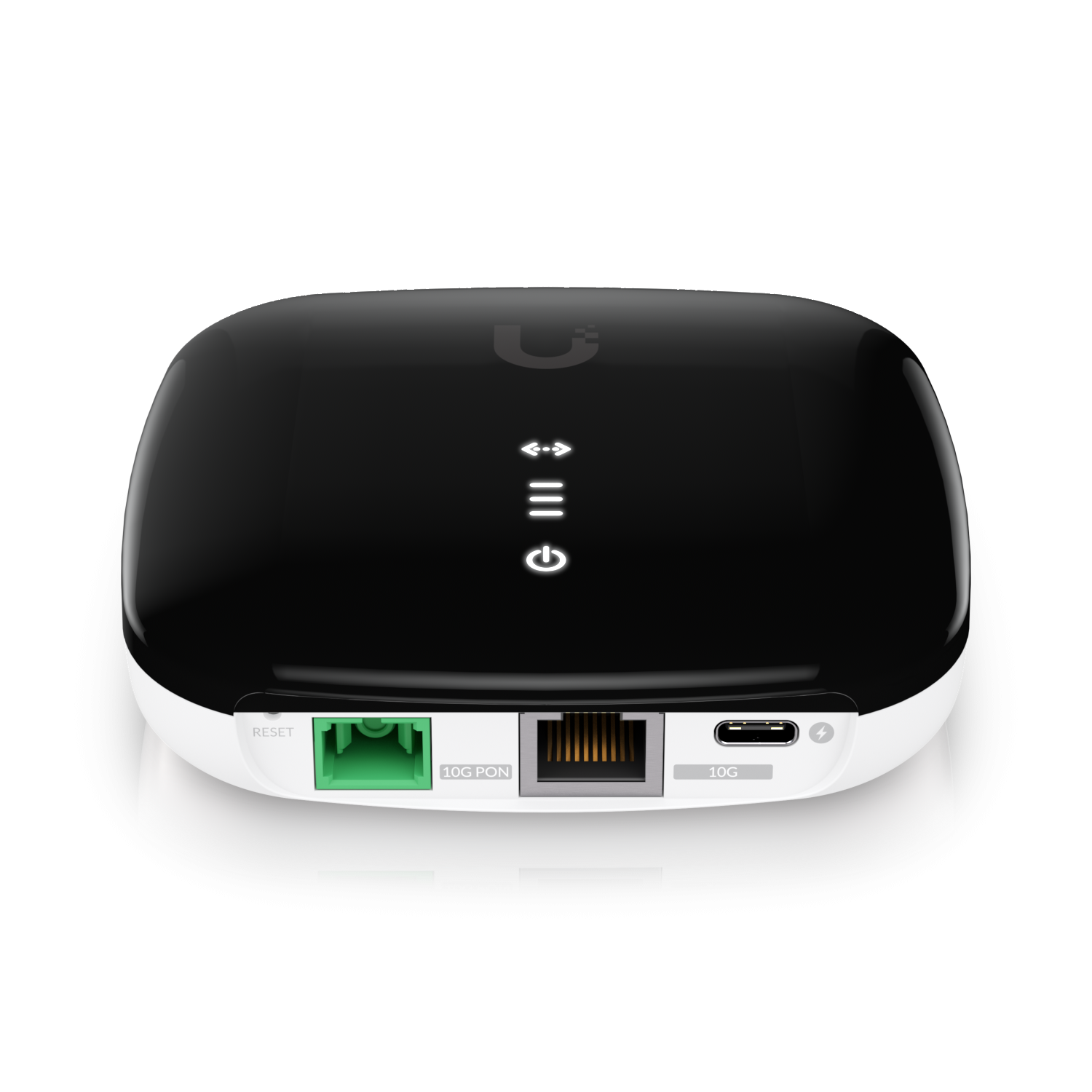

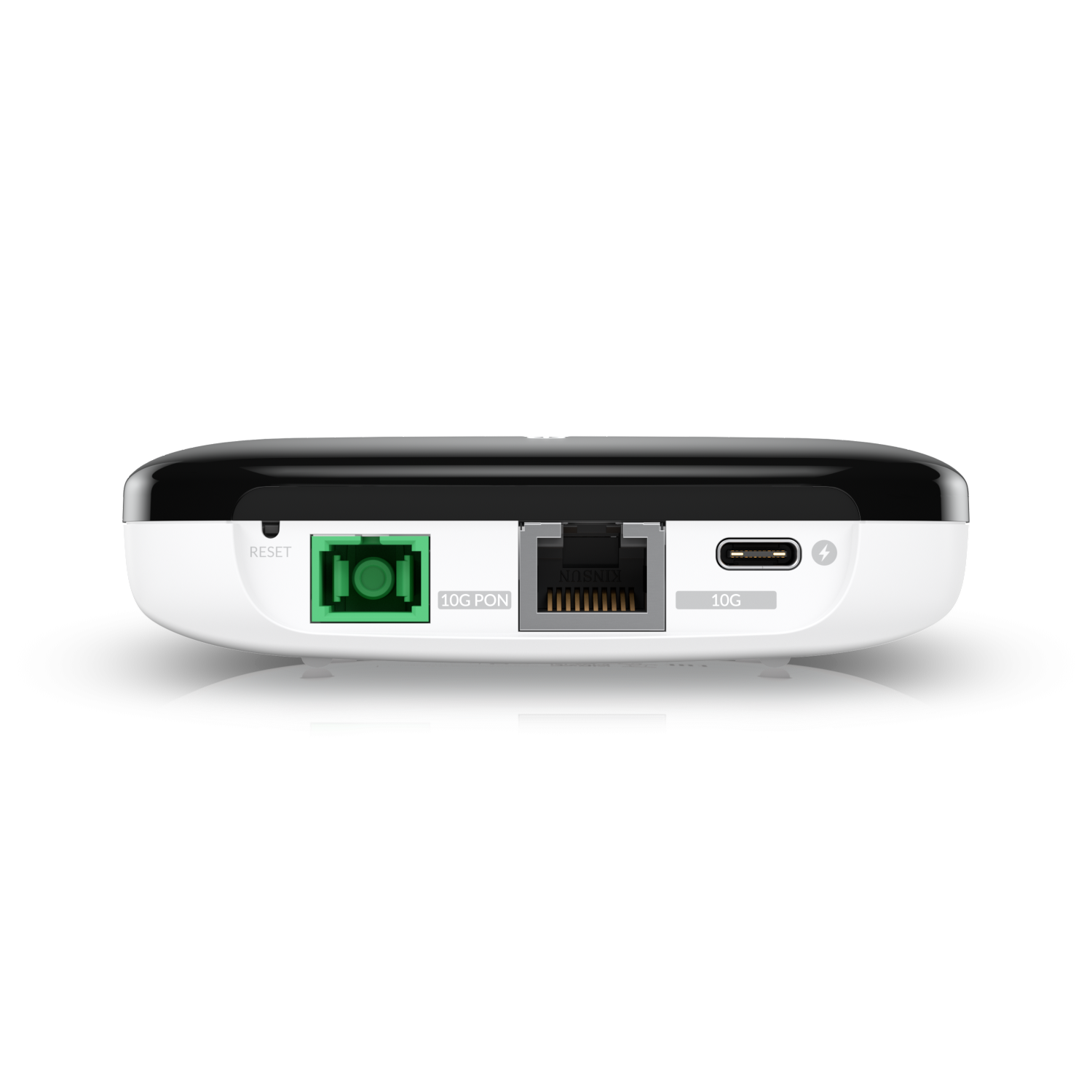

The UISP-FIBER-XGS is engineered for maximum throughput and compatibility. It features a single SC/APC port for the incoming XGS-PON fiber connection and a powerful 10GbE RJ45 LAN port for the local network. This LAN port supports a wide range of speeds, including 100/1,000/2,500/5,000/10,000 MbE, ensuring seamless connectivity with your high-end routers, switches, and workstations. The unit supports both bridge and router modes for flexible network integration and is managed centrally via the Ubiquiti UISP application (version 1.5.7 and later), allowing for streamlined deployment and monitoring.
Robust and Compact Design

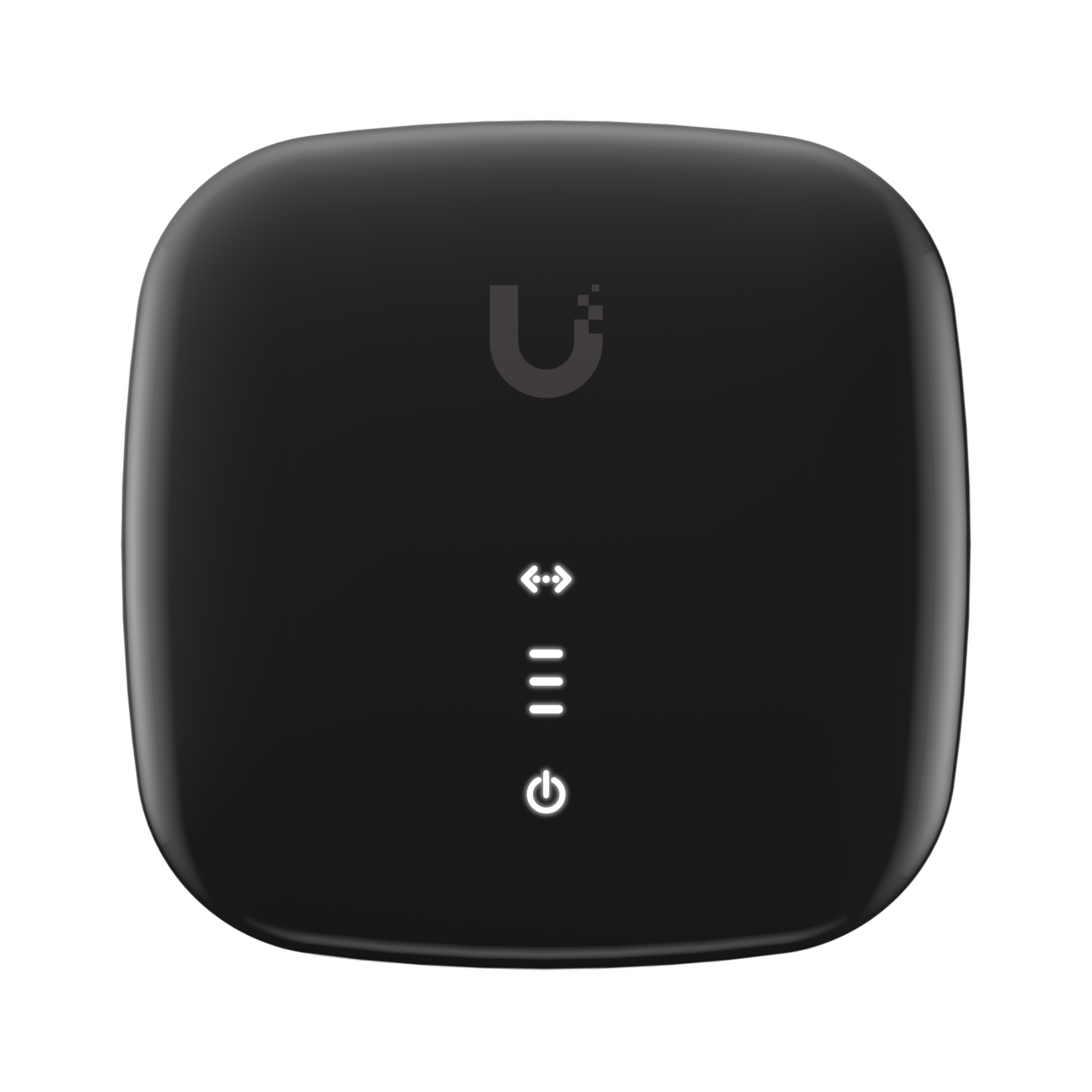

Housed in a durable, UV-stabilized polycarbonate enclosure, the UISP Fiber XGS is built to last. Its minimalist and compact design (100 x 100 x 27 mm) allows for discreet placement in any indoor environment. Power is conveniently supplied via a modern USB-C port using the included 5V, 3A power adapter. Intuitive status LEDs provide at-a-glance information on power, Ethernet link status, and PON signal strength, simplifying installation and troubleshooting.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 100 x 100 x 27 mm (3.9 x 3.9 x 1.1") |
| Weight | 220 g (0.49 lb) |
| Enclosure Material | UV-stabilized polycarbonate |
| Hardware | |
| Networking Interfaces | (1) SC/APC, ITU-G.9807 XGS-PON WAN Port (1) 100/1,000/2,500/5,000/10,000 MbE RJ45 LAN Port |
| Management Interface | Ethernet in-band, PON |
| Total Non-Blocking Line Rate | 9.95 Gbit/s (Downstream) 9.95 Gbit/s (Upstream) |
| Max. Power Consumption | 8W |
| Power Method | USB-C 5V DC, 3A |
| Power Supply | 5V DC, 3A Power Adapter (Included) |
| Memory | 256 MB DDR |
| Onboard Flash Storage | 32 MB NOR |
| Button | Factory Reset |
| Operating Temperature | -15 to 45° C (5 to 113° F) |
| Operating Humidity | 10 to 95% Non-condensing |
| Certifications | CE, FCC, IC |
| Fiber | |
| Operating Wavelength | TX: 1,270 nm, RX: 1,577 nm |
| Normal TX Power Range | 4 to 9 dBm |
| Normal RX Power Range | -9 to -26 dBm |
| Physical Reach | 20 km |
| Software | |
| Management Application | UISP Version 1.5.7 and later |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
