Ubiquiti
Ubiquiti UISP – UFiber GPON OLT Headend 8 Port OLT + 2 x SFP+ ports
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Capacity Fiber Network Headend
Deploy a scalable and high-speed fiber network with the Ubiquiti UFiber GPON Optical Line Terminal (OLT). This headend unit is the starting point for a robust Fiber-to-the-Home (FTTH) or enterprise fiber network, providing a cost-effective solution for delivering triple-play services like data, voice, and IPTV. It is designed for plug-and-play installation, simplifying what was once a complex setup process. Centrally manage your OLT and multiple sites with ease using the intuitive Ubiquiti UISP platform.
Powerful Performance and Connectivity

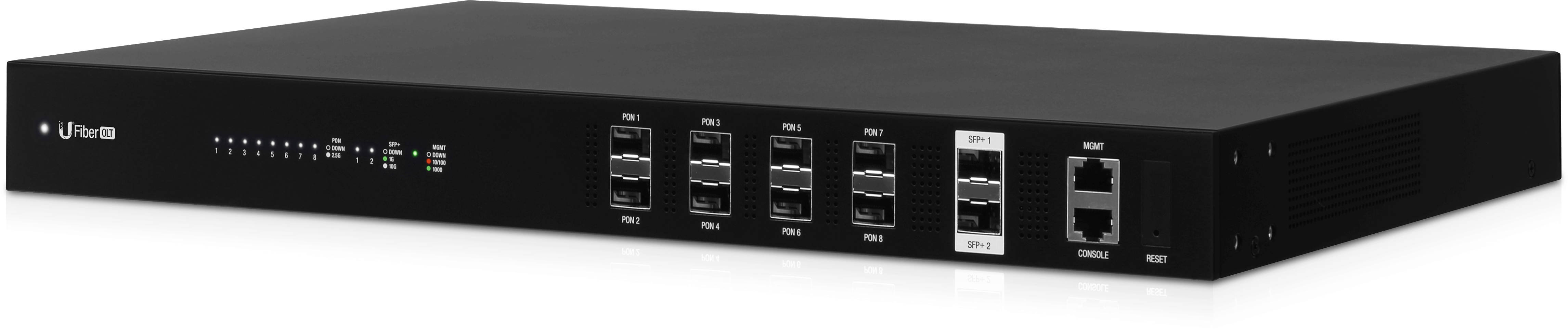

The UFiber OLT is equipped with eight GPON SFP ports and two 10G SFP+ ports for high-capacity uplinks. Each GPON port can handle up to 128 clients (ONUs/ONTs), allowing the device to serve a total of 1024 concurrent clients. It delivers impressive speeds with 2.488 Gbps downstream and 1.244 Gbps upstream per port, ensuring a high-speed connection over distances up to 20 km. The dual SFP+ ports provide up to 20 Gbps of total uplink connectivity, preventing any bottlenecks in your network backbone.
Robust and Redundant Design

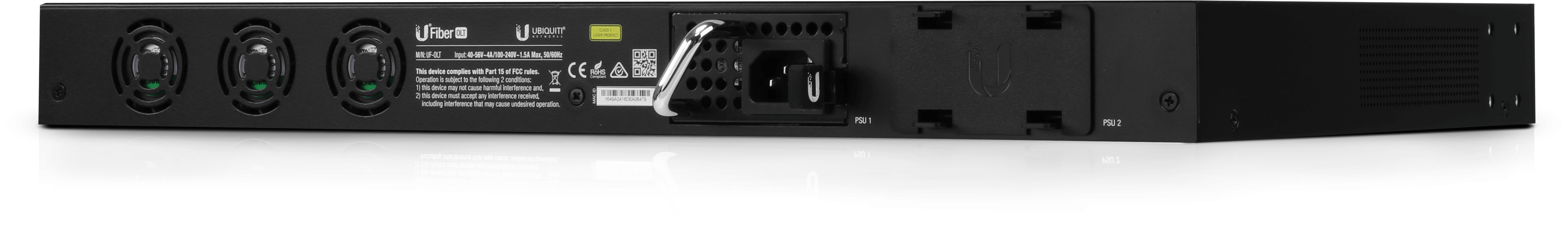

Built for reliability, the UF-OLT features a durable SGCC steel chassis in a standard 1U rack-mountable form factor. It incorporates two modular power bays for flexible and redundant power options. One hot-swappable AC/DC 100W PSU module is included, and the second bay can be used for an optional AC/DC or DC/DC power module for backup, ensuring uninterrupted service.
Comprehensive Technical Specifications
| Hardware Specifications | |
|---|---|
| Processor | MIPS 1004Kc, 880 MHz Dual-Core |
| Memory | 512 MB DDR3, 512 MB NAND |
| Networking Interfaces | (8) GPON OLT SFP Ports (2) 1G/10G SFP+ Ports |
| Management Interfaces | (1) RJ45 Ethernet Port (Out-of-Band) (1) RJ45 Serial Console Port Bluetooth for UISP App |
| Concurrent Clients | 1024 Registered ONUs/ONTs (128 per GPON Port) |
| GPON Performance | |
| GPON Speeds | 2.488 Gbps Downstream (RX) 1.244 Gbps Upstream (TX) |
| Operating Wavelengths | 1490 nm Downstream (TX) 1310 nm Upstream (RX) |
| Max. Fiber Distance | 20 km |
| Power | |
| Power Method | Modular PSU Bay |
| Power Supply | (1) Hot-Swappable AC/DC 100W PSU (Included) |
| Max. Power Consumption | 40W (Excluding SFP Modules) |
| Physical | |
| Dimensions | 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72") |
| Weight | 4.40 kg (9.70 lb) without brackets 4.495 kg (9.91 lb) with brackets |
| Enclosure Material | SGCC Steel |
| Mounting | 1U Rack-Mountable (Brackets Included) |
| Environmental | |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
