Ubiquiti UISP WaveFiber 2.5 Gbps GPON Terminal
Pickup available at NexGen Computing
Usually ready in 24 hours
Next-Generation Fiber Speeds for Your Network

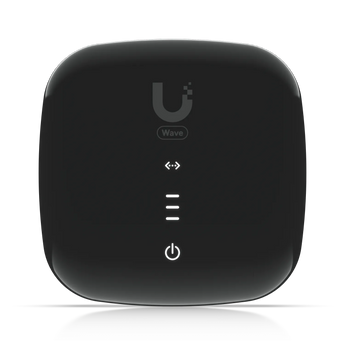

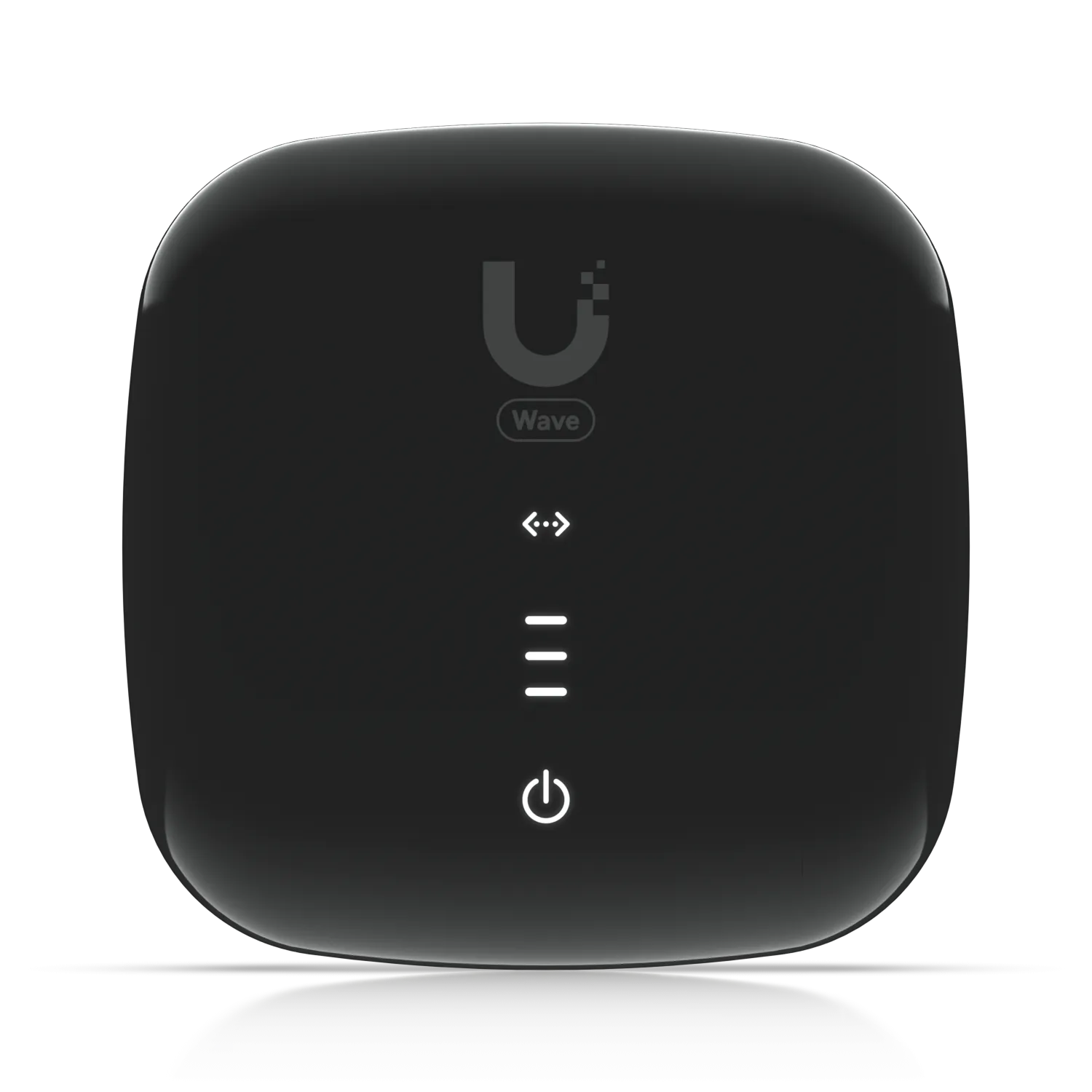

Experience a new echelon of internet performance with the Ubiquiti UISP WaveFiber Optical Network Unit (ONU). This high-performance GPON terminal is engineered to deliver ultra-fast and dependable fiber connectivity directly to homes and businesses. By seamlessly converting a fiber optic light signal into a powerful 2.5 Gbps Ethernet interface, the WaveFiber ONU ensures your network is ready for the most demanding online applications, from high-definition streaming and competitive gaming to large-scale data transfers and cloud computing.
Unleash Multi-Gigabit Throughput
The WaveFiber ONU is built to eliminate bottlenecks, featuring a GPON WAN port and a 2.5 GbE RJ45 LAN port. It supports impressive asymmetrical speeds with a downstream capacity of 2.488 Gbps and an upstream capacity of 1.244 Gbps. This robust throughput is maintained over distances of up to 20 km, making it a versatile solution for both dense urban areas and sprawling rural deployments. Its efficient design is powered by 24V passive PoE, simplifying installation by allowing power and data to be transmitted over a single Ethernet cable.
Seamless Integration and Management
As part of the Ubiquiti ISP ecosystem, the WaveFiber ONU is fully compatible with the UISP platform for centralized network management. This allows for streamlined administration, customer diagnostics, and performance monitoring from a single, intuitive dashboard. The device's compact, minimalist form factor and wall-mountable design ensure it can be discreetly installed in any indoor environment.
Key Features:

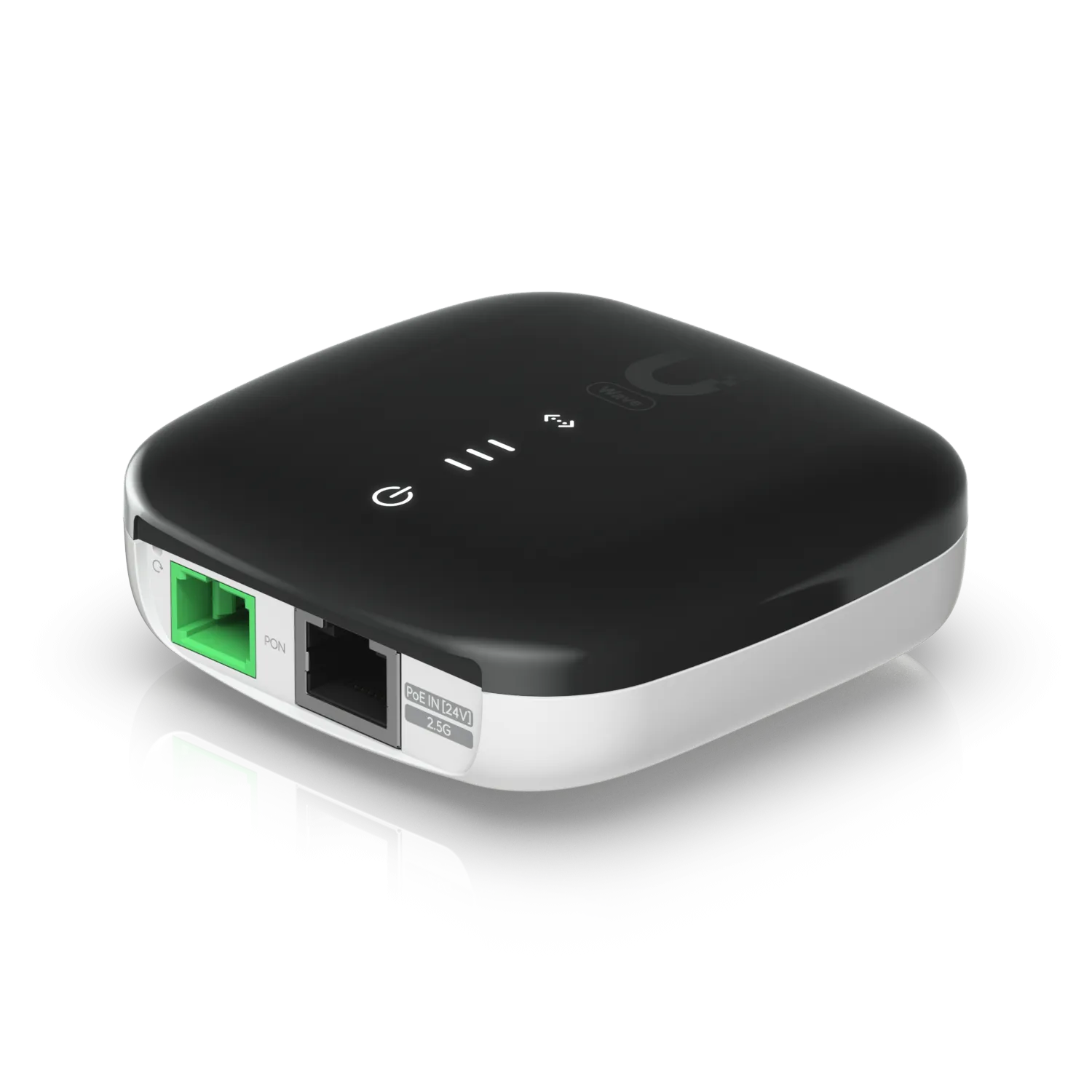

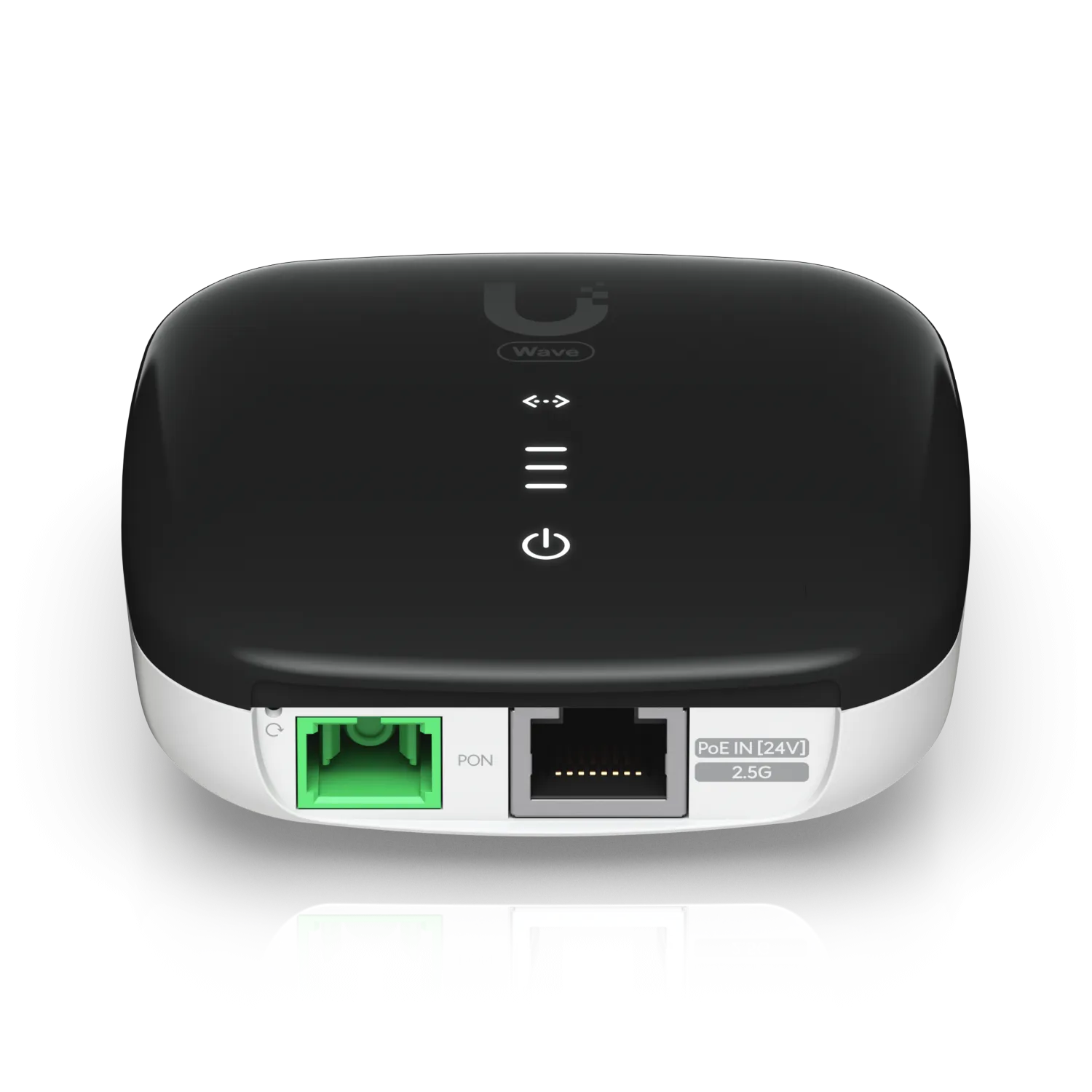

- GPON Connectivity: Features one SC/APC GPON WAN port compliant with ITU-T G.984 standards.
- 2.5 Gbps Ethernet Port: A high-speed RJ45 LAN port supports both 1 Gbps and 2.5 Gbps connections for maximum flexibility.
- High-Speed Data Rates: Delivers up to 2.488 Gbps downstream and 1.244 Gbps upstream.
- Long-Range Reach: Capable of connecting to an OLT from up to 20 km away.
- Passive PoE Powered: Powered by 24V passive PoE for a clean, simplified installation (2-pair pins 4, 5+; 7, 8-).
- Compact & Durable: Housed in a robust polycarbonate enclosure suitable for any indoor setting.
- Centralized Management: Fully compatible with the Ubiquiti UISP application for remote monitoring and configuration.
Technical Specifications
| Hardware | |
|---|---|
| Networking Interfaces | (1) SC/APC, ITU-G.984 GPON WAN Port (1) 1/2.5 GbE RJ45 LAN Port |
| Management Interface | Ethernet In-Band / PON |
| Max. Throughput | Downstream: 2.488 Gbps Upstream: 1.244 Gbps |
| Power Method | 24V Passive PoE (2-pair: 4, 5+; 7, 8-) |
| Supported Voltage Range | 20–28V DC |
| Max. Power Consumption | 5W |
| Button | (1) Factory Reset |
| Fiber Specifications | |
| Operating Wavelength | TX: 1310 nm RX: 1490 nm |
| Optical Range | TX: 1.5 to 5 dBm RX: -8 to -28 dBm |
| Physical Reach | 20 km |
| Physical | |
| Dimensions | 76.5 x 76.5 x 26.4 mm (3 x 3 x 1") |
| Weight | 78 g (2.8 oz) |
| Enclosure Material | Polycarbonate |
| Mounting | Desktop, Wall |
| Operating Temperature | -15 to 45° C (5 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
