Ubiquiti

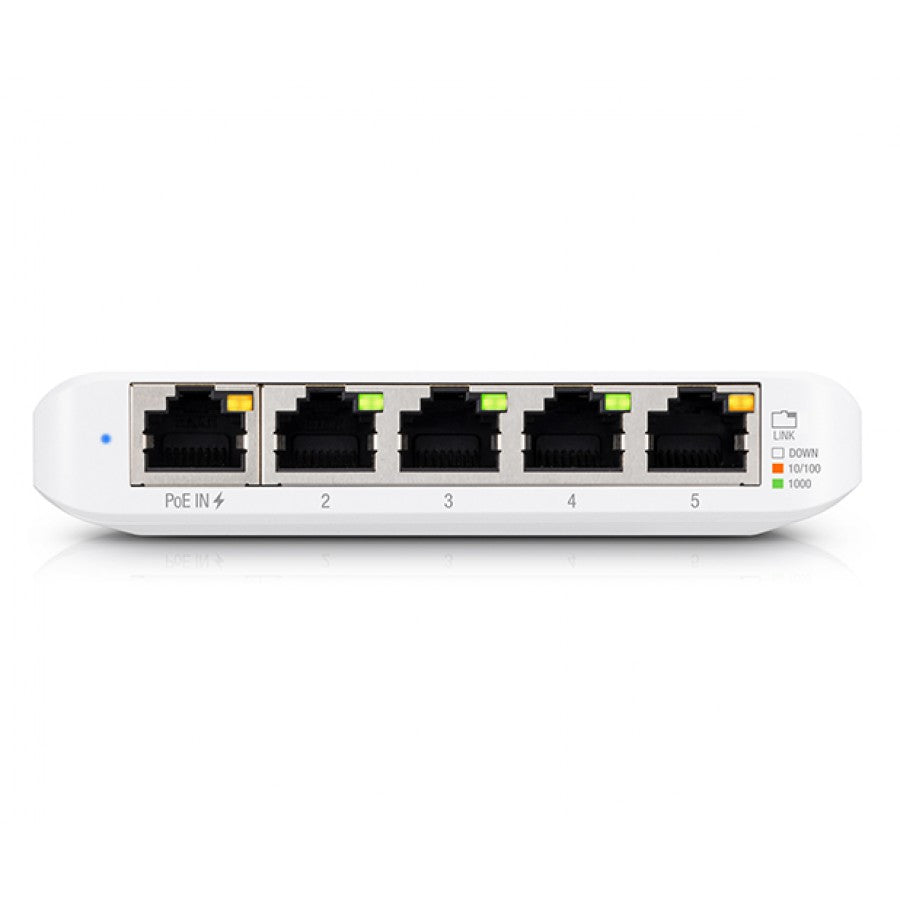

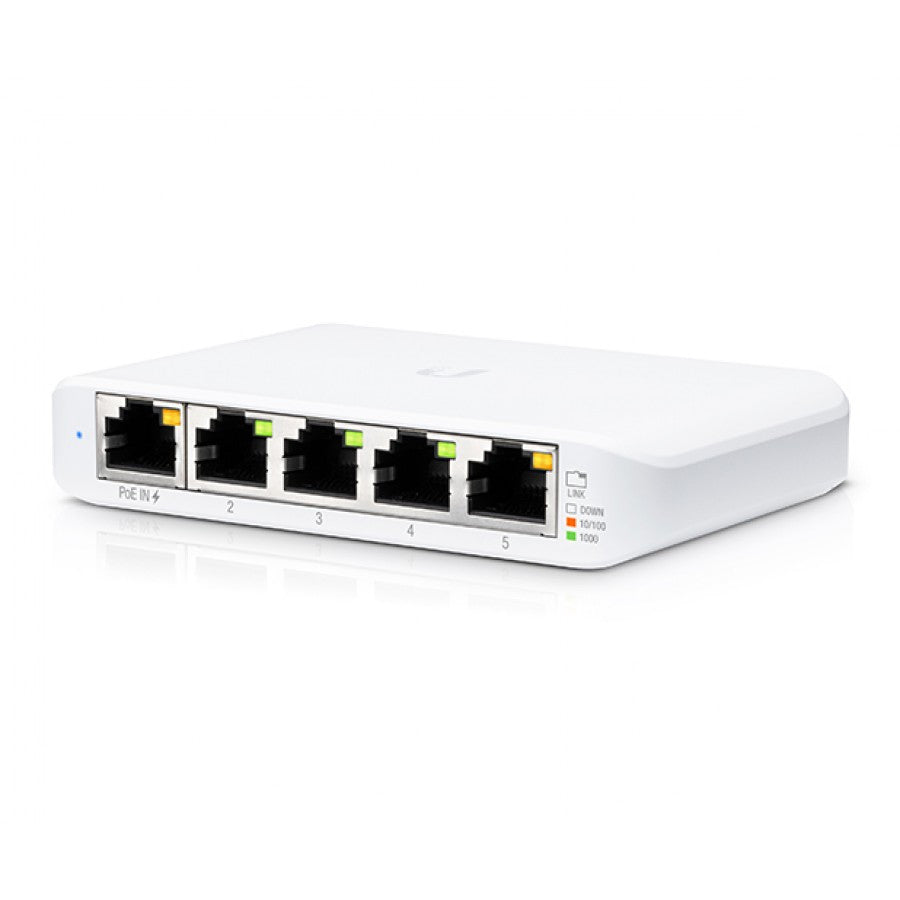

Ubiquiti UniFi Flex Mini 5 Port Gigabit 1PoE Input Switch | USW-Flex-MINI
Pickup available at NexGen Computing
Usually ready in 24 hours
Compact and Versatile Gigabit Switching
Expand your network with the Ubiquiti UniFi Switch Flex Mini (USW-Flex-Mini), a compact and powerful 5-port managed Gigabit Ethernet switch. Part of the UniFi Enterprise System, this switch is engineered for versatility, offering five RJ45 Gigabit Ethernet ports to provide high-speed connectivity to your devices. Its incredibly small form factor allows for discreet placement in any home or office environment, be it on a desktop or mounted on a wall. The USW-Flex-Mini is designed for efficiency, with a maximum power consumption of only 2.5W.
Flexible Powering Options
The UniFi Switch Flex Mini offers convenient powering options to suit your infrastructure. It can be powered via 802.3af/at PoE on port 1, making it ideal for streamlined installations without the need for a separate power adapter. Alternatively, it can be powered using the included 5V, 1A USB-C power adapter. This dual-power capability ensures that the switch can be deployed in a wide variety of scenarios.
Seamless UniFi Network Integration
As part of the UniFi ecosystem, the USW-Flex-Mini is managed through the intuitive UniFi Network Controller software (version 5.12.5 or higher). This powerful platform allows for centralized configuration, monitoring, and management of your UniFi devices from a single control plane. You can easily configure network settings, monitor port status including connection speed and data rates, and implement port-based VLANs.
Robust Performance
Despite its compact size, the USW-Flex-Mini delivers robust performance. It features a total non-blocking throughput of 5 Gbps and a switching capacity of 10 Gbps, ensuring that it can simultaneously process traffic on all ports at line rate without any packet loss. With a forwarding rate of 7.44 Mpps, it provides reliable and efficient data transfer for all your connected devices.
Technical Specifications
| Dimensions | 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83") |
| Weight | 150 g (5.29 oz) |
| Networking Interfaces | (5) 10/100/1000 Mbps RJ45 Ports |
| PoE In Interface | 802.3af/at PoE (Pins 1, 2+; 3, 6-) |
| Management Interface | Ethernet In-Band |
| Total Non-Blocking Throughput | 5 Gbps |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 7.44 Mpps |
| Power Method | USB Type C, 5V 802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A) |
| Power Supply | 5V, 1A Power Adapter (Included with single-pack only) |
| Max. Power Consumption | 2.5W |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
