Ubiquiti

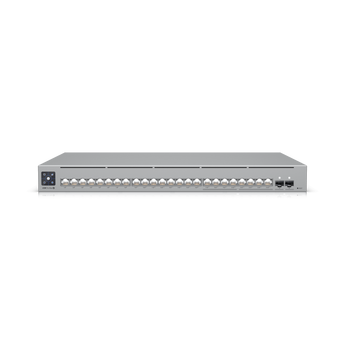

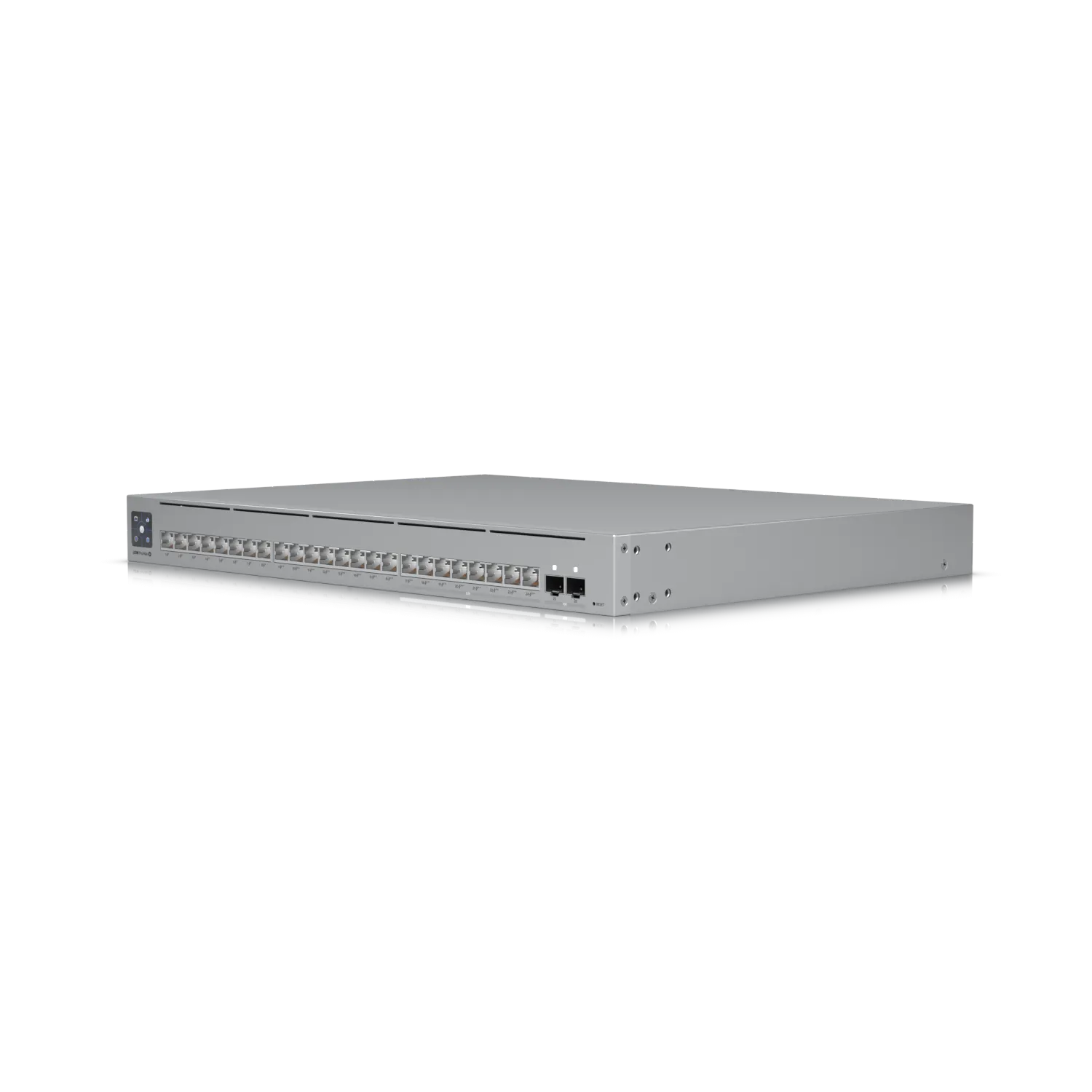

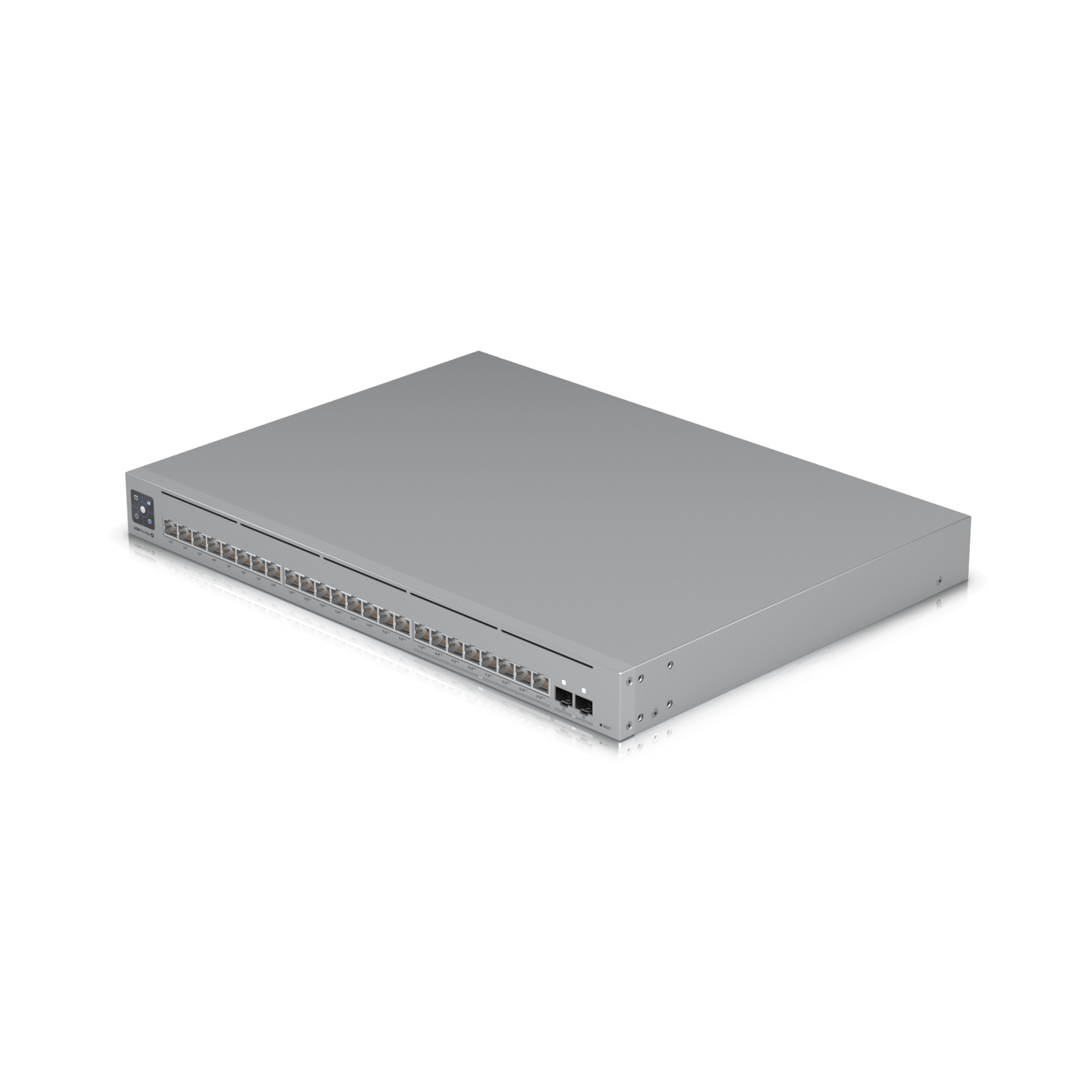

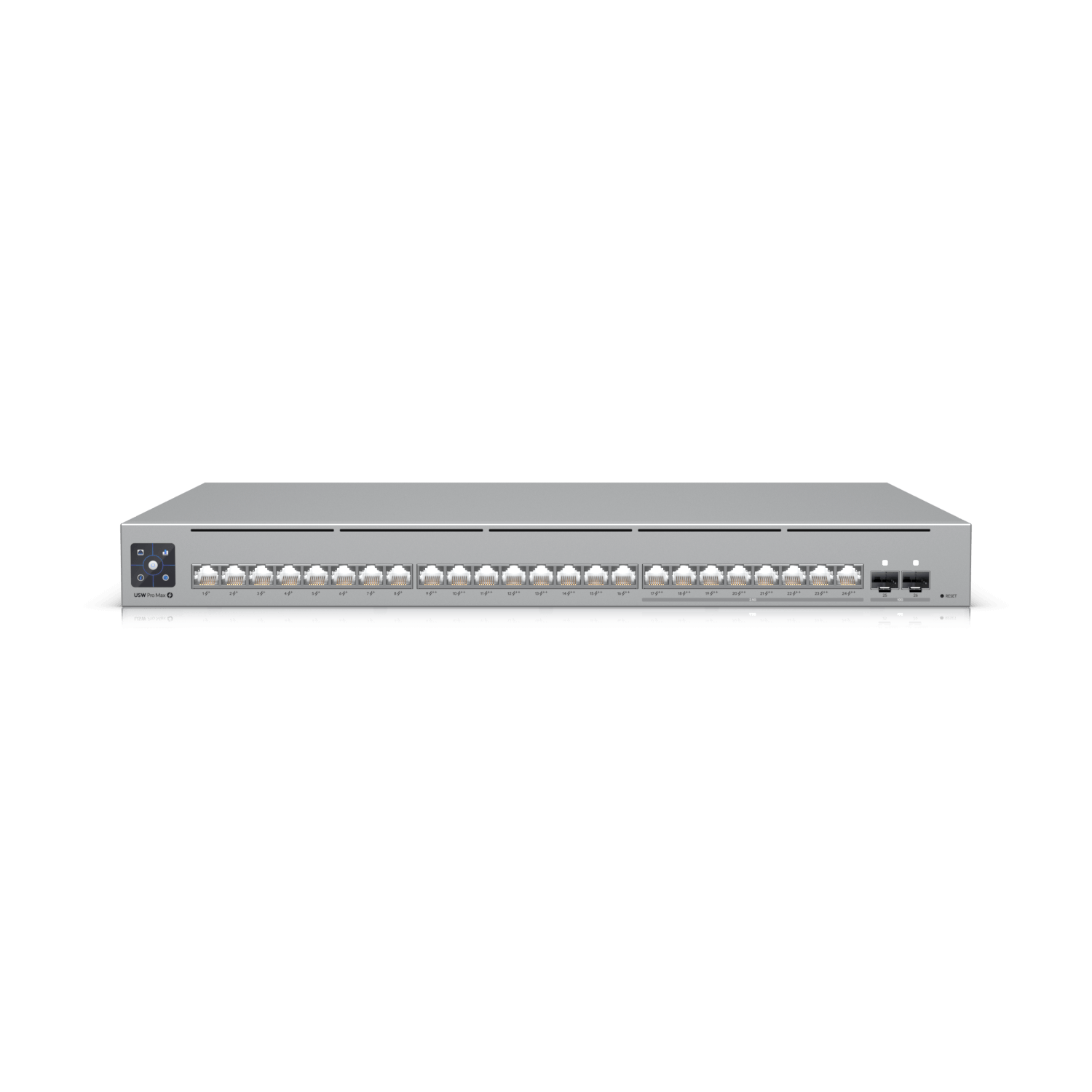

Ubiquiti UniFi Pro Max 24-Port Layer 3 Multi-Gigabit PoE++ Switch
Pickup available at NexGen Computing
Usually ready in 24 hours
Next-Generation Network Power and Intelligence
Elevate your network infrastructure with the Ubiquiti UniFi Pro Max 24 PoE, a high-performance Layer 3 switch engineered for the most demanding environments. This switch is the ultimate solution for powering a new generation of WiFi 6/7 access points, high-resolution IP cameras, and other power-hungry devices. With a massive 400W total PoE budget and a versatile array of multi-gigabit ports, the USW-Pro-Max-24-PoE is built to handle the future of enterprise networking.
Unprecedented PoE and High-Speed Connectivity

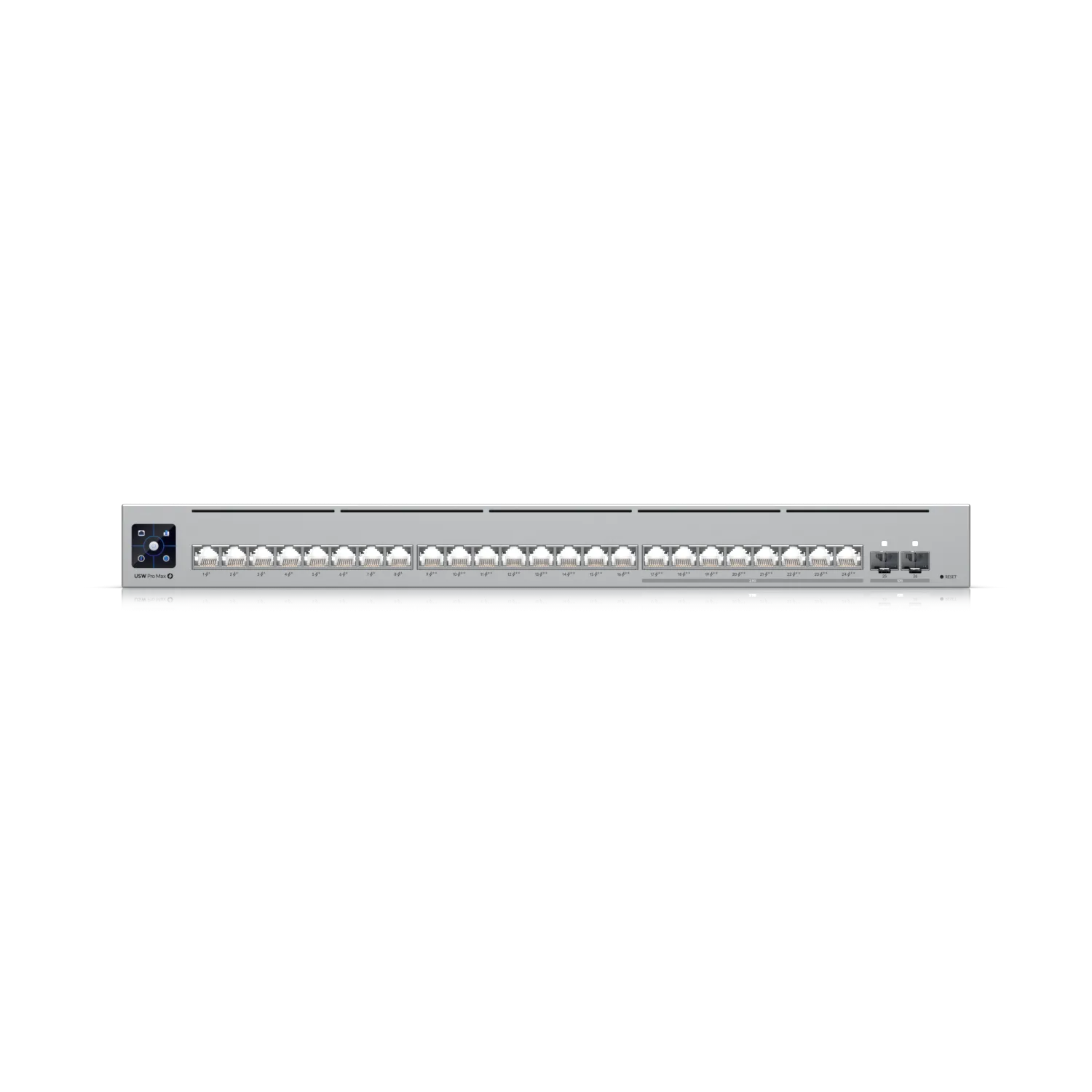

The UniFi Pro Max 24 PoE features a powerful combination of ports to support any device you throw at it. It includes eight 2.5 GbE PoE++ ports and sixteen Gigabit Ethernet ports, with eight providing PoE+ and the other eight delivering full 60W PoE++ power. This ensures you can power everything from standard PoE devices to the most demanding professional equipment. For high-speed uplinks to your core network or storage, two 10G SFP+ ports provide lightning-fast fiber connectivity.
Innovative Etherlighting™ for At-a-Glance Insights
Revolutionize your network management with Ubiquiti's innovative Etherlighting™ technology. These unique illuminated ports provide instant visual feedback on port location, speed, link status, and native VLAN/network, dramatically simplifying troubleshooting and network administration. When paired with UniFi Etherlighting Patch Cables, you'll experience optimal brightness and clarity.
Robust Performance and Layer 3 Flexibility
Engineered for non-blocking performance, the switch boasts a 112 Gbps switching capacity and a 56 Gbps total non-blocking throughput, ensuring all ports can operate at their full potential simultaneously. As a Layer 3 switch, it offers advanced features like inter-VLAN routing, static routing, and DHCP server functionality, providing greater network segmentation and control. The intuitive 1.3" touchscreen display allows for easy monitoring and quick troubleshooting right from the rack.
Centralized Management and Redundancy

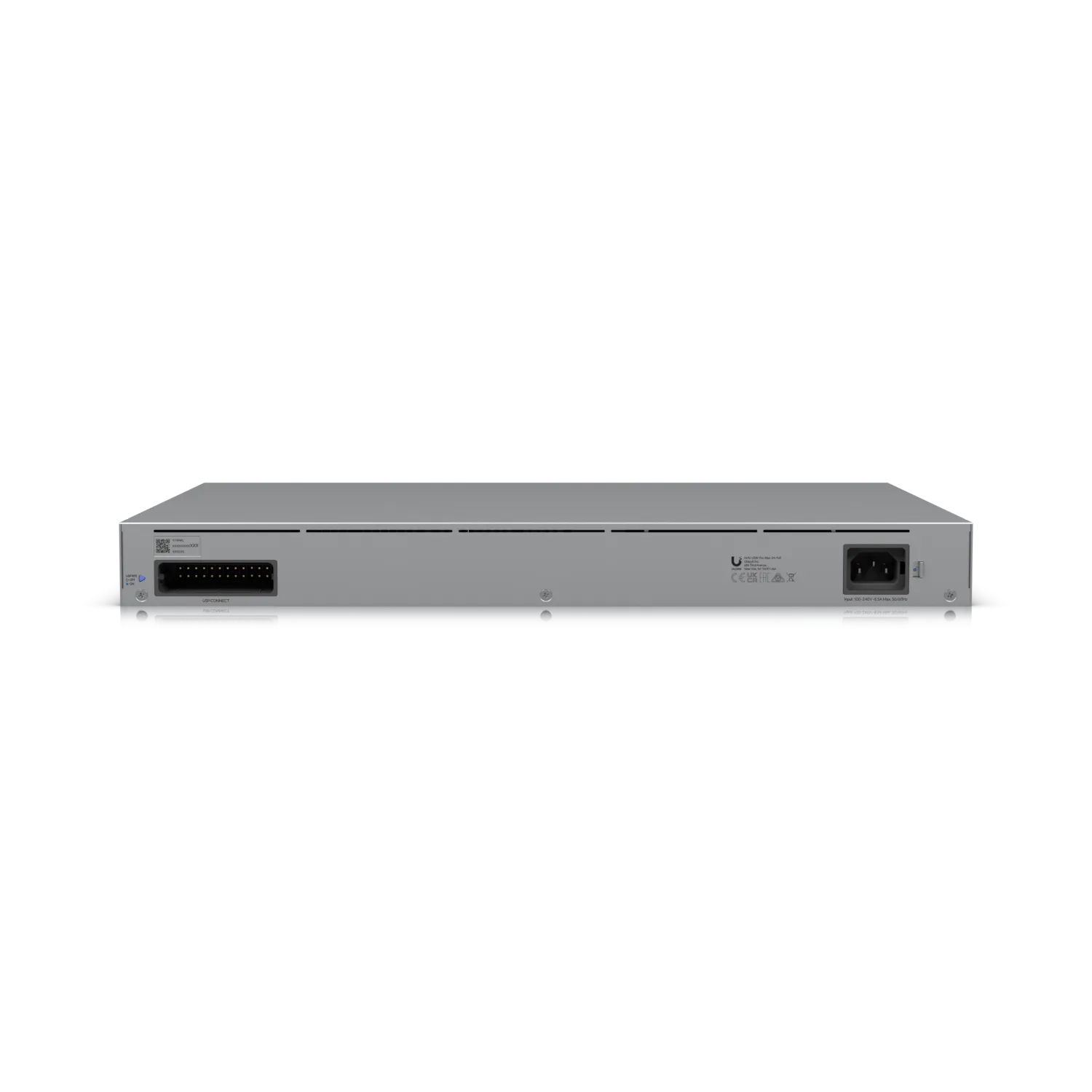

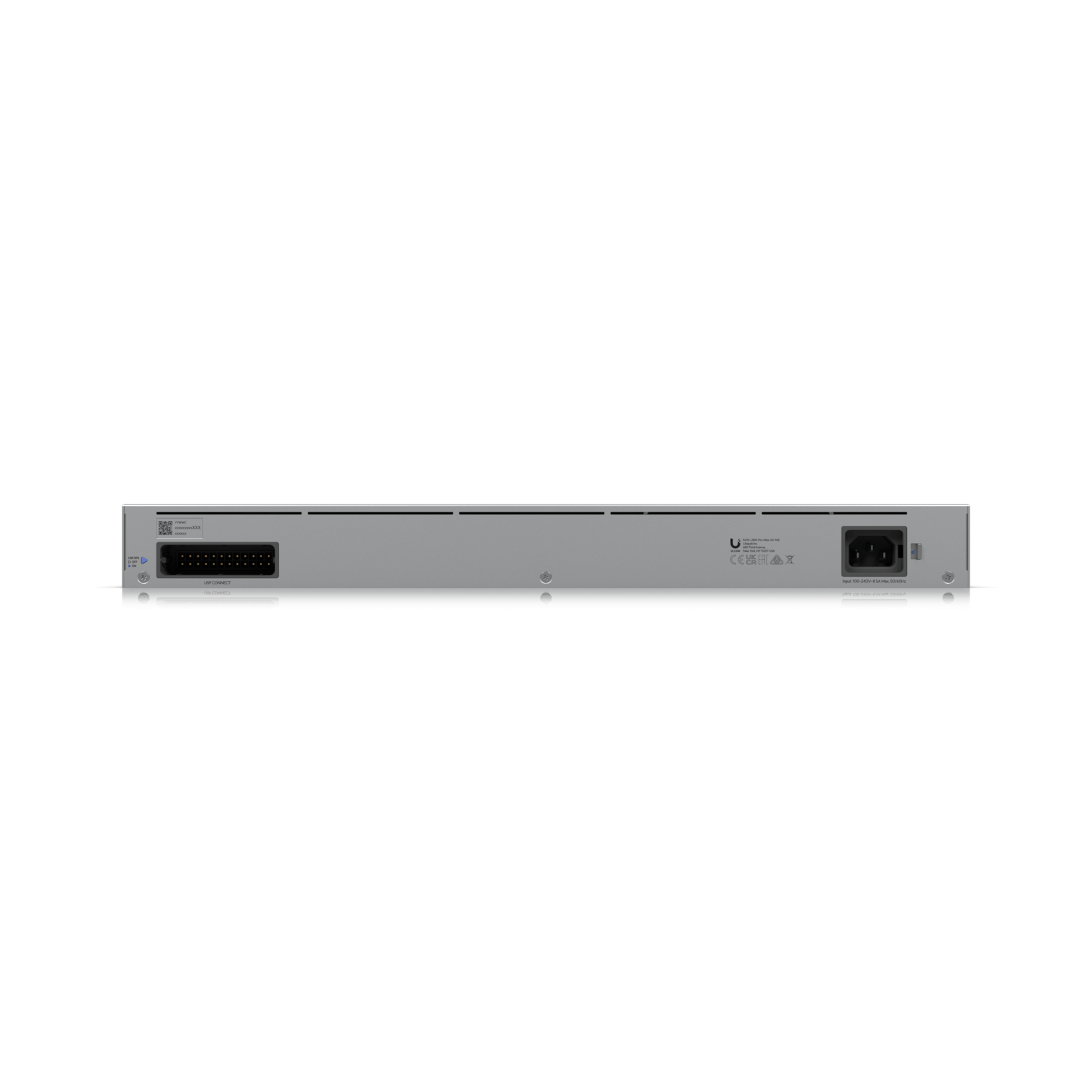

Like all UniFi devices, the Pro Max 24 PoE is seamlessly managed through the centralized UniFi Network Controller. This powerful platform allows for easy configuration, monitoring, and management of your entire network from a single, unified interface. For enhanced reliability, the switch is equipped with a DC power backup input, ready to connect to a UniFi SmartPower RPS for uninterrupted operation during a power outage.
| Hardware | |
|---|---|
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
| Weight | Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb) |
| Enclosure Material | SGCC Steel |
| Management Interface | Ethernet In-Band |
| Networking Interface | (16) GbE RJ45 Ports (8) 1/2.5 GbE RJ45 Ports (2) 10G SFP+ Ports |
| PoE Interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-) (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total Non-Blocking Throughput | 56 Gbps |
| Switching Capacity | 112 Gbps |
| Forwarding Rate | 83.328 Mpps |
| Power Method | (1) Universal AC input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input |
| Power Supply | AC/DC, Internal, 450W |
| Supported Voltage Range | 100—240V AC |
| Max. Power Consumption (Excluding PoE Output) | 50W |
| Total Available PoE | 400W |
| Max. PoE Wattage per Port by PSE | PoE+: 30W PoE++: 60W |
| LCM Display | 1.3" Touchscreen |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 Features | IGMP snooping, STP/RSTP, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, MAC address blocking, Flow control, 802.1X control, Jumbo frames, DHCP snooping/guarding, Egress rate limit, LLDP-MED, and more. |
| Layer 3 Features | DHCP for locally-managed networks, DHCP relay, Inter-VLAN routing, Static routing. |
| Application Requirements | |
| UniFi Network | Version 8.0.24 and later |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
