Ubiquiti

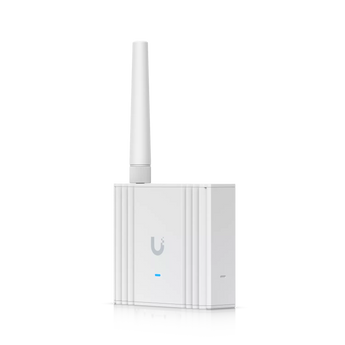

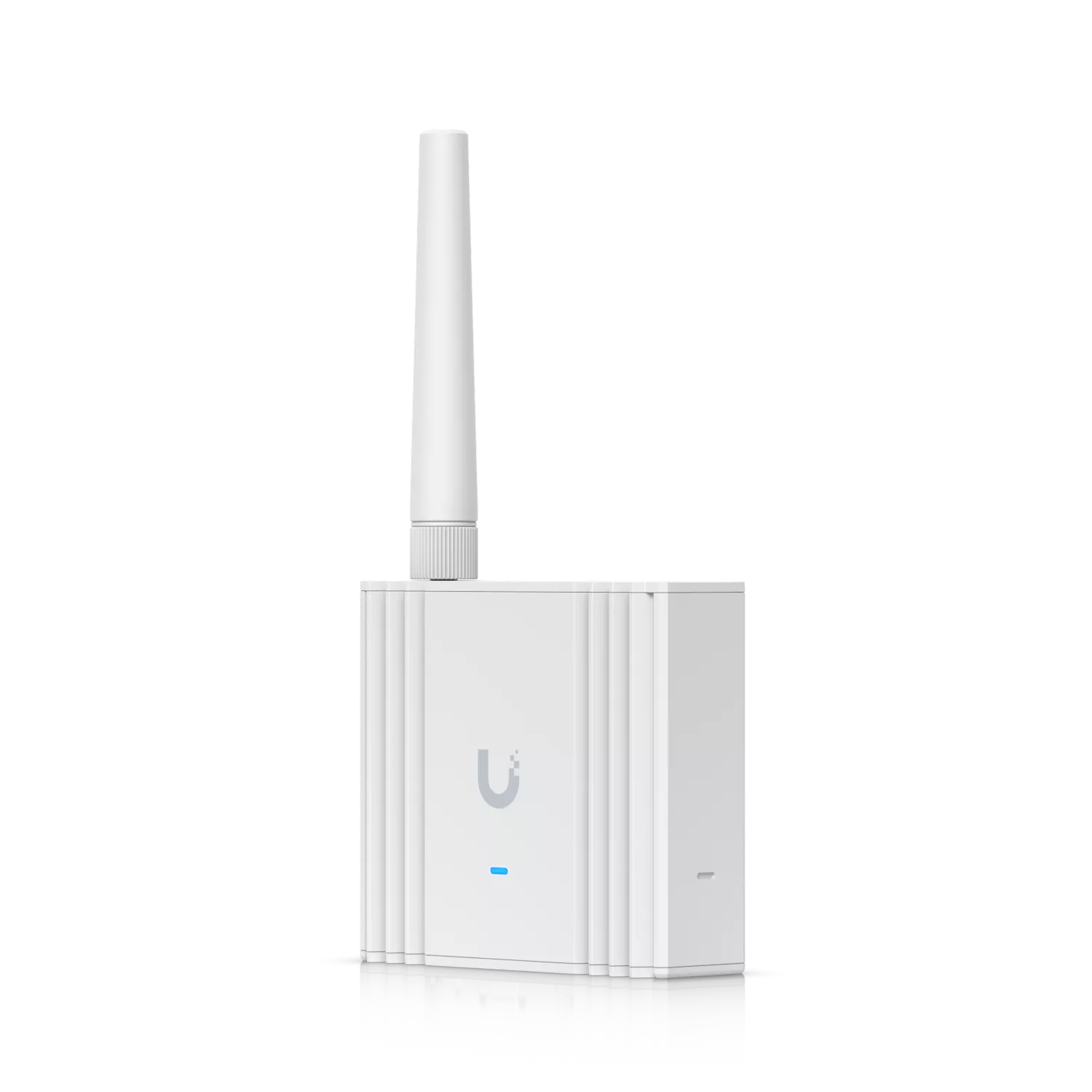

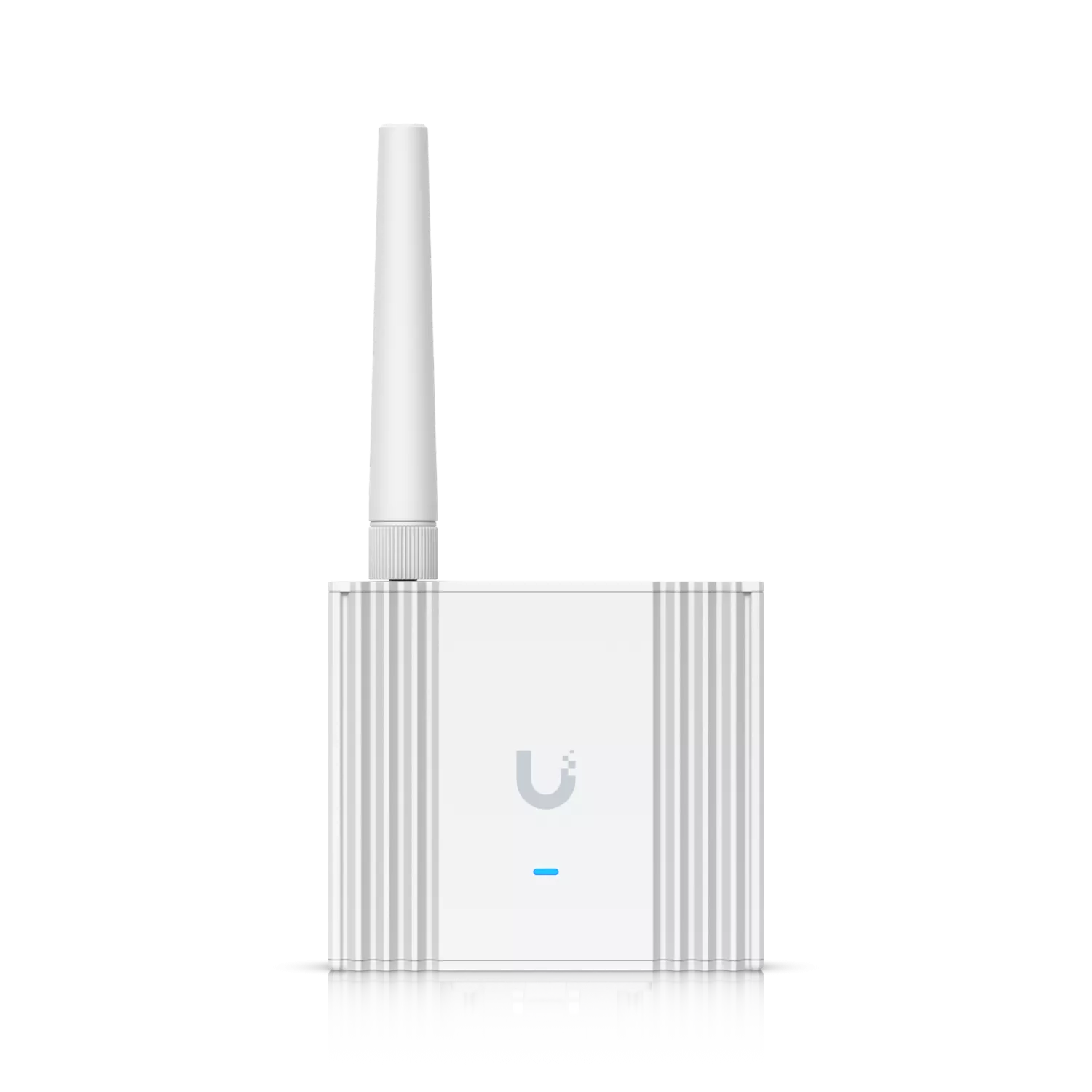

Ubiquiti UniFi Protect Superlink Sensor Gateway
Pickup available at NexGen Computing
Usually ready in 24 hours
Unify and Extend Your UniFi Protect Sensor Network
Introducing the Ubiquiti UniFi Protect Superlink, a high-performance wireless gateway engineered to dramatically extend the reach and reliability of your sensor deployment. Break free from the range limitations of standard Bluetooth. The Superlink utilizes Ubiquiti's proprietary, low-latency SuperLink sub-GHz wireless protocol to achieve an incredible line-of-sight communication range of up to 2 kilometers. This makes it the ultimate solution for large properties, commercial buildings, and industrial sites where sensor data is critical. It ensures your UniFi Protect ecosystem is more versatile and powerful than ever.
Dual-Radio Connectivity for Maximum Compatibility
The UP-Superlink is designed for both the future and the present. It not only supports up to 96 next-generation SuperLink sensors but also provides enhanced connectivity for up to 7 legacy UniFi Protect UP-Sense devices via an integrated Bluetooth 5.2 radio. This dual-radio approach guarantees a seamless and scalable deployment, allowing you to integrate your existing sensors while paving the way for a massive expansion of your security and monitoring capabilities.
Flexible Powering and Installation
Deployment is simple and adaptable to any environment. The UniFi Protect Superlink can be powered via 802.3af Power over Ethernet (PoE) for clean, single-cable installation into your existing network infrastructure. For added flexibility, it also supports USB-C power, allowing for placement in areas without a PoE connection. The package includes both wall-mount and DIN rail mounting brackets, ensuring a secure and professional installation wherever you need it.
Robust and Secure by Design
Built with a premium aluminum alloy and polycarbonate enclosure, the Superlink is made to last. It features robust ESD/EMP protection to safeguard against electrical disturbances. Security is paramount, and the Superlink protocol implements end-to-end encryption and authentication, benefiting from the robust security infrastructure of the UniFi OS to ensure your data transmissions are always protected. The entire system is managed effortlessly through the UniFi Protect web application or mobile app.
| Mechanical | |
|---|---|
| Dimensions | With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1") |
| Weight | 179 g (6.3 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |

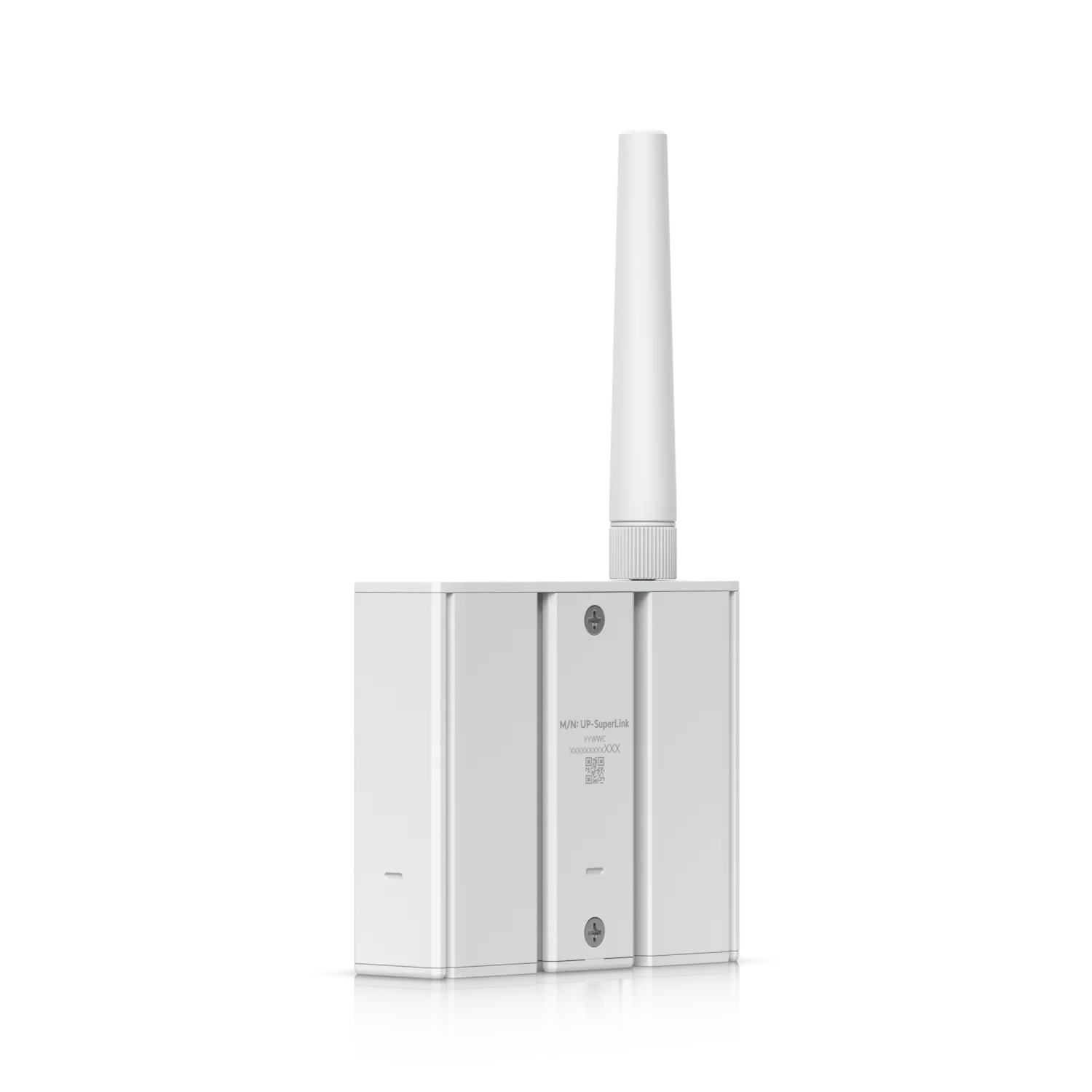

| Mounting | Wall and DIN rail mount (included) |
| Hardware | |

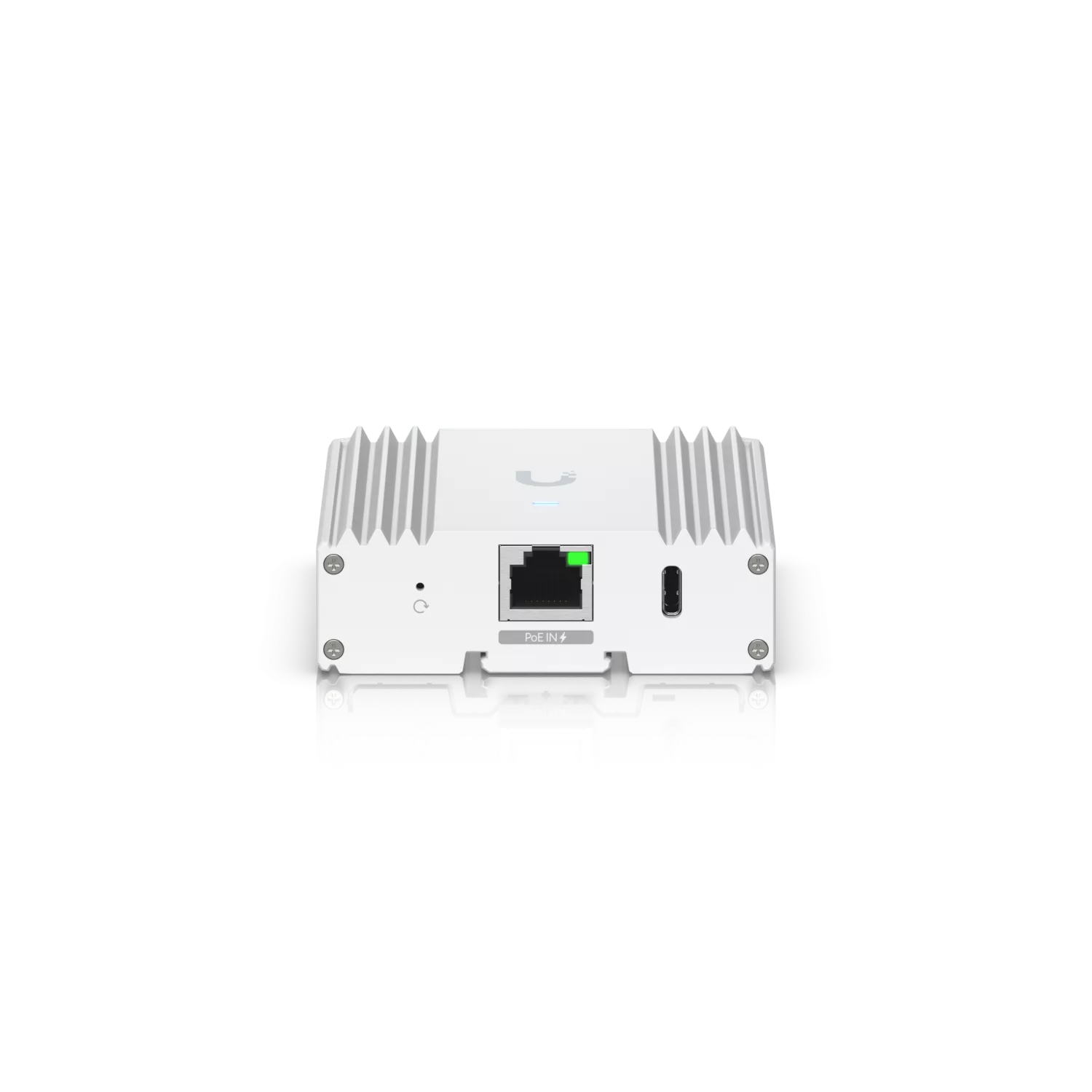

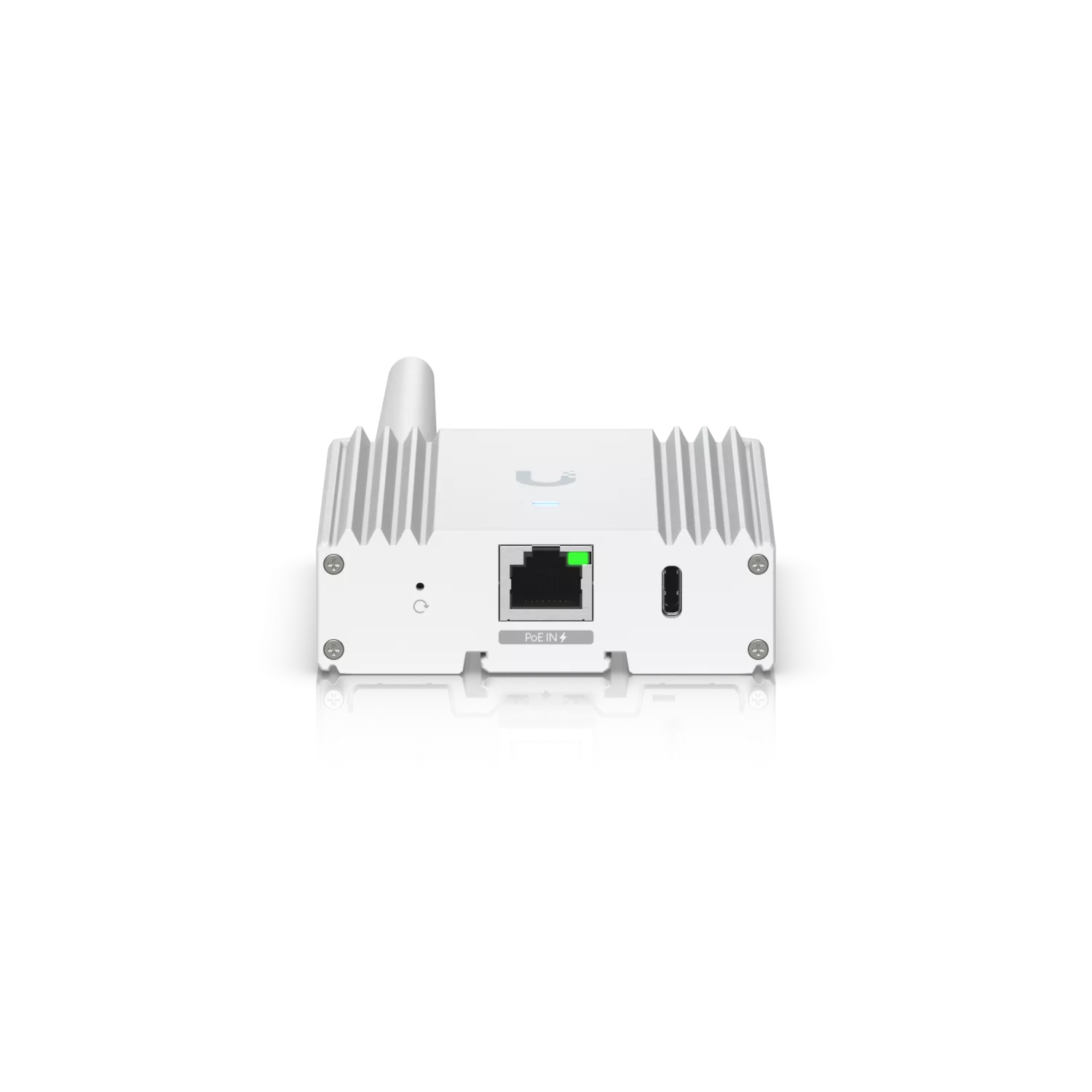

| Networking Interface | (1) 10/100 MbE RJ45 Port |
| Management Interface | Bluetooth 5.2, SuperLink (Proprietary) |
| Power Method | 802.3af PoE or USB Type-C, 5V, 1A (Optional) |
| Max. Power Consumption | 3.4W |
| ESD/EMP Protection | Air: ± 8kV, Contact: ± 4kV |
| Button | (1) Factory reset |
| LED | (1) Status (Blue/White) |
| Wireless Specifications | |
| Max. Client Count | 96 SuperLink Sensors, 7 Bluetooth Sensors |
| SuperLink Max. Range | 2 km (1.2 mi) line-of-sight |
| SuperLink Max. TX Power | 27 dBm |

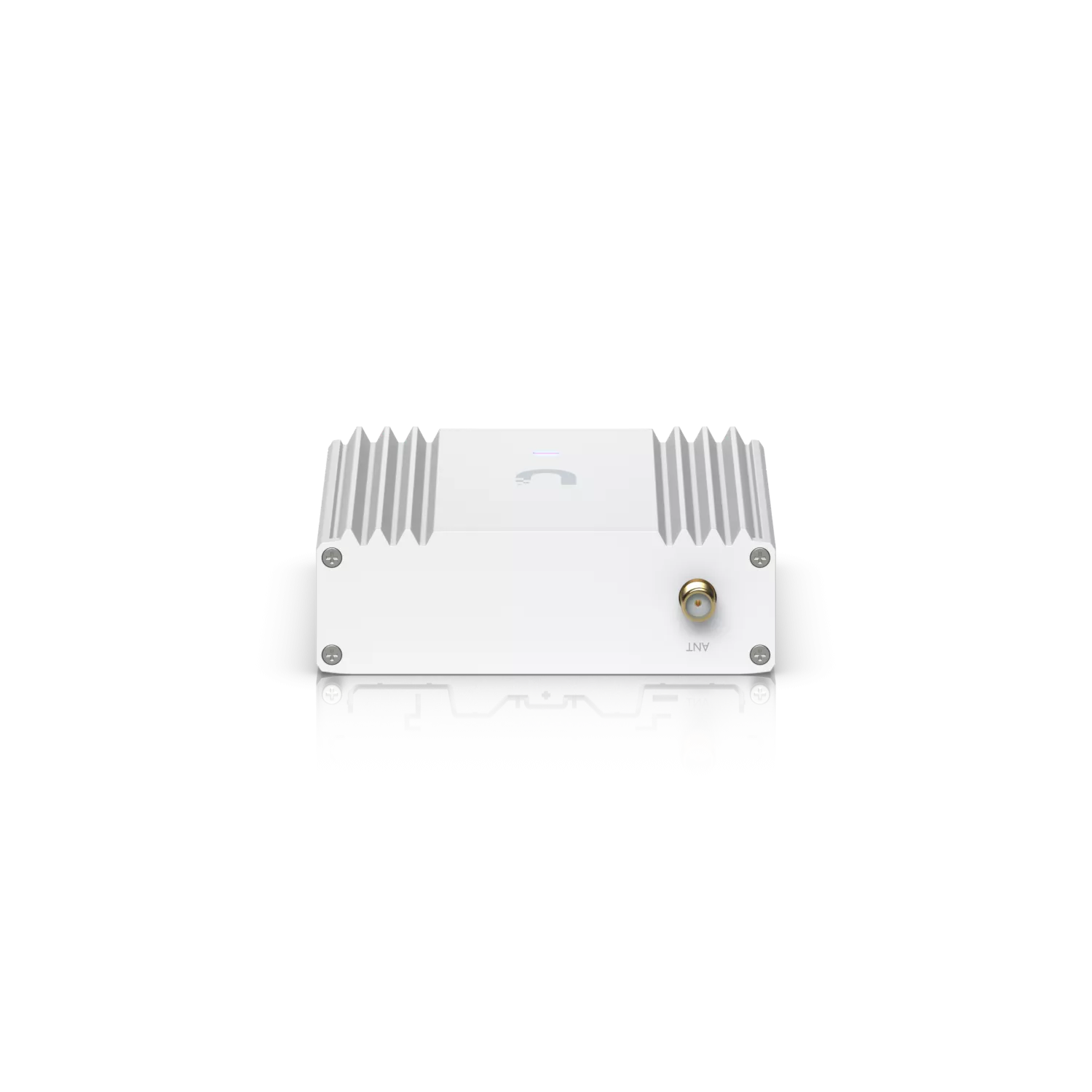

| SuperLink Antenna Gain | 1 dBi / 2 dBi |
| Bluetooth Version | 5.2 |
| Bluetooth Max. TX Power | 10 dBm |
| Bluetooth Antenna Gain | 3 dBi |
| Software & Environment | |
| Management Application | UniFi Protect (Web & Mobile) |
| NDAA Compliant | Yes |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
