Ubiquiti UniFi U7 In-Wall WiFi 7 Access Point with 2.5GbE PoE Switch
Pickup available at NexGen Computing
Usually ready in 24 hours
Next-Generation Wireless for Seamless In-Wall Integration
Transform any space with the Ubiquiti UniFi U7 In-Wall, a high-performance WiFi 7 access point designed for discreet, wall-mounted deployment. Ideal for hospitality, offices, and modern smart homes, this AP delivers ultra-fast, low-latency wireless connectivity while maintaining a sleek, unobtrusive profile. It combines the power of 4-stream WiFi 7 with the convenience of an integrated 2.5 GbE PoE switch, providing robust, high-speed connectivity for both wireless and wired devices.
Unleash the Power of WiFi 7
Experience the future of wireless with WiFi 7 (802.11be) technology. The U7-IW supports dual-band connectivity, reaching impressive data rates of up to 4.3 Gbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band. With coverage of up to 115 m² (1,250 ft²) and the capacity to handle over 200 connected devices, it's built for high-density environments, ensuring reliable performance for everything from 4K/8K streaming to demanding business applications.
Integrated High-Speed Switching

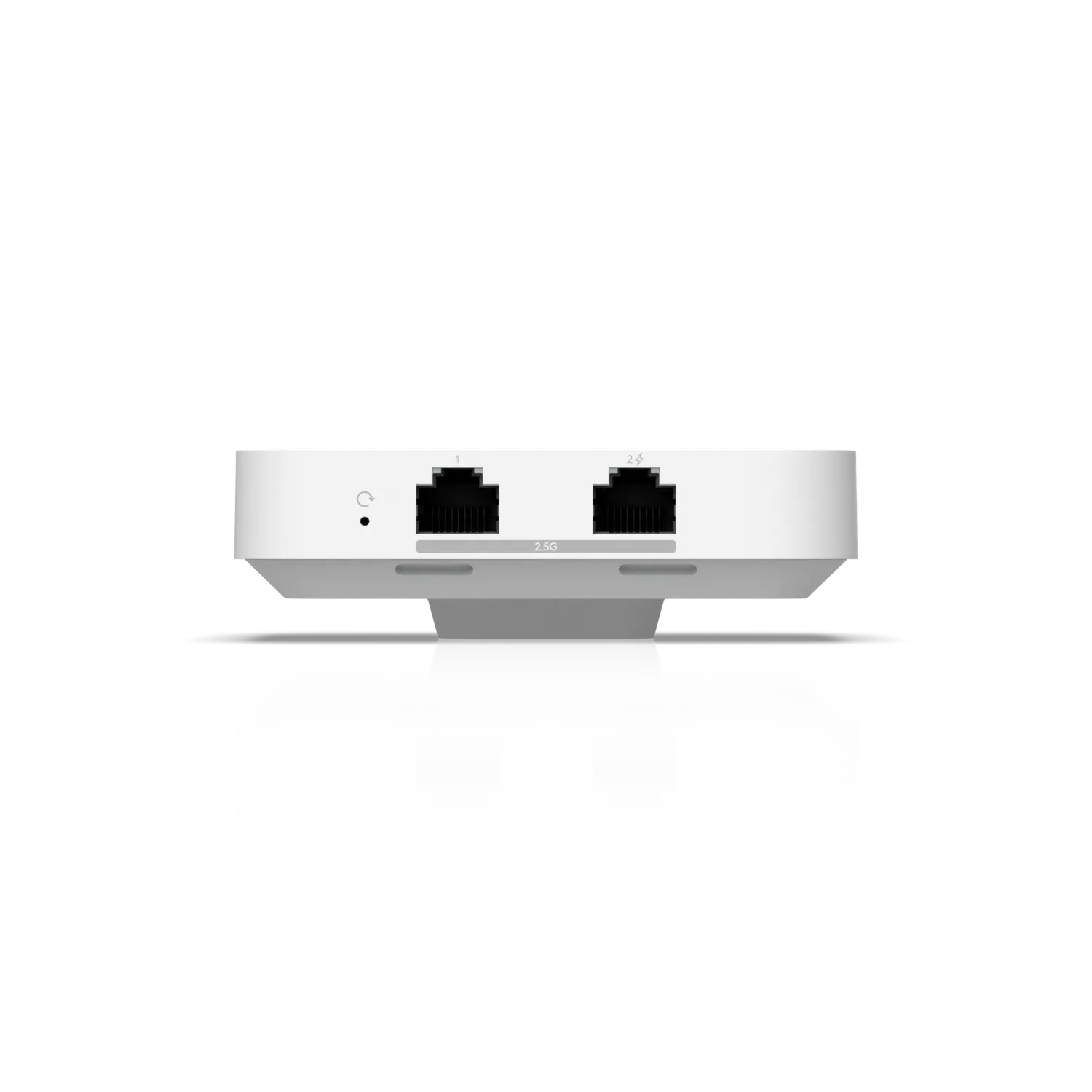

More than just an access point, the U7-IW features a built-in 2.5 GbE switch with three RJ45 ports. It includes a PoE+ input for power and data, and a PoE output to power an additional device like a VoIP phone or security camera, simplifying your installation and reducing cable clutter. This integrated design provides a versatile solution for extending your high-speed network to multiple devices from a single in-wall unit.
| Mechanical | |
| Dimensions | 137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2") |
| Weight | 400 g (14.1 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mounting | Wall mount (Metal wall mount included) |
| Hardware | |
| Networking Interface | (3) 2.5 GbE RJ45 ports |
| Management | Ethernet |
| Power Method | PoE, PoE+ (Required for PoE output) |
| Supported Voltage Range | 42.5—57V DC |
| Max. Power Consumption | 13W (Excluding PoE output) |
| Built-In Switch | (1) PoE+ input and (1) PoE output |
| LEDs | System White/Blue |
| Software & Wireless Performance | |
| WiFi Standard | WiFi 7 (802.11be) |
| MIMO | 2.4 GHz: 2x2 (DL/UL MU-MIMO) 5 GHz: 2x2 (DL/UL MU-MIMO) |
| Max. Data Rate | 2.4 GHz: 688 Mbps 5 GHz: 4.3 Gbps |
| Antenna Gain | 2.4 GHz: 4 dBi 5 GHz: 8 dBi |
| Max. TX Power | 2.4 GHz: 23 dBm 5 GHz: 24 dBm |
| Spatial Streams | 4 |
| Max. Client Count | 200+ |
| Coverage Area | 115 m² (1,250 ft²) |
| Advanced Features | Wireless Meshing, Band Steering, Fast Roaming (802.11r/k/v), Captive Hotspot Portal, Private Pre-Shared Key (PPSK), Dynamic VLAN |
| Environmental & Certifications | |
| Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
