Uniview

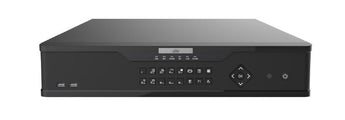

Uniview 16-Channel 4K Network Video Recorder, 40TB Storage
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Capacity, High-Performance 4K Surveillance Hub
Experience robust and reliable surveillance with the Uniview 16-Channel 4K Network Video Recorder. Designed for professional-grade security applications, this NVR supports up to 16 IP cameras with recording resolutions up to 12 megapixels, ensuring you capture every detail in stunning clarity. Its dual 4K HDMI outputs allow for ultra-high-definition monitoring, providing a crystal-clear view of your premises.
Advanced Features for Uncompromised Security
This NVR is equipped with cutting-edge features to deliver a comprehensive security solution. The Ultra 265 video compression technology significantly reduces bandwidth and storage consumption without sacrificing video quality. With four SATA HDD bays, each supporting up to 10TB, you get a massive 40TB of total storage capacity. ANR (Automatic Network Replenishment) technology guarantees data integrity by storing footage on your cameras' SD cards during a network outage and transferring it back to the NVR once the connection is restored.
Seamless Integration and Reliability
The Uniview NVR304-16X offers broad compatibility with third-party IP cameras thanks to its ONVIF conformance (Profiles S, G, and T). For enhanced data protection, this NVR supports RAID 1 and 5 configurations, safeguarding your recordings against hard drive failure. Additionally, it features various fisheye dewarping modes for a more natural and comprehensive view from panoramic cameras.
Technical Specifications
| Video/Audio Input | |
| IP Video Input | 16-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 384Mbps |
| Outgoing Bandwidth | 384Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI1/VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI2: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30 |
| Hard Disk | |
| SATA | 4 SATA interfaces |
| Capacity | Up to 10TB for each disk |
| External Interface | |
| Network Interface | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
| General | |
| Power Supply | 12V DC |
| Power Consumption | ≤ 20W (without HDD) |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 442mm × 426mm × 89mm (17.4" × 16.8" × 3.5") |
| Weight (without HDD) | ≤ 5.7Kg (12.57lb) |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
