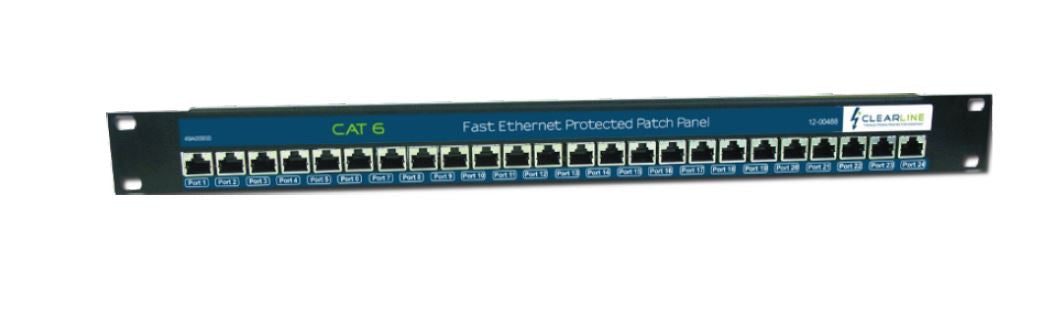

Clearline 24-Port Gigabit PoE Rackmount Network Surge Protector Patch Panel
Pickup available at NexGen Computing
Usually ready in 24 hours
Ultimate 24-Port Network and PoE Surge Protection
Safeguard your mission-critical network infrastructure with the Clearline 24-Port Gigabit Rackmount Surge Arresting Patch Panel. This unit is expertly engineered to provide a robust, all-in-one solution for protecting your sensitive and valuable LAN equipment, such as hubs, switches, IP PoE cameras, and network interface cards, from the damaging effects of induced lightning, electrostatic discharge (ESD), and other power surges. By integrating comprehensive surge protection directly into a high-performance CAT 6 patch panel, you can ensure maximum uptime, data integrity, and equipment longevity.
Comprehensive Multi-Stage Protection
This surge arrestor employs a multi-stage protection strategy to defend your network. It features a coarse protection stage capable of handling a maximum discharge current of up to 10kA, followed by a fine protection stage for smaller, more precise threats. With a low clamping voltage of under 60V, it acts swiftly to neutralize power anomalies before they can reach your devices. Protection is applied to all 8 lines (all 4 pairs), ensuring complete security for both data and Power over Ethernet (PoE) connections.
High-Speed, Uninterrupted Performance
Designed for modern high-speed networks, this patch panel supports Category 6 configurations and is fully compatible with 100Base-T and 1000Base-T (Gigabit) Ethernet standards. The design ensures negligible insertion loss, meaning your network performance remains fast and reliable without bottlenecks. It is the ideal solution for maintaining the performance of your Gigabit and PoE-enabled devices without compromise.
Professional Rackmount Installation
The unit is built into a standard 19-inch, 1U rack-mountable chassis for seamless integration into your existing server racks and network cabinets. Floor point cables are terminated via industry-standard IDC connectors on the rear, while the front panel provides 24 RJ45 sockets for easy patching to your network switches and other equipment. This clean, professional setup simplifies cable management and consolidates protection in one convenient location.
Technical Specifications
| General Specifications | |
|---|---|
| Product Code | CL-GPOE-RMSA-24 |
| Ports | 24 |
| Form Factor | 19-inch 1U Rackmount |
| Connectors | RJ45 Sockets (Front), IDC Connectors (Rear) |
| Surge Protection | |
| Protected Pairs | 1-2, 3-6, 4-5, 7-8 (All 8 lines) |
| Clamping Voltage | <60V (1.2/50) |
| Maximum Discharge Current (Coarse) | 10kA (8/20) |
| Maximum Discharge Current (Fine) | 300A (8/20) |
| Network Performance | |
| Standards Compliance | IEEE 802.3, IEEE 802.3u (100Base-T, 1000Base-T) |
| Cabling Support | Category 6 (CAT 6) |
| Test Frequencies | 100/250 MHz |
| Insertion Loss | Negligible |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
