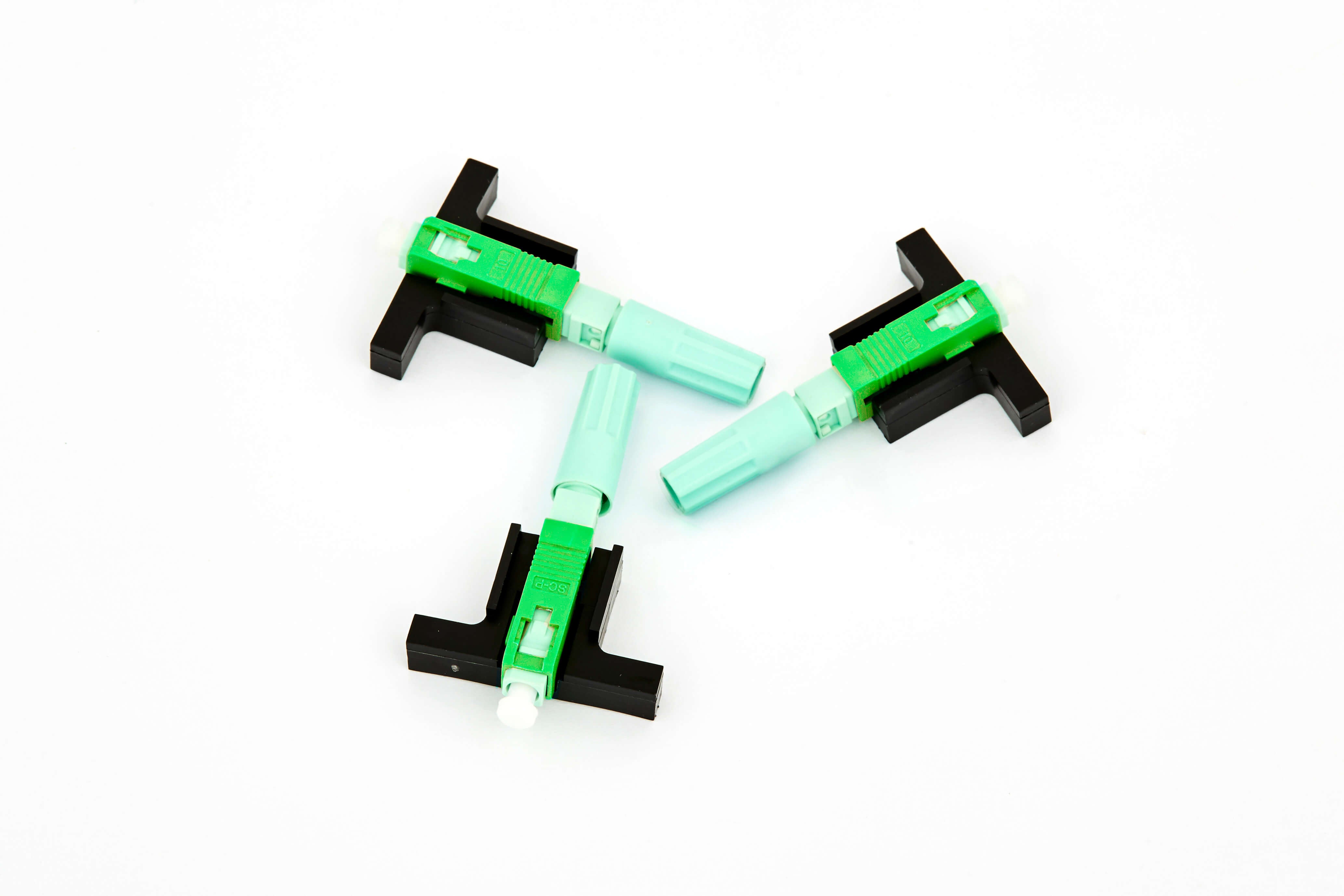

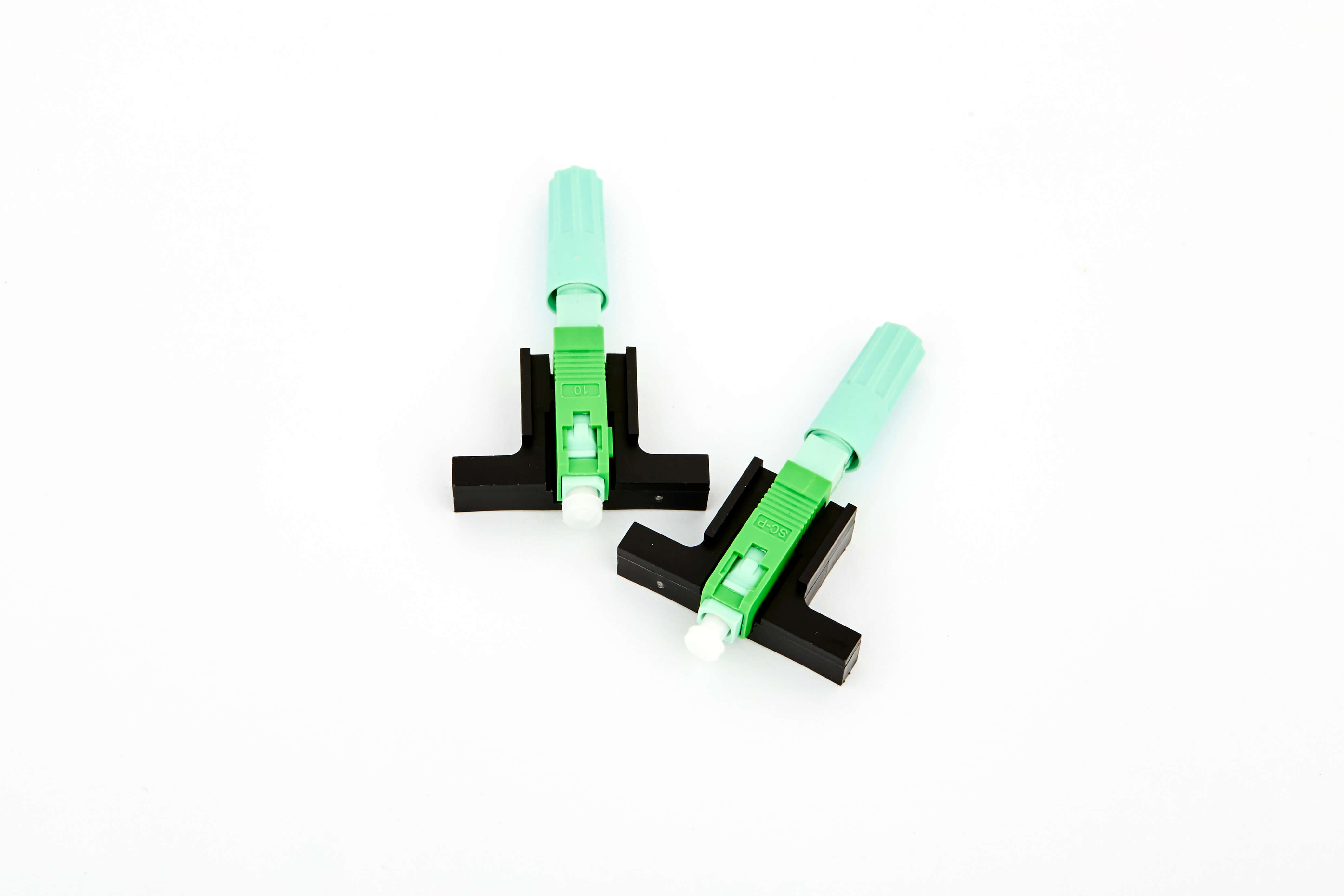

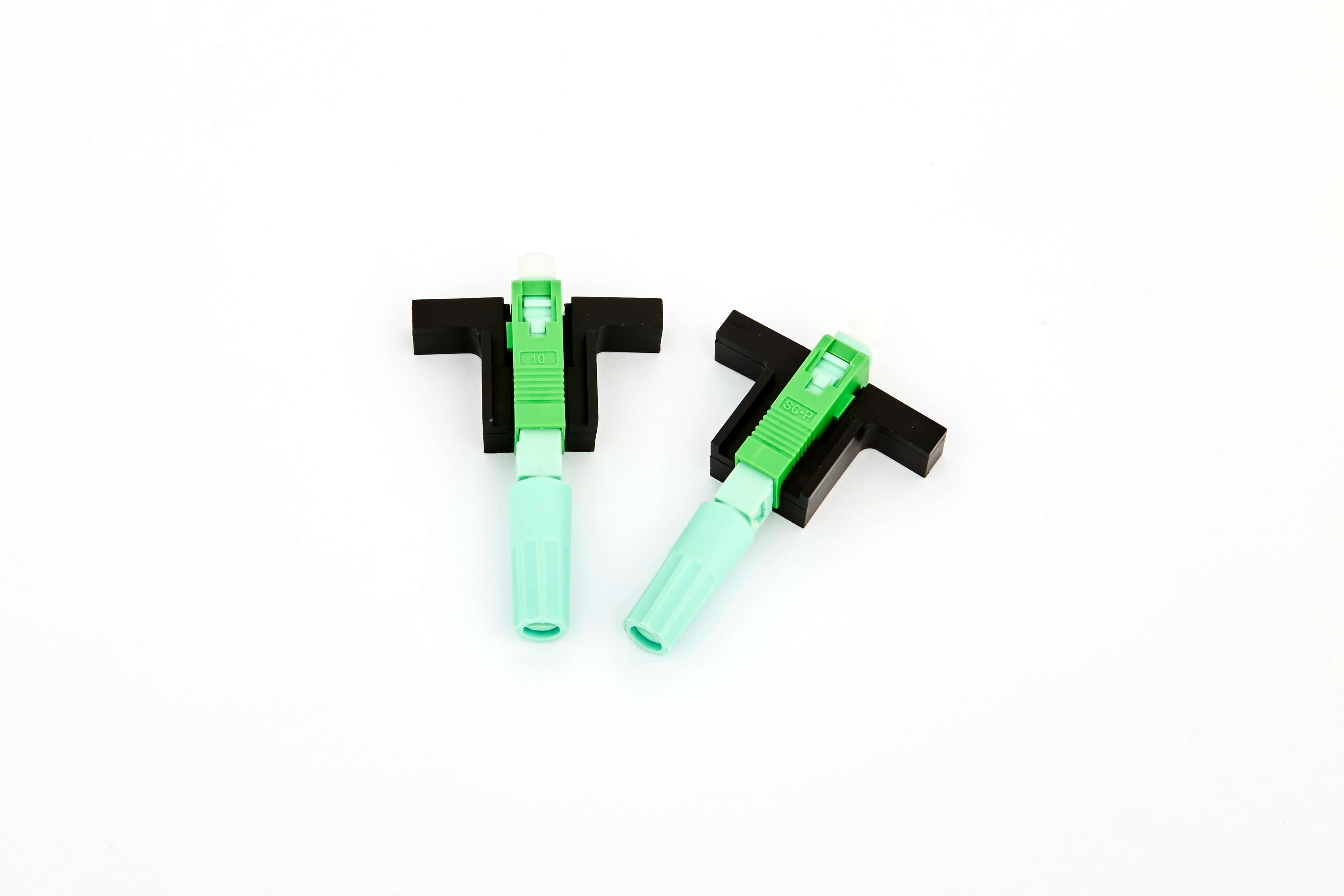

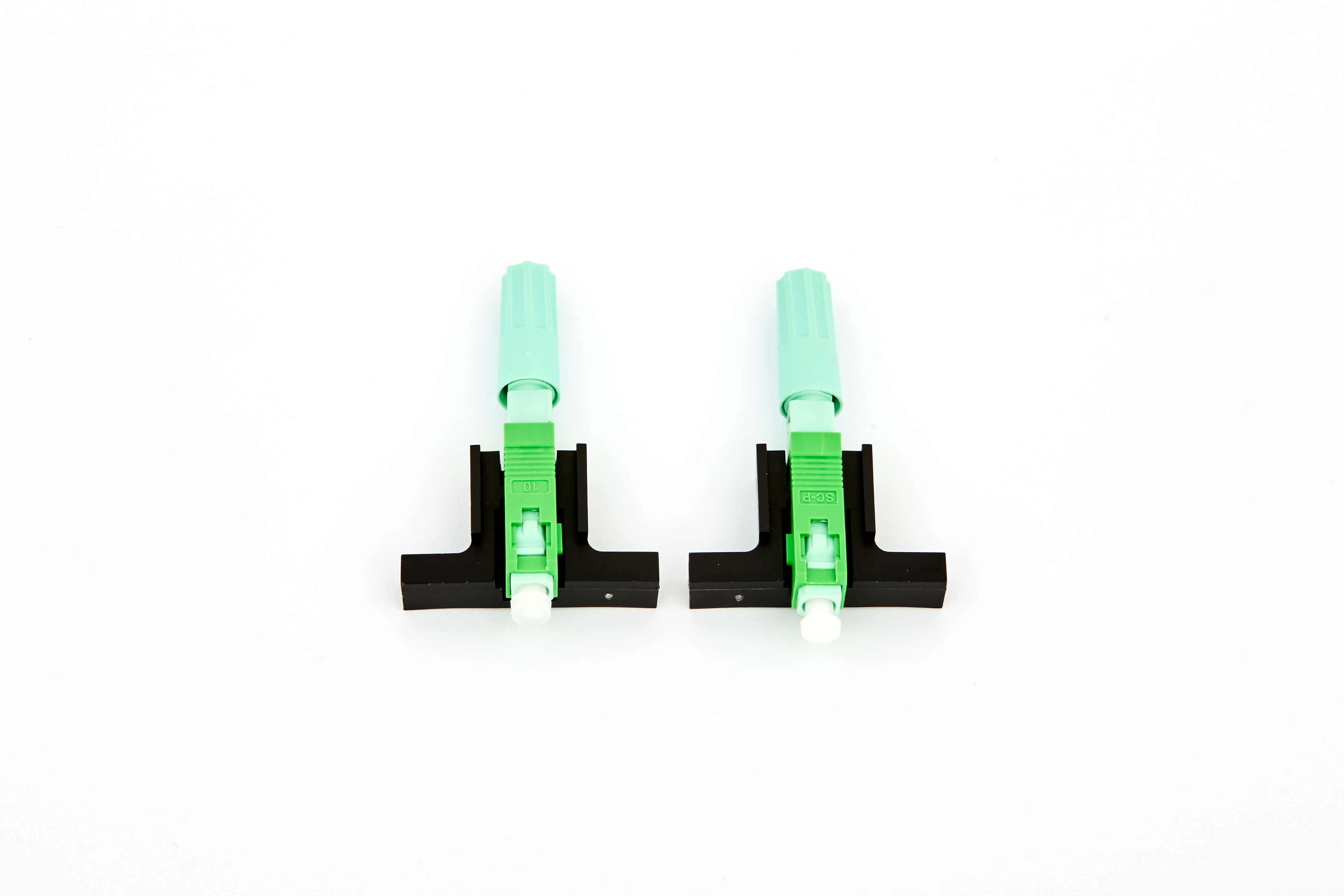

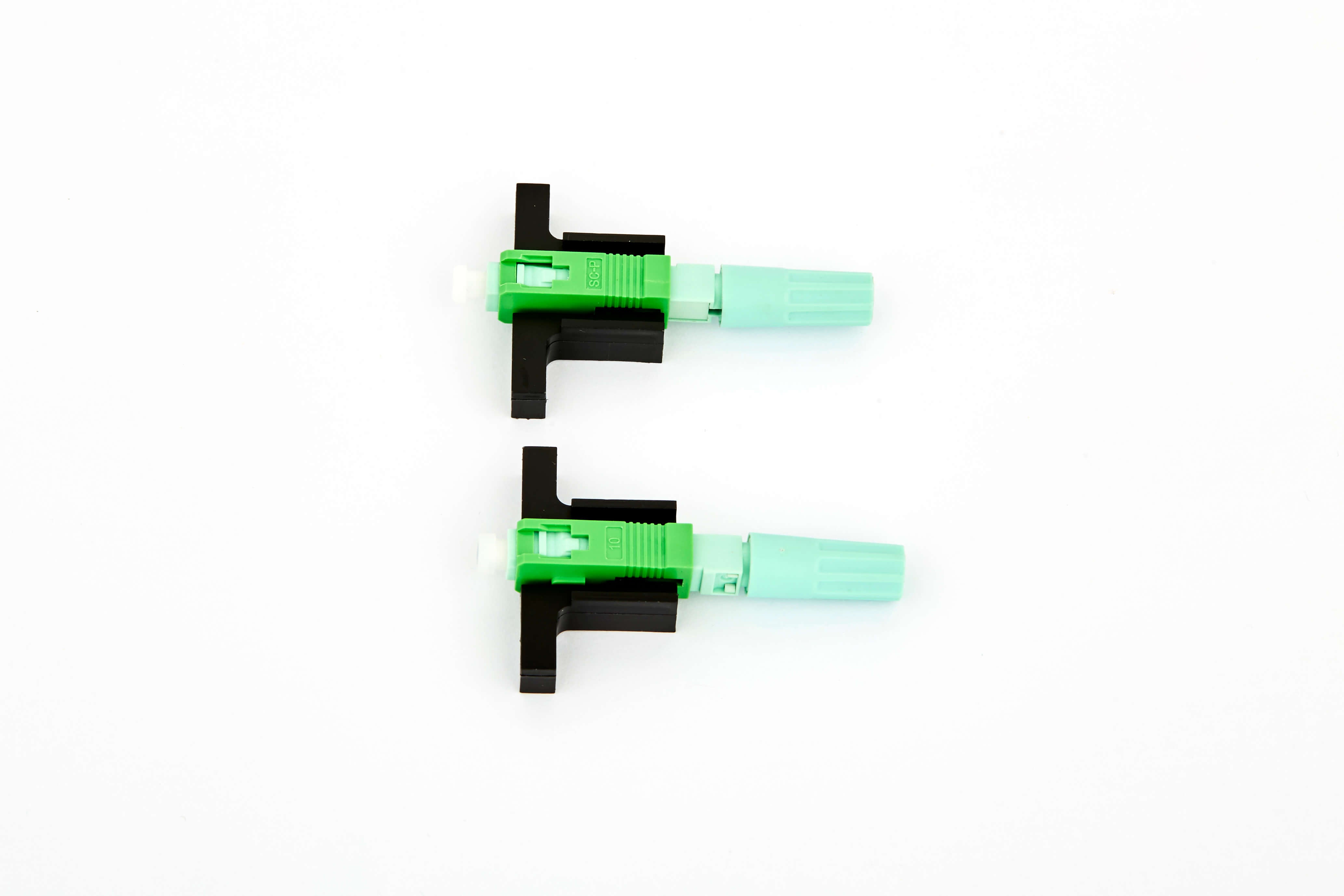

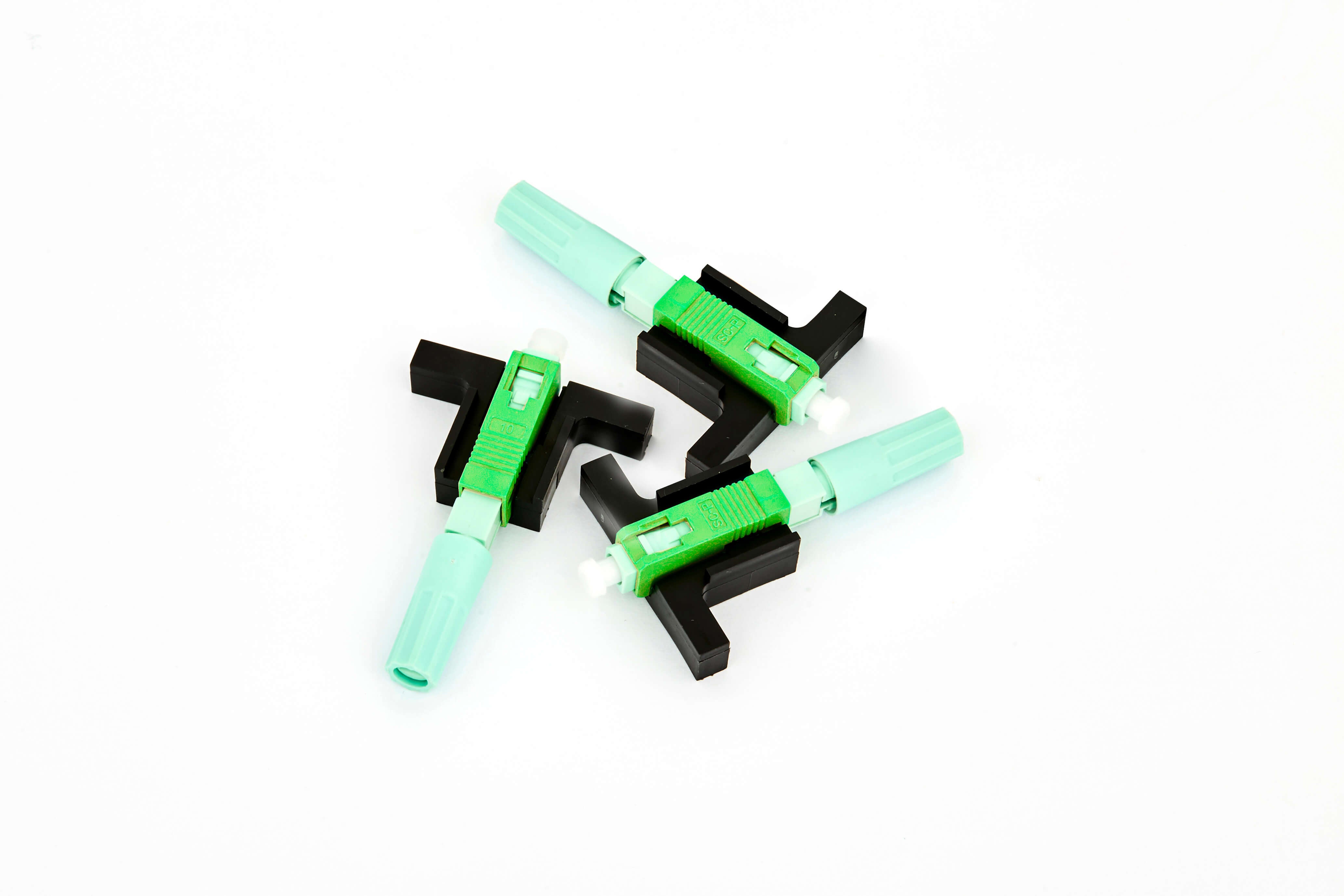

Acconet SC/APC Single-Mode Fast Connector
Pickup available at NexGen Computing
Usually ready in 24 hours
Effortless, High-Performance Fiber Terminations
Achieve rapid and reliable fiber optic connections with the Acconet SC/APC Fast Connector. Designed for field technicians and network installers, this connector eliminates the need for polishing, epoxy, or specialized crimping tools, enabling swift, on-the-spot terminations in under two minutes. It is the ideal solution for Fiber-to-the-Home (FTTH) deployments, network repairs, and LAN or telecommunication applications where speed and precision are paramount.
Precision Engineered for Superior Signal Integrity
The Acconet Fast Connector features a pre-polished zirconia ceramic ferrule with an Angled Physical Contact (APC) end-face. This precision 8-degree angle significantly minimizes back reflection, delivering an exceptional return loss of over 55dB. Combined with a low insertion loss of less than 0.3dB, this connector ensures a stable, high-quality signal transmission, making it perfect for high-bandwidth data and video applications. Its proven mechanical splice technology guarantees precise fiber alignment for consistent, low-loss performance.
Key Features
- No Polishing or Epoxy Required: Factory pre-polished ferrule allows for quick and clean field installation without special tools.
- Superior Optical Performance: Low insertion loss (≤0.3dB) and high return loss (≥55dB) for a clear, uninterrupted signal.
- Rapid Assembly: Terminate a fiber in under two minutes, drastically reducing installation time and labor costs.
- High Reliability: Features a precision zirconia ceramic ferrule and a robust design for durable, long-lasting connections.
- Wide Operating Range: Built to perform in harsh conditions with an operating temperature range of -40°C to +85°C.
- Versatile Application: Compatible with standard 9/125μm single-mode fiber and 2.0x3.0mm drop cables, ideal for FTTH, LAN, and data centers.
Technical Specifications
| Optical Characteristics | |
|---|---|
| Connector Type | SC (Subscriber Connector) |
| Polish Type | APC (Angled Physical Contact) |
| Fiber Mode | Single-Mode (SM) 9/125µm |
| Insertion Loss (IL) | ≤ 0.3dB (Typical), ≤ 0.5dB (Max) |
| Return Loss (RL) | ≥ 55dB |
| Mechanical & Environmental | |
| Applicable Cable | 2.0x3.0mm FTTH Drop Cable, 0.9mm Buffer Cable |
| Ferrule Material | Zirconia Ceramic |
| Installation Time | Less than 2 minutes (no special tools) |
| Tensile Strength | > 30N |
| Durability | > 500 matings |
| Operating Temperature | -40°C to +85°C |
| Physical Details | |
| Housing Color | Green (Standard for APC) |
| Brand | Acconet |
| SKU | AC-FIB-CON-FAST-SC-A |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
