Acconet

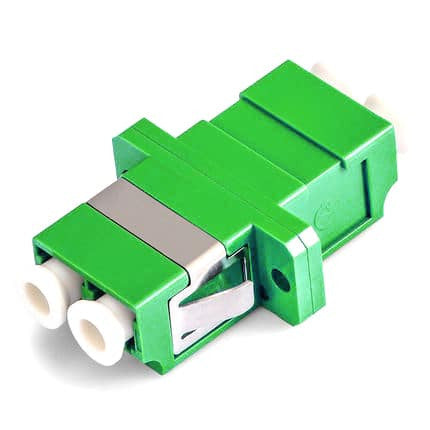

Acconet LC/APC to LC/APC Duplex Single-Mode Fiber Optic Coupler
Pickup available at NexGen Computing
Usually ready in 24 hours
Precision Fiber Optic Connectivity for Demanding Networks
Achieve seamless, high-integrity connections in your single-mode fiber optic network with the Acconet LC/APC Duplex Mid Coupler. This precision-engineered adapter is designed to join two duplex LC/APC fiber patch cables with minimal signal loss, ensuring maximum performance and reliability for your critical data transmission. Its high-quality construction makes it an ideal choice for telecommunications, data centers, FTTx, and CATV applications where signal clarity and stability are paramount.
Superior Performance and Durability
Featuring a high-precision Zirconia ceramic alignment sleeve, this coupler provides exact core alignment to significantly reduce both insertion loss and back reflection. The Angled Physical Contact (APC) connectors are specifically designed to offer superior return loss, making this coupler essential for applications sensitive to signal interference. The durable housing and robust latching mechanism are built for repeated use, offering a reliable mating cycle of over 500 connections without degradation in performance.
Key Features
- Low Insertion Loss: Ensures maximum signal strength and integrity across the connection.
- Excellent Return Loss: APC polish minimizes back reflection, crucial for analog and high-speed digital signals.
- High-Precision Alignment: Zirconia ceramic sleeve provides stable and accurate connector mating.
- Duplex Configuration: Supports simultaneous two-way communication.
- Industry Standard: Green color coding for easy identification of APC connections.
Technical Specifications
| Parameter | Specification |
| SKU | AC-FIB-MIDC-LC-APC |
| Connector Type | LC/APC to LC/APC |
| Body Style | Duplex |
| Fiber Mode | Single-Mode (SMF 9/125µm OS2) |
| Polish Type | APC (Angled Physical Contact) |
| Insertion Loss | ≤ 0.2dB |
| Return Loss | ≥ 65dB |
| Mating Durability | > 500 Cycles |
| Alignment Sleeve Material | Zirconia Ceramic |
| Housing Material | Thermoplastic Polymer (UL94V-0 Rated) |
| Color | Green |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | RoHS, TIA/EIA-604, IEC 61754 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
