Acconet

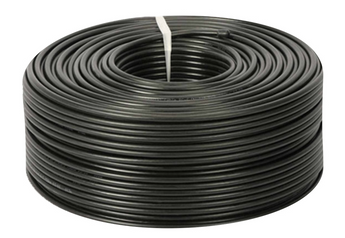

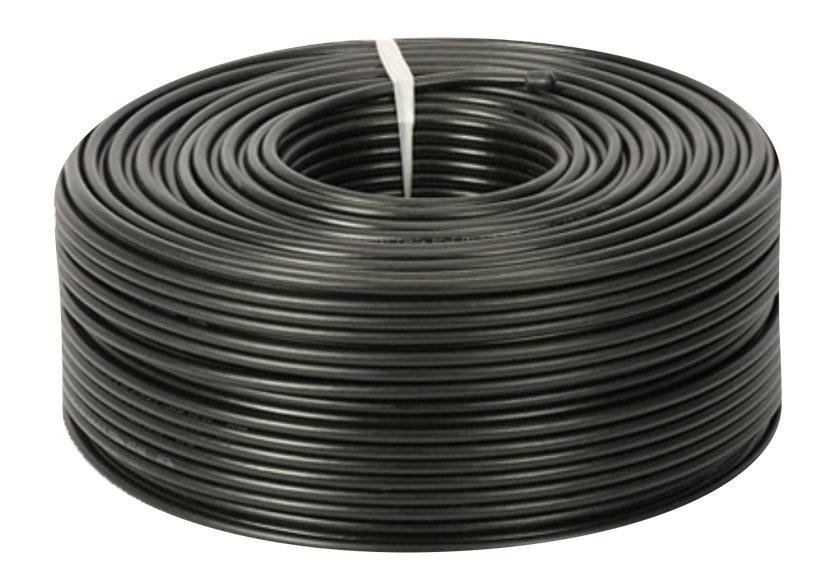

Acconet Low Loss 400 Series Cable (per Meter) - Loss 0.22dB/m @ 2.5GHz & Loss 0.35dB/m @ 5.8GHz
Pickup available at NexGen Computing
Usually ready in 24 hours
Unmatched Signal Integrity for High-Frequency RF Applications
Experience superior connectivity and minimal signal degradation with the Acconet Low Loss 400 Series Coaxial Cable. Engineered for excellence, this 50-ohm cable is the definitive choice for critical RF applications, including Wi-Fi, 4G/5G cellular networks, antenna feeder runs, and jumper assemblies. Its robust construction ensures peak performance, delivering your signal with exceptional clarity and reduced loss over distance.
Ultra-Low Attenuation for Maximum Performance
In the world of wireless communications, every decibel matters. The Acconet ARF400 is designed with exceptionally low attenuation characteristics, preserving signal strength and quality. With a measured loss of just 0.22 dB per meter at 2.5 GHz and 0.35 dB per meter at 5.8 GHz, this cable ensures your high-frequency equipment operates at its full potential, making it ideal for long cable runs where signal preservation is paramount.
Engineered for Durability and Reliability
Built to withstand demanding environments, the Acconet 400 Series cable features a durable, UV-resistant Polyethylene (PE) jacket, making it suitable for both indoor and outdoor installations. Its high tensile strength of 72.6 kg and a wide operating temperature range from -40°C to +85°C guarantee long-term reliability in any climate. The double-shielded construction, typically featuring a bonded aluminum foil and a tinned copper braid, provides over 90 dB of RF shielding to protect against electromagnetic interference (EMI) and ensure a clean signal path.
Key Features:
- Exceptional Low Loss: Preserves signal integrity with attenuation of only 0.22 dB/m @ 2.5 GHz.
- High-Frequency Performance: Optimized for use in 2.4 GHz and 5.8 GHz Wi-Fi bands and other high-frequency RF systems.
- Superior Shielding: >90 dB shielding effectiveness protects against interference.
- Weather-Resistant: UV-stable PE jacket for long-life outdoor exposure.
- Wide Temperature Range: Reliable performance from -40°C to +85°C.
Comprehensive Technical Specifications
| Construction Specifications | |
|---|---|
| Inner Conductor | Solid Copper-Clad Aluminum (BCCAI) - 2.74 mm (0.108 in) |
| Dielectric | Foam Polyethylene (PE) - 7.24 mm (0.285 in) |
| Outer Conductor (Shield 1) | Bonded Aluminum Foil |
| Overall Braid (Shield 2) | Tinned Copper |
| Jacket | Polyethylene (PE), Black - UV Resistant |
| Overall Diameter | 10.29 mm (0.405 in) |
| Electrical Specifications | |
| Impedance | 50 Ohms |
| Attenuation @ 2.5 GHz | 0.22 dB/m |
| Attenuation @ 5.8 GHz | 0.35 dB/m |
| Velocity of Propagation | 84% |
| Capacitance | 78.4 pF/m (23.9 pF/ft) |
| Shielding Effectiveness | >90 dB |
| Voltage Withstand | 2500 Volts DC |
| Mechanical & Environmental Specifications | |
| Minimum Bend Radius (Installation) | 50 mm |
| Tensile Strength | 72.6 kg (160 lbs) |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
