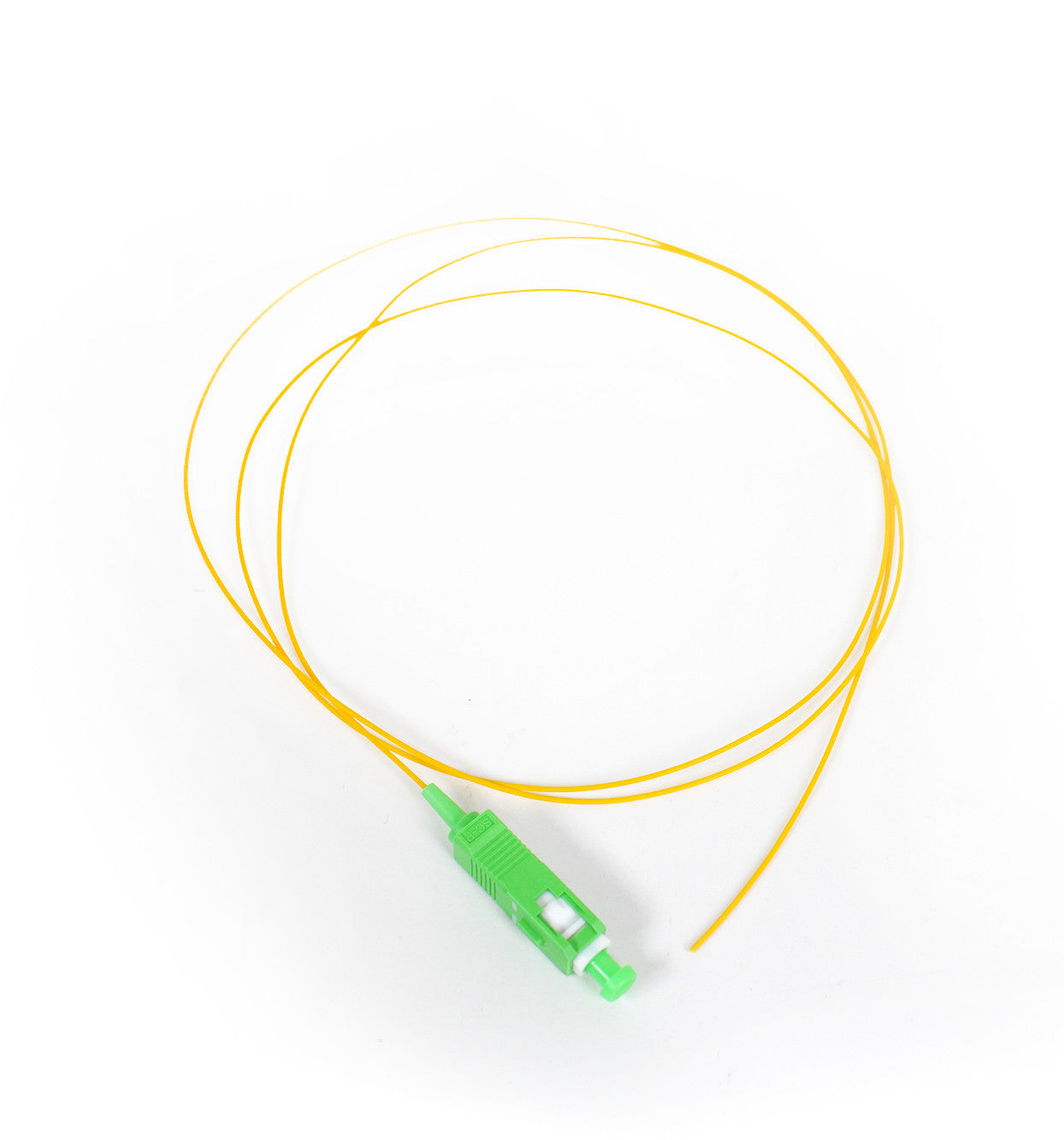

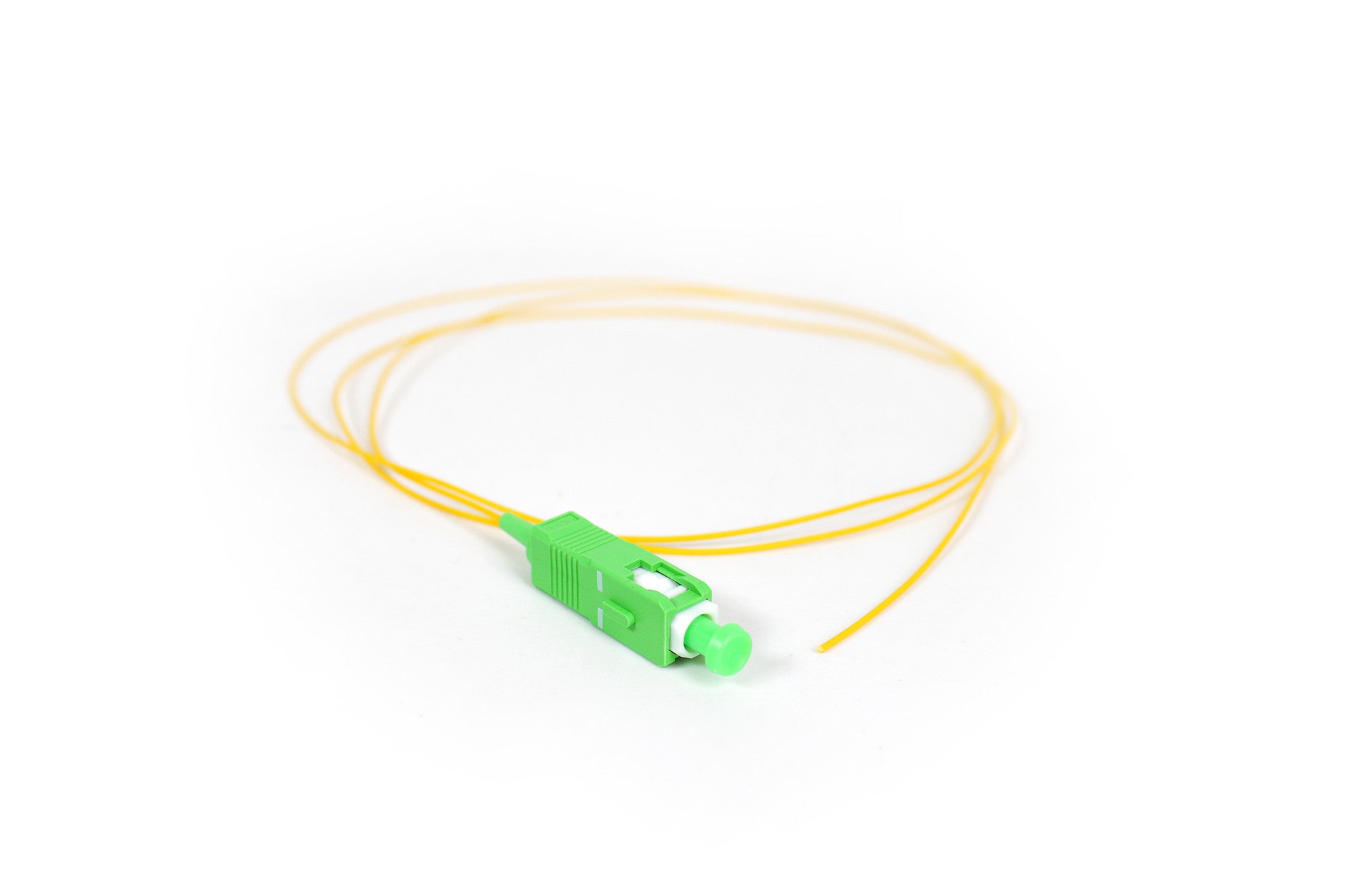

Acconet 1M SC/APC Single-Mode Fiber Optic Pigtail

Precision Connectivity for Your Fiber Optic Network

Unlock superior performance and reliability with the Acconet 1-Meter SC/APC Single-Mode Fiber Optic Pigtail. Designed for professional-grade applications, this pigtail is the ideal solution for terminating fiber optic cables within your network infrastructure. It features a pre-terminated SC connector on one end, ready for patching into equipment, and an open, unterminated end for seamless fusion splicing to trunk cables. This design significantly speeds up deployment and ensures a high-quality, stable connection in critical systems like data centers, telecommunication networks, and FTTx installations.

Engineered for Excellence

This pigtail is built to exacting standards to deliver minimal signal loss and maximum performance. The SC (Subscriber Connector) provides a simple and durable push-pull mechanism for quick and secure connections. The APC (Angled Physical Contact) polish on the connector end-face is precision-angled to dramatically reduce back reflection, providing a return loss of ≥60 dB. This is crucial for high-speed, long-distance single-mode applications and analog signaling where signal integrity is paramount. The core is a 9/125µm single-mode fiber, optimized for 1310nm and 1550nm wavelengths, ensuring low insertion loss (≤0.3 dB) and compatibility with the most demanding network protocols.

Durable and Safe Construction

Encased in a robust, 0.9mm LSZH (Low Smoke Zero Halogen) jacket, the Acconet pigtail is designed for safety and durability. The LSZH material produces minimal smoke and no toxic halogen compounds when exposed to high heat sources, making it a safe choice for enclosed or poorly ventilated spaces. With an operational durability of over 1000 mating cycles and a wide operating temperature range, this pigtail is built to last in even the most challenging environments.

Technical Specifications
