AJAX

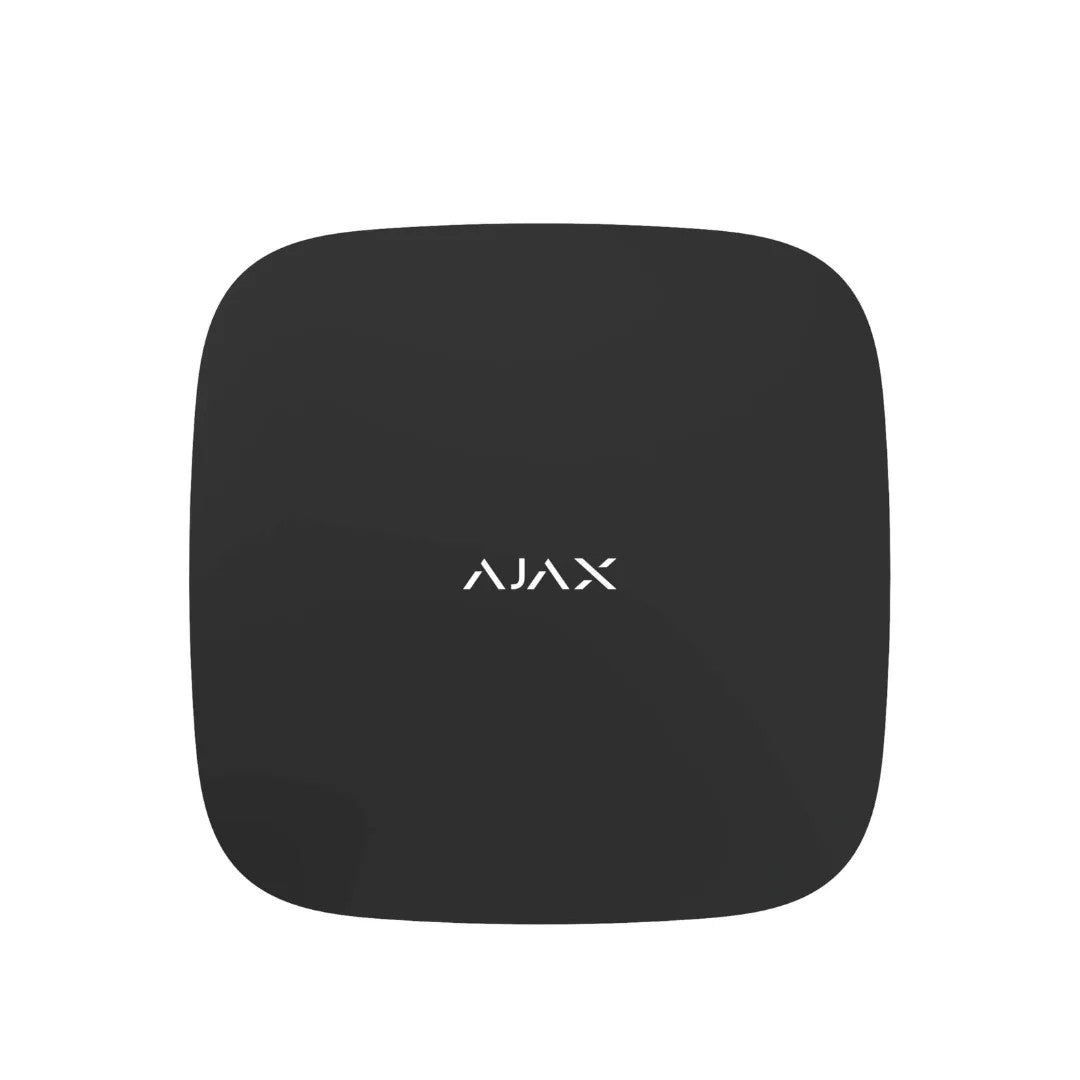

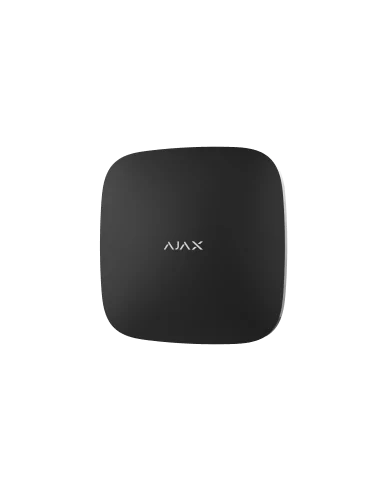

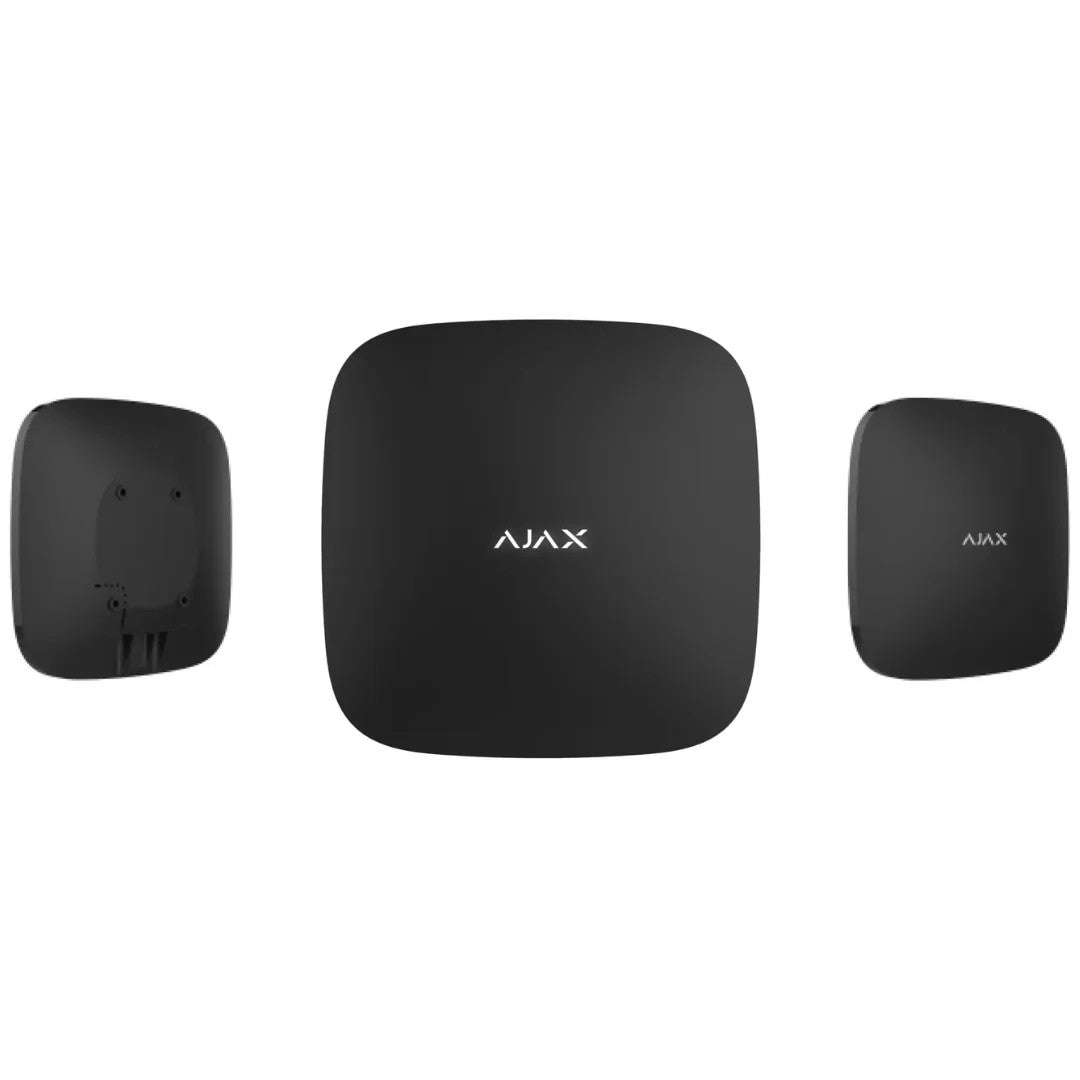

Ajax Hub (4G) Jeweller Security Control Panel
Pickup available at NexGen Computing
Usually ready in 24 hours
Ultimate Control and Unwavering Reliability for Your Security
Introducing the Ajax Hub (4G) Jeweller, the intelligent heart of your security system. This advanced control panel manages all your connected Ajax devices, providing robust protection against intrusions, fires, and floods. With dual communication channels—Ethernet and a 4G LTE SIM card backup—the Ajax Hub ensures your property remains secure and connected at all times. If your primary Ethernet connection fails, the hub instantly switches to the 4G network, guaranteeing that alarms are delivered without delay to you and your security company.
Superior Wireless Technology
The Hub operates on the proprietary Jeweller radio technology, an encrypted, two-way communication protocol that ensures the safety and reliability of your system. It provides a secure connection to detectors, sirens, and other devices at a distance of up to 2,000 meters in open space. This technology is designed for advanced anti-sabotage, featuring block encryption and frequency hopping to prevent jamming and interception. The system regularly polls all connected devices, ensuring their operational status and instantly notifying you of any connection loss.
Comprehensive Security Management
The Ajax Hub is the central point for a comprehensive security network. It can connect up to 100 Ajax devices, allowing you to create a tailored system for your home or business. Manage up to 50 users, 9 security groups, and 50 rooms through the intuitive Ajax mobile and desktop apps. The hub also supports up to 5 automation scenarios, enabling you to schedule arming/disarming or program actions in response to alarms. Even during a power outage, the built-in backup battery provides up to 15 hours of autonomous operation, so your peace of mind is never compromised.
Technical Specifications
| Capacity | |
|---|---|
| Connected Wireless Devices | Up to 100 (including up to 10 sirens and 1 range extender) |
| Users | Up to 50 |
| Rooms | Up to 50 |
| Security Groups | Up to 9 |
| Automation Scenarios | Up to 5 |
| Video Surveillance Integration | Up to 10 IP cameras (RTSP) or up to 14 Ajax NVRs |
| Communication Channels | |
| Ethernet | 1 Ethernet port (Up to 100 Mbps) |
| Cellular | 1 SIM card slot (4G/LTE) |
| Channel Switching | Instant switching between Ethernet and SIM |
| Wireless Technology | |
| Protocol | Jeweller communication technology |
| Key Features | Two-way communication, block encryption, anti-sabotage, frequency hopping |
| Radio Frequency Bands | 866.0 – 926.5 MHz (depends on sales region) |
| Communication Range | Up to 2,000 m / 6,500 ft (in open space) |
| Power Supply | |
| Main Power | 110–240 V~, 50/60 Hz (Up to 10 W consumption) |
| Backup Power | Built-in Li-ion 3 A·h battery |
| Battery Life | Up to 15 hours of offline operation |
| Physical Specifications | |
| Dimensions | 163 × 163 × 36 mm (6.42″ × 6.42″ × 1.42″) |
| Weight | 362 g (12.77 oz) |
| Operating Temperature | -10°C to +40°C (14°F to 104°F) |
| Operating Humidity | Up to 75% |
| Enclosure Protection | IP20 (Indoor installation only) |
| Anti-Sabotage | Tamper alarm, Jamming detection, Forgery prevention |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
