AJAX

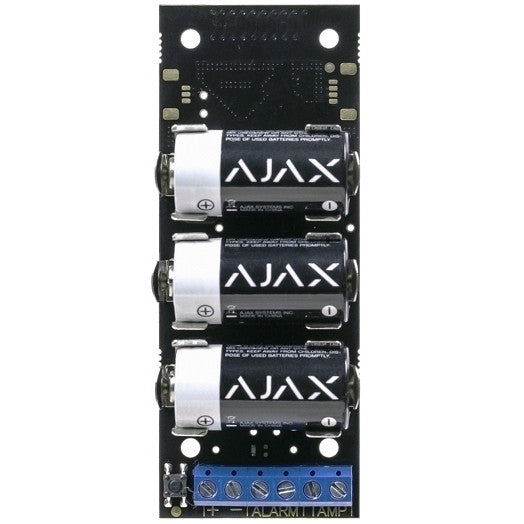

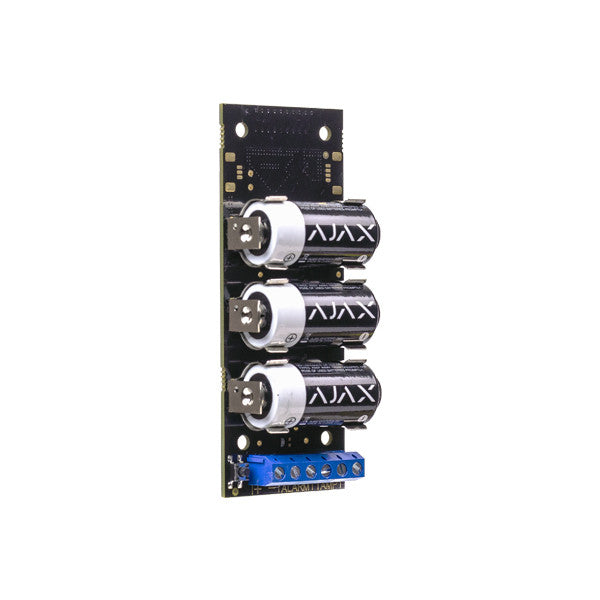

AJAX Transmitter Wireless Integration Module for Wired Detectors
Pickup available at NexGen Computing
Usually ready in 24 hours
Upgrade Your Security: Integrate Any Wired Detector into Your AJAX System
Unlock the full potential of your security setup with the AJAX Transmitter, a powerful integration module designed to bring third-party wired devices into the advanced AJAX wireless ecosystem. This compact and versatile module allows you to connect devices like IR barriers, gas detectors, panic buttons, liquid level sensors, and any other sensor with a standard NC/NO (Normally Closed/Normally Open) contact type. Now, you can enhance your existing wired security equipment with the intelligent features, reliability, and convenience of AJAX technology without a complete overhaul.
Seamless Integration & Advanced Features
The Transmitter receives alarm and event signals via a wired connection and instantly relays them to your AJAX hub using the encrypted Jeweller radio protocol. This ensures secure, two-way communication over distances of up to 1,600 meters in open spaces. You can configure the specific event type for each connected device—such as intrusion, fire, gas leak, or panic alarm—directly within the Ajax app. This determines the exact notification you and the monitoring station receive, ensuring a precise and rapid response to any threat. The module can also provide a 3.3 V⎓ power supply to the connected detector, and its three pre-installed CR123A batteries offer a remarkable lifespan of up to 5 years.
Robust Security & Easy Installation
Security is paramount. The AJAX Transmitter is equipped with anti-sabotage features, including protection against spoofing, jamming detection, and a built-in accelerometer that immediately raises an alarm if the module is moved or its casing is opened. Installation is straightforward: simply scan the QR code in the Ajax app to add the device to your system. Its compact size allows for easy installation inside the housing of most detectors or in a separate mounting box.
Technical Specifications
| Classification | Module for third-party detector integration |
|---|---|
| Device Type | Wireless |
| Installation Method | Indoors / Outdoors (in a sealed box or detector casing) |
| Compatibility | All Ajax hubs and range extenders |
| Wired Inputs | 1 Alarm input, 1 Tamper input |
| Supported Contact Types | NC (Normally Closed), NO (Normally Open) |
| Power Supply for Detector | 3.3 V⎓ output |
| Power Supply (Module) | 3 × CR123A batteries (pre-installed) |
| Battery Life | Up to 5 years |
| Jeweller Radio Technology | Communication range up to 1,600 m (open space), Two-way communication, AES block encryption, Frequency hopping |
| RF Output Power | Up to 20 mW |
| Device Polling Period | 12–300 s (adjustable) |
| Anti-Sabotage | Protection against spoofing, Jamming detection, Accelerometer for removal/opening detection |
| Operating Temperature Range | -25°С to +50°С |
| Operating Humidity | Up to 75% |
| Dimensions | 100 × 39 × 22 mm |
| Weight | 74 g |
| Package Contents | Transmitter module, 3 × CR123A batteries (pre-installed), Installation kit, Quick Start Guide |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
