APC NetShelter AP4424A 32A 230V Rack Automatic Transfer Switch
Pickup available at NexGen Computing
Usually ready in 24 hours
Ensure Seamless Power Redundancy for Critical IT Equipment
The APC NetShelter Rack Automatic Transfer Switch (ATS) AP4424A is a high-availability switch that provides redundant power to single-corded equipment in your IT rack. This fifth-generation ATS delivers industry-leading reliability and agility, ensuring your critical loads are always powered. It features dual input power cords, allowing you to connect to primary and secondary power sources. If the primary source fails, the ATS seamlessly switches to the alternate source with a transfer time of less than 10ms, ensuring your operations continue without interruption.
Advanced Management and Security
Engineered for modern data centers and edge computing environments, the AP4424A has been upgraded with an APC Network Management Card 3 (NMC3) for enhanced security and remote management. Users can access and configure the Rack ATS through a secure Web UI, SNMP, and CLI. It is also fully compatible with EcoStruxure IT for comprehensive infrastructure management. The unit features a color LCD display for intuitive local control and monitoring of power flow.
High-Density Power Distribution

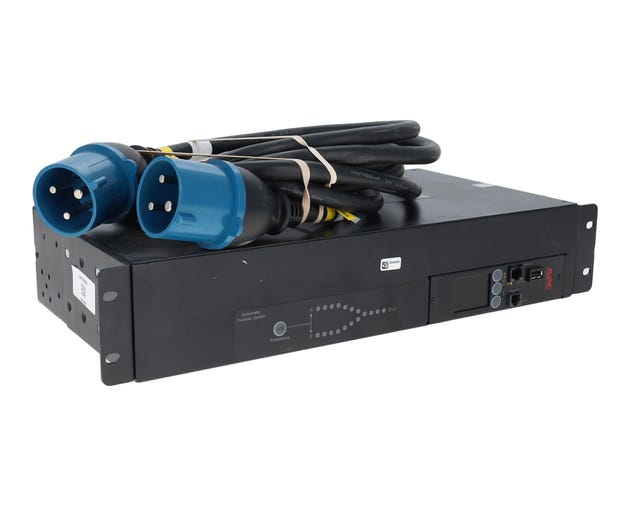

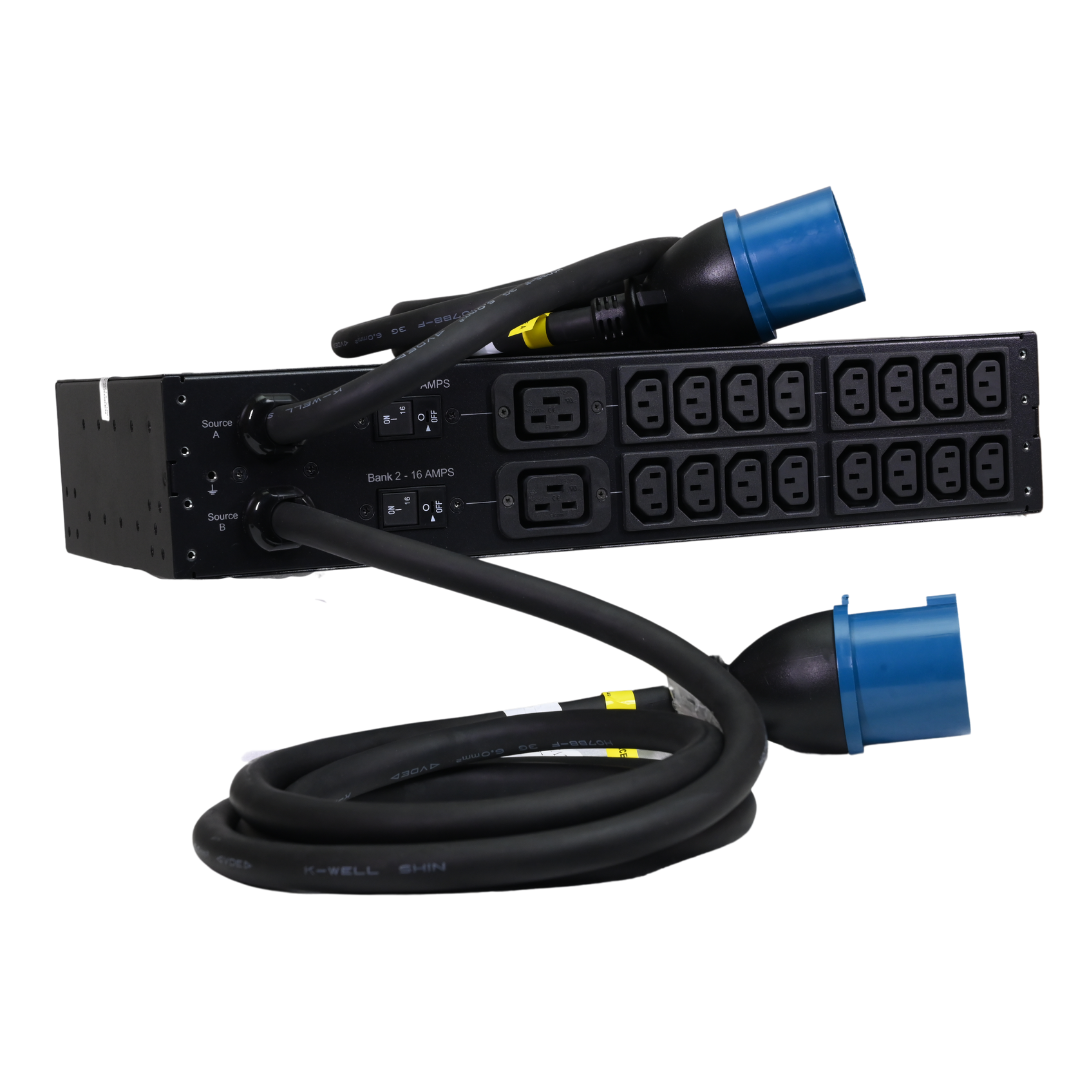

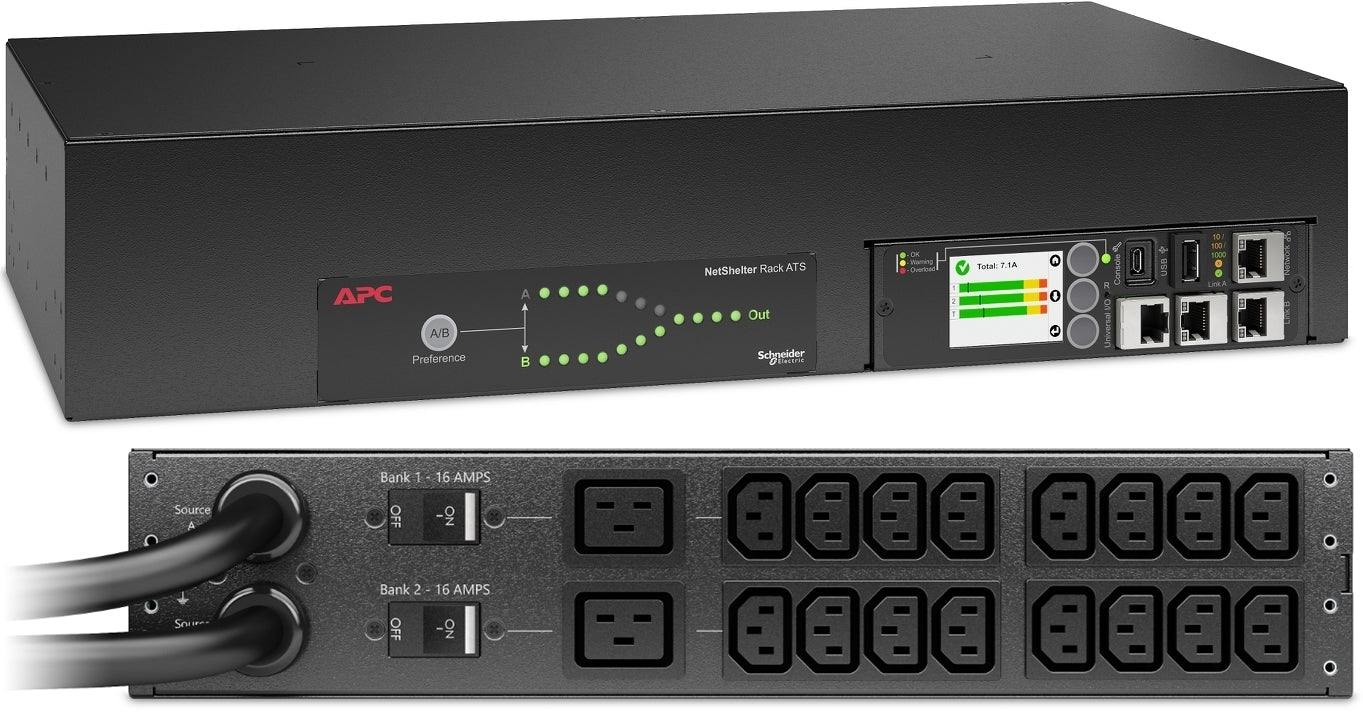

This 2U rack-mounted ATS is a single-phase unit with a 32A rated current and a 230V rated voltage, supporting a load capacity of up to 7400VA. It is equipped with two IEC 309 32A inlets and provides a generous number of outlets, including sixteen (16) IEC 60320 C13 and two (2) IEC 60320 C19, to power multiple devices within the rack. Inbuilt circuit breaker protection safeguards against overcurrent events.
Technical Specifications
| Main | |
| Main Input Voltage | 230 V AC 1 phase |
| Main Output Voltage | 230 V |
| Input Connection Type | IEC 60309 32 A 2P + E |
| Number of rack units | 2U |
| Provided Equipment | Mounting hardware, Rack mounting brackets |
| Physical | |
| Height | 88 mm (3.5 in) |
| Width | 432 mm (17.01 in) |
| Depth | 236 mm (9.29 in) |
| Net Weight | 6.94 kg (15.30 lb) |
| Color | Black |
| Mounting Mode | Rack-mounted |
| Input | |
| Input Frequency | 50/60 Hz |
| Load Capacity | 7400 VA |
| Output | |
| Maximum Total Current Draw | 32 A |
| Number of power socket outlets | 16 IEC 60320 C13, 2 IEC 60320 C19 |
| Protection Type | Circuit breaker |
| Environmental | |
| Ambient Air Temperature for Operation | -5 to 45 °C (23 to 113 °F) |
| Operating Altitude | 0...10000 ft |
| Relative Humidity | 5-95% |
| Conformance | |
| Product Certifications | EN 55022 class A, FCC part 15 class A |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
