BDCOM

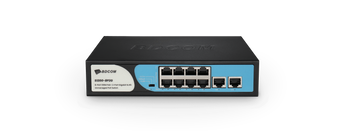

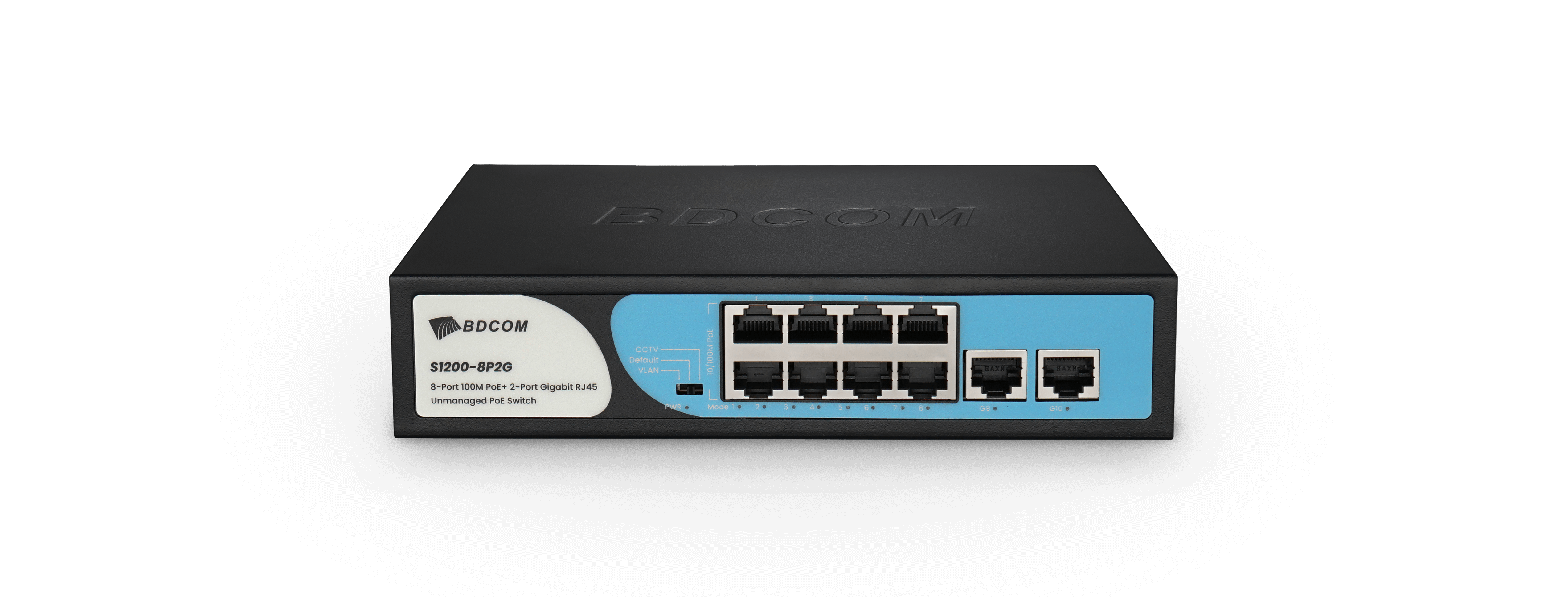

BDCOM S1200-8P2G 8-Port 100M PoE+ Switch with 2-Port Gigabit Uplink, 90W
Pickup available at NexGen Computing
Usually ready in 24 hours
Power and Connect Your Network with the BDCOM 8-Port PoE+ Switch
Experience robust performance and versatile functionality with the BDCOM S1200-8P2G, a high-performance unmanaged PoE switch designed for modern CCTV and WLAN networks. This compact and efficient switch is the ideal networking solution for small businesses, surveillance systems, and edge deployments. It features 8 Fast Ethernet PoE ports that support both IEEE 802.3af and 802.3at standards, delivering up to 30W per port. With a total PoE power budget of 90W, it is perfectly equipped to power devices like IP cameras, wireless access points, and VoIP phones.
High-Speed Uplinks and Flexible Operating Modes
The S1200-8P2G includes two Gigabit uplink RJ45 ports, ensuring high-speed data backhaul to your core network or NVRs without bottlenecks. A key feature is the physical DIP switch that allows you to select from three operating modes for enhanced flexibility. 'Default' mode functions as a standard switch, 'VLAN' mode isolates the 8 PoE ports for improved security, and 'CCTV' mode extends the power and data transmission distance for cameras installed further away.
Reliable, Silent, and Durable Design
Engineered for reliability, this switch boasts a 5.6Gbps switching capacity for smooth data transfer and a fanless design that ensures silent operation, making it suitable for office environments. It also features a built-in AC power supply and professional-grade 6KV lightning protection to safeguard your network against electrical surges, providing an extra layer of resilience.
Technical Specifications
| Model | S1200-8P2G |
| Interface | 8 x 10/100M PoE Ports 2 x 10/100/1000M Uplink RJ45 Ports |
| Performance |
Switching Capacity: 5.6Gbps MAC Address Table: 2K Buffer Size: 448Kb |
| PoE (Power over Ethernet) |
PoE Standard: IEEE 802.3af/at Total PoE Budget: 90W Max Power per Port: 30W |
| Advanced Functions |
DIP Switch Modes: Default, VLAN, CCTV Lightning Protection: 6KV |
| Power Supply | Built-in AC: 100~240V, 50/60Hz |
| Physical and Environmental |
Fan: Fanless Design Dimensions (W x D x H): 200 x 118 x 44 mm Operating Temperature: 0°C to 50°C Operating Humidity: 10% to 90% non-condensing Storage Temperature: -40°C to 70°C |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
