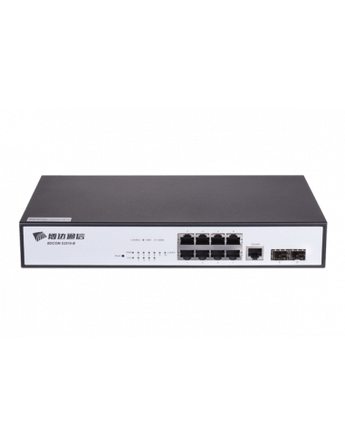

BDCOM 8 Port Managed Gigabit PoE Switch - 150W
Pickup available at NexGen Computing
Usually ready in 24 hours
Power and Precision for Your Growing Network
Unlock high-speed connectivity and intelligent power delivery with the BDCOM S2510-P, a next-generation smart access switch designed for carrier-grade IP MAN and enterprise networks. This robust and versatile switch combines 8 Gigabit PoE+ ports with 2 dedicated Gigabit SFP fiber uplinks, providing a powerful and flexible foundation for your critical network infrastructure. It's the ideal solution for powering IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices, eliminating the need for separate power adapters and simplifying installation.
Intelligent Management and Carrier-Class Reliability
The S2510-P is more than just a power source; it's a fully managed switch equipped with a sophisticated BDROS platform. This allows for granular control over your network with advanced features including Access Control Lists (ACL) for enhanced security, QinQ for VLAN stacking, and rich QoS policies to prioritize critical traffic like voice and video. With a 20Gbps switching capacity and a 15Mpps forwarding rate, it ensures smooth, reliable data transmission without bottlenecks. It also supports telecom-level Ethernet-ring protection protocols (like EAPS/ERPS) with less than 50ms switchover times, ensuring high availability for your most demanding applications.
Robust PoE+ and Advanced Security
With a total power budget of 150W (130W PoE budget), the S2510-P adheres to IEEE 802.3af/at standards, delivering up to 30W per port to power your high-performance devices. The switch is built for resilience, featuring up to 2KV thunder-proof protection on its PoE ports and the ability to provide non-stop power during a hot-restart. Comprehensive security mechanisms protect against threats like SYN Flood, UDP Flood, and broadcast storms, while features like DHCP-Snooping and IP+MAC+port binding safeguard network integrity.
Comprehensive Specifications Table
| Hardware Specifications | |
|---|---|
| Model | S2510-P |
| Ports | 8 x 10/100/1000Base-T PoE Ports, 2 x 1000Base-X SFP Ports |
| Console Port | 1 x RJ45 |
| Switching Capacity | 20Gbps |
| Forwarding Rate | 15Mpps |
| Forwarding Mode | Store-and-forward |
| Flash Memory | 16MB |
| DRAM | 128MB |
| MAC Address Table | 8K |
| Jumbo Frame | 9K |
| Dimensions (W×D×H) | 280 x 180 x 44 mm |
| Power over Ethernet (PoE) | |
| PoE Standard | IEEE 802.3af/at |
| Total Power Supply | 150W |
| PoE Power Budget | 130W |
| Power per Port | Up to 30W |
| Software & Management Features | |
| VLAN | 4K VLAN entries, GVRP, 1:1 and N:1 VLAN Mapping, QinQ, Private VLAN |
| Spanning Tree | 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP), BPDU protection |
| Multicast | IGMP v1/v2/v3 Snooping, IGMP Fast Leave, MVC |
| QoS | Complex traffic classification, priority remark, flexible bandwidth control (SP, WRR, SP+WRR) |
| Security | ACL (L2-L7), IEEE 802.1x, Radius, BDTacacs+, DHCP-Snooping, IP+MAC+port binding, Loop detection |
| Management | WEB, SNMP v1/v2/v3, Console, Telnet, SSH, Zero Touch Provisioning (ZTP) |
| Environmental | |
| Power Supply | AC: 100V-240V, 50Hz±10% |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 10% to 90% (non-condensing) |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
