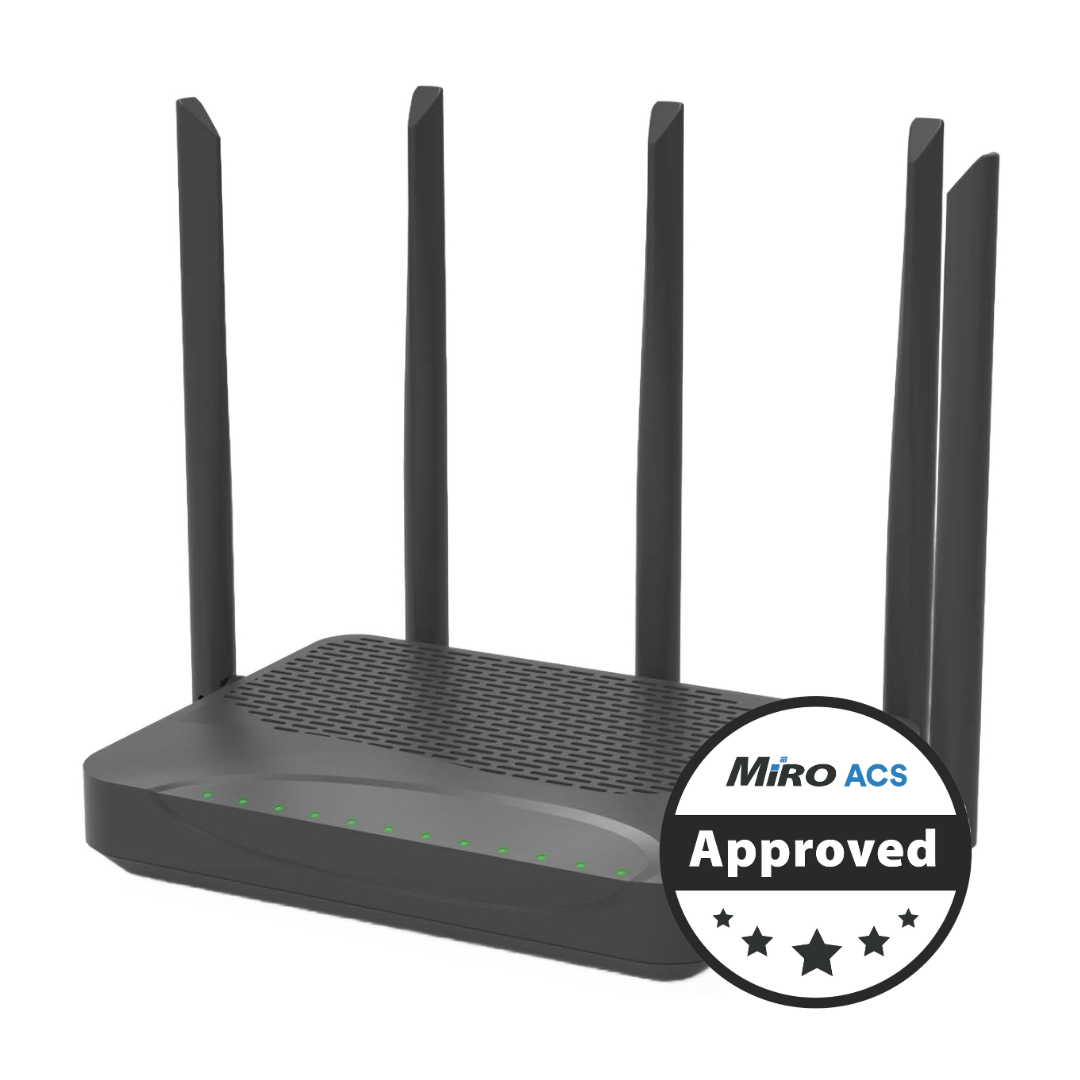

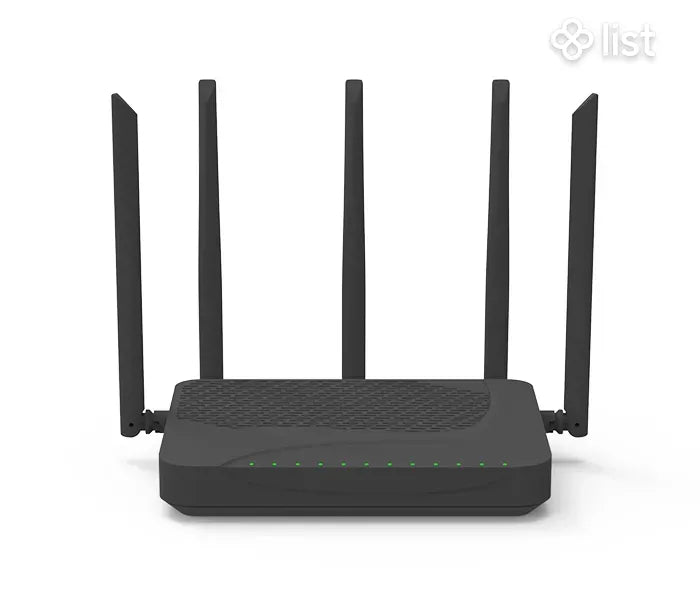

BDCOM GP1706-4G AX3000 Dual-Band Wi-Fi 6 xPON Gateway
Pickup available at NexGen Computing
Usually ready in 24 hours
Blazing-Fast, Next-Generation Fiber Connectivity
Experience the future of home and office networking with the BDCOM GP1706-4G, a high-performance xPON HGU (Home Gateway Unit) designed for multi-service converged networks. This intelligent gateway is engineered to deliver superior performance for broadband users, supporting both GPON and EPON network architectures for maximum flexibility. Featuring the latest Wi-Fi 6 (802.11ax) technology, the GP1706-4G provides a massive speed boost and increased capacity for all your connected devices. With four Gigabit LAN ports and a versatile USB 2.0 interface, this gateway is the ultimate all-in-one solution for demanding applications like 4K/8K streaming, online gaming, and large file transfers.
Key Features:
- Dual-Band Wi-Fi 6 Technology: Achieve combined wireless speeds of up to 3000 Mbps with the latest 802.11ax standard, ensuring a smooth, lag-free experience for all your wireless devices.
- Flexible xPON Integration: Auto-adaptive GPON and EPON capabilities make it compatible with a wide range of fiber network infrastructures.
- Full Gigabit Wired Connections: Four Gigabit Ethernet LAN ports provide high-speed, stable connections for your wired devices, including PCs, gaming consoles, and smart TVs.
- Enhanced Network Coverage: Equipped with five external antennas, the GP1706-4G delivers exceptional Wi-Fi coverage and signal strength throughout your home or office.
- Versatile USB Port: A built-in USB 2.0 port allows for easy sharing of files and media across your network.
- Robust Management Options: Supports a wide range of management modes, including CLI, HTTP, SNMP, TR069, and TELNET, for easy configuration and monitoring.
Comprehensive Specifications
| Hardware Specifications | |
| PON Interface | 1 x GPON/EPON Port (SC/UPC) |
| User Interfaces | 4 x Gigabit RJ45 LAN Ports, 1 x USB 2.0 Port |
| Antennas | 5 External Antennas |
| Wireless (Wi-Fi) | |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6) |
| Wireless Speed | Dual-Band, up to 3000 Mbps |
| PON (Passive Optical Network) | |
| Standards | ITU-T G.984/G.988, IEEE802.3ah |
| GPON Data Rate | Downlink: 2.5Gbps, Uplink: 1.25Gbps |
| EPON Data Rate | Downlink: 1.25Gbps, Uplink: 1.25Gbps |
| Splitting Ratio | Up to 1:128 |
| Network Coverage Radius | Up to 20km |
| Optical Power (TX) | 0.5 to 5 dBm |
| Receiver Sensitivity (RX) | <-28 dBm |
| Software & Management | |
| Management Modes | CLI, HTTP, SNMP, TR069, TELNET |
| IP Services | DHCP Server/Client, DNS, DDNS, PPPoE, NAT/NAPT |
| xPON Service | AES128 algorithm encryption, MAC/Loid/Hybrid authentication |
| Quality of Service (QoS) | IEEE 802.1p, CoS, WR, SP, and FIFO queue schedule algorithms, Port rate limit, SLA and DBA |
| VLAN | 4K VLAN, Port-based VLAN, IEEE 802.1Q VLAN, Tag/Transparent/Aggregation/Trunk/Translation mode VLAN |
| Multicast | IGMP-Snooping, MLD-Snooping |
| Physical & Environmental | |
| Power Supply | DC 12V / 1.5A (Input: 100-240V AC) |
| Max. Power Consumption | 18W |
| Dimensions (W x D x H) | 185 x 135 x 36 mm |
| Weight | 0.3 kg |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 10% to 85% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
