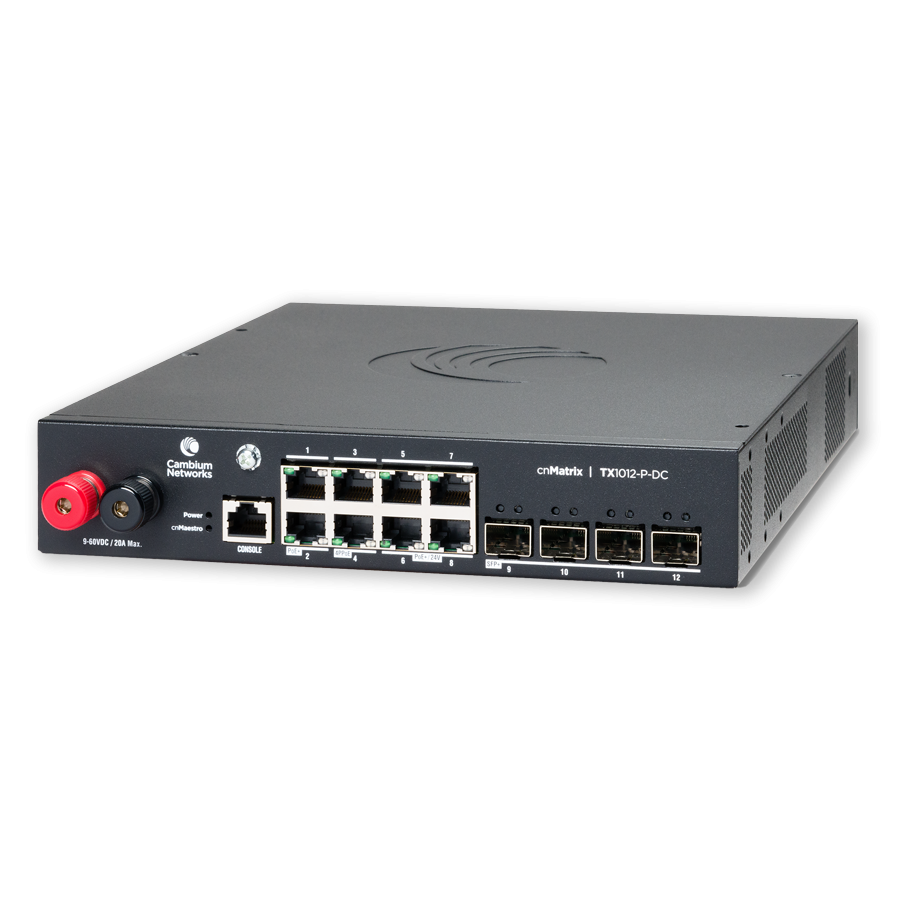

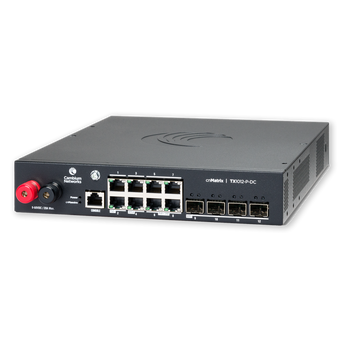

Cambium cnMatrix 12 Port PoE DC Switch | CNM-TX1012-P-DC

SKU: CB-CNM-TX1012-P-DCBarcode: 49642641424624
R 18,247.47
6 in stock
Dispatches from Midrand Warehouse. Fast Nationwide Delivery

Estimated delivery

Get it 000, 000 00 – 000, 000 00

Free delivery Your order qualifies
Visa Mastercard American Express Apple Pay Google Pay Capitec Pay

DC-Powered WISP Tower Switch

The Cambium cnMatrix TX1012-P-DC is a fully managed, enterprise-grade Layer 2/3 switch designed specifically for Wireless ISP operators. Featuring DC power input and intelligent PoE, it simplifies tower deployments while delivering robust network performance and cloud management.

Features

  • DC Powered: Ideal for tower installations and environments with DC power systems.
  • Intelligent PoE: 8 Gigabit ports with a 170W power budget for radios and devices.
  • High-Speed Uplinks: 4 SFP+ ports provide high-capacity fiber connectivity.
  • Non-Blocking Architecture: Ensures full wire-speed performance across all ports.
  • Cloud Managed: Easily provision and monitor the switch via cnMaestro.

Specifications

Brand Cambium Networks
Model CNM-TX1012-P-DC
Management Cloud Managed (cnMaestro)
Dimensions (LxWxH) 35.0 x 33.0 x 10.0 cm
Throughput 96 Gbps
Forwarding Rate in Mpps (64 Byte Packets) 120
10/100/1000 Mbps RJ45 Ports 8
10 Gbps Fiber Ports (SFP+) 4
PoE+ Enabled Ports 802.3af/at/bt 8
Low Voltage Passive PoE (24V) 4
High Power 4 PPoE (up to 90W) 2
Serial Console Yes
Policy Based Automation Yes
Power Supply 200W
PoE Power Budget 170W @ 30-65Vin, 120W @ 9–29Vin
802.3af/at/bt PoE (54V) Ports 1–8
24V Passive PoE - up to 15W Ports 5–8
54V Passive PoE - up to 90W Ports 3–4
54V Passive PoE - up to 30W Ports 1–2, 5–8
Rack Mountable Yes (Optional Accessory)
DIN Rail Mountable Yes (Optional Accessory)
Wall Mountable Yes (Optional Accessory)
Temperature Ranges -30ºC to 60ºC / Sea level
Manufacturer Technical Data
Product Spec Sheet Not available for this product
