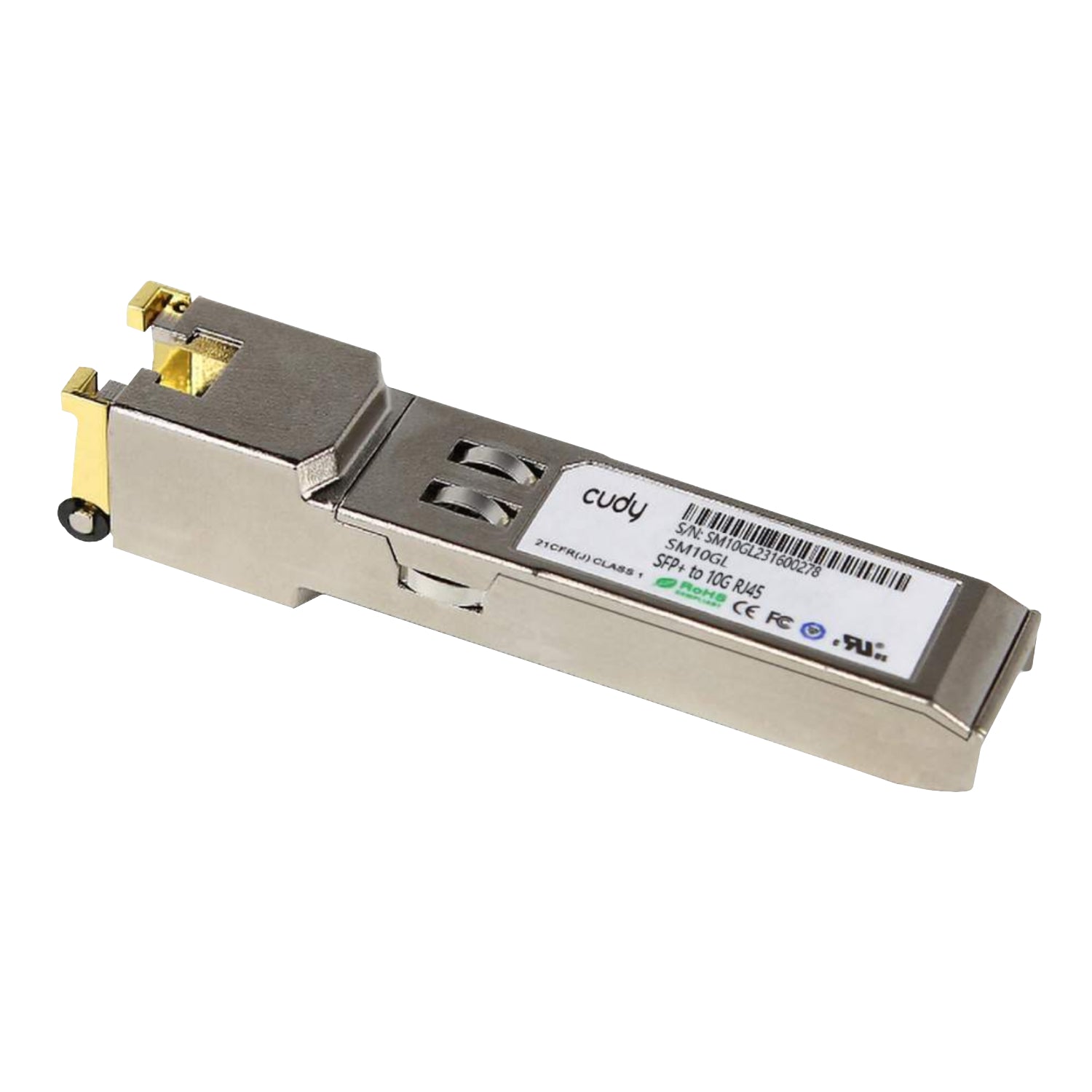

Cudy SM10GL 10G SFP+ to RJ45 Ethernet Transceiver Module
Pickup available at NexGen Computing
Usually ready in 24 hours
The Cudy SM10GL SFP+ to 10G RJ45 Ethernet Module delivers blazing-fast, reliable network performance for data centers, enterprise networks, and high-demand work environments. Designed in compliance with the SFP Multi-Source Agreement (MSA), this transceiver supports 10Gbase-T, 5Gbase-T, 2.5Gbase-T, and 1000base-T standards as per IEEE 802.3, ensuring broad compatibility with a wide range of networking equipment. Whether you’re upgrading an existing system or expanding your network capabilities, the SM10GL is built for seamless integration and maximum performance.
This hot-pluggable SFP+ transceiver features a compact RJ45 connector assembly, making it easy to install without system downtime. Supporting 10 Gigabit Ethernet over Cat 6a cabling, it enables cost-effective copper connectivity without compromising on speed. The single +3.3V power supply ensures efficient energy consumption, while compliance with RoHS standards guarantees an environmentally friendly, lead-free build.
Built to handle high-performance networking demands, the Cudy SM10GL offers a data rate of up to 10Gbps with optimised impedance matching for stable transmission. With an operating temperature range of 0°C to +60°C, it is suitable for various deployment scenarios, from enterprise racks to high-traffic server rooms. The robust electrical design includes precise signal integrity control for minimal data loss, ensuring smooth and consistent connectivity even under heavy loads.
Whether you’re running 10G backbone links, high-speed workstations, or NAS systems, the Cudy SM10GL SFP+ to RJ45 Module is the perfect solution for flexible and scalable network upgrades. Offering support for multiple Ethernet speeds, tool-free installation, and outstanding thermal stability, it meets the needs of modern IT infrastructures while providing a cost-efficient alternative to fibre solutions.
FEATURES:
| Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T on line port | |
| Support 10Gbase-R on host port | |
| Hot-pluggable SFP footprint | |
| Compact RJ-45 connector assembly | |
| RoHS compliant and lead-free | |
| Single +3.3V power supply | |
| 10 Gigabit Ethernet over Cat 6a cable | |
| Ambient Operating temperature | 0°C to +60°C |
SPECIFICATIONS:
| Connector | RJ45 |
| Data Rate | 10Gbps |
| Form Factor | SFP |
| +3.3 V olt Electrical Power Interface | Supply Current: 800mA(Typ)/ 1000mA(Max)Input Voltage: 3.13V(Min)/ 3.3V(Typ)/ 3.47V(Max)Maximum Voltage: 4V |
| Supply Current | 800mA(Typ)/ 1000mA(Max) |
| Input Voltage | 3.13V(Min)/ 3.3V(Typ)/ 3.47V(Max) |
| Maximum Voltage | 4V |
| Low-Speed Signals, Electronic Characteristics | SFP Output LOW (Min/Max): 0/ 0.5VSFP Output HIGH (Min/Max): host_Vcc -0.5/ host_Vcc + 0.3VSFP Input LOW (Min/Max): 0/ 0.8VSFP Input HIGH (Min/Max): 2/ Vcc + 0.3V |
| SFP Output LOW (Min/Max) | 0/ 0.5V |
| SFP Output HIGH (Min/Max) | host_Vcc -0.5/ host_Vcc + 0.3V |
| SFP Input LOW (Min/Max) | 0/ 0.8V |
| SFP Input HIGH (Min/Max) | 2/ Vcc + 0.3V |
| High-Speed Electrical Interface, Transmission Line-SFP | Line Frequency: 125MHzTx Output Impedance: 100 OhmRx Input Impedance: 100 Ohm |
| Line Frequency | 125MHz |
| Tx Output Impedance | 100 Ohm |
| Rx Input Impedance | 100 Ohm |
| High-Speed Electrical Interface, Host-SFP | Single ended data input swing (Min/Max): 250/1200mVSingle ended data output swing (Min/Max): 350/800mVRise/Fall Time: 185 psecTx Input Impedance: 50 OhmRx Output Impedance: 50 Ohm |
| Single ended data input swing (Min/Max) | 250/1200mV |
| Single ended data output swing (Min/Max) | 350/800mV |
| Rise/Fall Time | 185 psec |
| Tx Input Impedance | 50 Ohm |
| Rx Output Impedance | 50 Ohm |
| Operating Temperature (Min/Max) | 0/60°C |
| Storage Temperature (Min/Max) | -40/85°C |
| Serial Bus Timing, Requirements | I 2C Clock Rate (Min/Max): 0/ 200 000Hz |
| I 2C Clock Rate (Min/Max) | 0/ 200 000Hz |
| Product Dimensions | 6.8 x 1.5 x 1.4 cm |
WHAT'S IN THE BOX:
- Cudy SM10GL SFP+ to 10G RJ45 Ethernet Module x1
