Edge-Core 10 Port Gb Websmart PoE Switch
Pickup available at NexGen Computing
Usually ready in 24 hours
Power and Precision for Your Growing Network

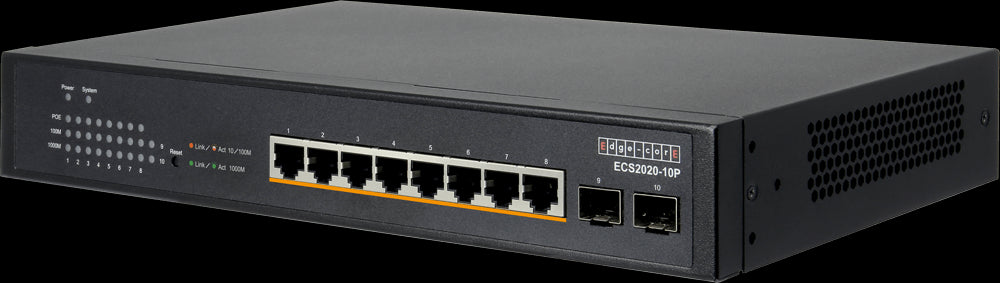

Discover the Edge-corE ECS2020-10P, the latest in cost-effective, web-smart switching designed specifically for the demands of SMB and enterprise markets. This high-performance switch offers a complete networking solution, combining 8 Gigabit PoE+ ports with 2 dedicated Gigabit SFP ports for high-speed fiber uplinks. Its robust Layer 2 features, energy-efficient design, and user-friendly web management interface make it the ideal choice for deploying IP cameras, VoIP phones, and wireless access points.
Silent Operation, Flexible Power
Engineered with a fanless design, the ECS2020-10P ensures silent operation, making it perfect for noise-sensitive environments like offices and classrooms. It provides a total power budget of 70W, capable of supplying up to 30W on two ports (IEEE 802.3at) or 15.4W on four ports (IEEE 802.3af). This flexible PoE capability simplifies installation and reduces cable clutter by delivering both power and data over a single Ethernet cable.
Key Features
- Full Gigabit Performance: 8 x 10/100/1000BASE-T PoE ports and 2 x Gigabit SFP ports provide high-speed connectivity for all your devices.
- Flexible PoE+ Budget: A 70W total power budget supports both IEEE 802.3af (PoE) and 802.3at (PoE+) standards.
- Silent & Reliable: The fanless design ensures quiet operation and increased reliability.
- Smart Management: Easily manage your network with a user-friendly web interface, SNMP, and Telnet CLI access. Supports both IPv4 and IPv6 management.
- Enhanced Security: Protect your network with features like Port Security, DoS attack protection, Access Control Lists (ACLs), and 802.1X authentication.
- Optimized for Voice and Video: Automatic Voice and Surveillance VLANs prioritize traffic to ensure smooth, high-quality performance for VoIP and IP camera applications.
- Energy Efficient: Compliant with IEEE 802.3az Energy Efficient Ethernet to help reduce power consumption.
Technical Specifications
| Feature | Specification |
|---|---|
| Ports | 8 x 10/100/1000BASE-T RJ-45 PoE Ports 2 x 100/1000BASE-X SFP Ports |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K Entries |
| PoE Standard | IEEE 802.3af (PoE) / IEEE 802.3at (PoE+) |
| PoE Power Budget | 70 Watts |
| Management | Web GUI, SNMP v1/v2c/v3, Telnet, CLI |
| VLANs | Supports up to 4K VLANs, Port-based, IEEE 802.1Q tag-based, Voice VLAN, Surveillance VLAN |
| Power Supply | Internal, 100-240 VAC, 50-60 Hz |
| Dimensions (W x D x H) | 294 x 180 x 44 mm (11.6 x 7.1 x 1.7 in) |
| Weight | 2 kg (4.4 lbs) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Certifications | CE, FCC, UL, BSMI, CB |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
