Edge-corE

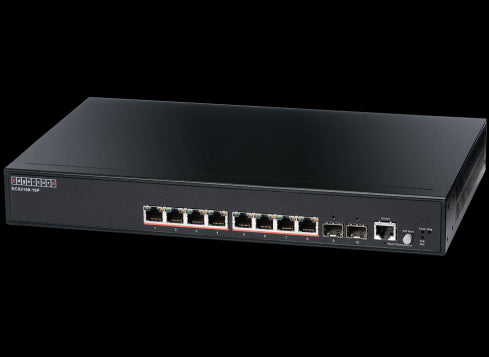

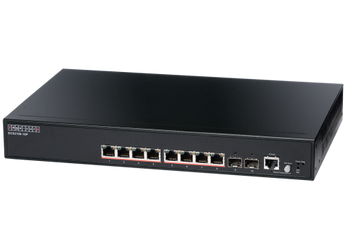

Edge-Core 10 Port Gb Websmart Pro PoE Switch
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Performance, Silent & Versatile PoE+ Switching for Modern Networks
Unlock the full potential of your network with the Edge-Core ECS2100-10P, a professional-grade Web-Smart Pro PoE+ Switch. Designed for small to medium-sized businesses and enterprise environments, this switch combines robust L2 and L3 lite features with a powerful 125W PoE budget, all within a silent, fanless design. It's the ideal solution for powering IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices without the need for additional power outlets.
Key Features
- Flexible Port Configuration: Features 8 Gigabit Ethernet PoE+ ports and 2 dedicated Gigabit SFP uplink ports for high-speed fiber connectivity.
- Robust PoE+ Power Budget: A total power budget of 125W supports IEEE 802.3af/at standards, delivering up to 30W per port to power your essential devices.
- Silent & Efficient Operation: The fanless design ensures silent operation, making it perfect for deployment in noise-sensitive environments like offices and classrooms. It also incorporates green-saving technologies like IEEE 802.3az to reduce power consumption during periods of low network traffic.
- Advanced Management: As a Web-Smart Pro switch, it offers a variety of management options, including a console port, for both web-smart and L2 managed switch capabilities. It also supports L3 static routing.
- High Performance: With a 20 Gbps switching capacity and a forwarding rate of 14.9 Mpps, this switch can handle demanding network traffic with ease.
- Enhanced Security: Protect your network with advanced security features such as ACLs, Port Security, and DDOS protection.
Technical Specifications
| Ports | 8 x RJ-45 10/100/1000BASE-T PoE Ports 2 x 1G SFP Uplink Ports 1 x RJ-45 Console Port |
| Performance | Switching Capacity: 20 Gbps Forwarding Rate: 14.9 Mpps MAC Address Table: 8K Packet Buffer: 4.1 Mbits Jumbo Frames: 10K |
| PoE Features | Standard: IEEE 802.3af/at Total Power Budget: 125W Dynamic Power Allocation |
| L2/L3 Lite Features | Spanning Tree Protocol (STP/RSTP/MSTP) IEEE 802.1Q VLANs (up to 4K) L3 Static Routing IPv4/IPv6 Support |
| Management | Web GUI, CLI, SNMP, Telnet ecCLOUD Management |
| Power | Input: 100-240 VAC, 50-60 Hz Max System Power Consumption: 160W |
| Mechanical | Dimensions (W x D x H): 33 x 20.4 x 4.26 cm (12.9 x 8 x 1.67 in) Weight: 2.4 kg (5.34 lb) Form Factor: Rackmount Acoustic Noise: 0 dB (Fanless) |
| Environmental | Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90% (non-condensing) |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
