Edge-corE

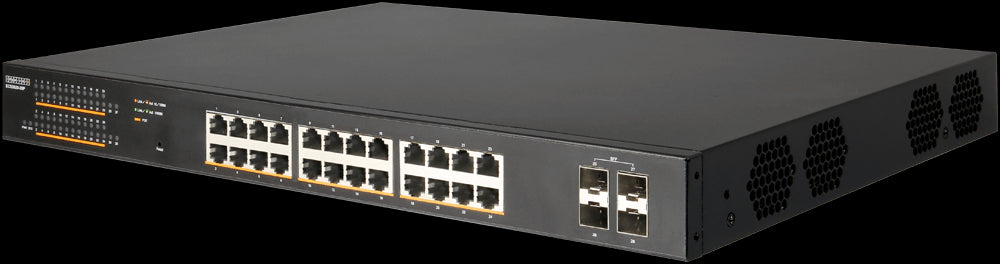

Edge-Core 28 Port Gb Websmart PoE Switch
Pickup available at NexGen Computing
Usually ready in 24 hours
Power and Performance for Modern Networks
The Edge-corE ECS2020-28P is a cost-effective, high-performance web-smart switch designed for the demanding needs of small to medium-sized businesses (SMB) and enterprise networks. It offers a robust solution with 24 Gigabit Ethernet ports, 4 Gigabit SFP uplink ports for flexible fiber connectivity, and a substantial 190W Power-over-Ethernet (PoE) budget. This switch is engineered to power essential devices such as IP cameras, VoIP phones, and wireless access points, making it an ideal backbone for a modern, connected workplace.
Intelligent Features and Simplified Management
As a web-smart switch, the ECS2020-28P provides a perfect balance of control and simplicity. It supports both IPv4 and IPv6 management, ensuring your network is future-proof. Key features include automatic voice and surveillance VLANs to optimize traffic for VoIP and IP cameras, IGMP/MLD snooping for smooth multicast streaming, and comprehensive QoS with 8 hardware queues to prioritize critical data. Management is streamlined through a user-friendly web interface, SNMP v1/v2c/v3, and Telnet for CLI access.
Robust Security and Energy Efficiency
Security is paramount, and the ECS2020-28P delivers with features like Access Control Lists (ACLs), 802.1X port-based authentication, storm control, and DoS protection to safeguard your network from unauthorized access and attacks. The switch is also compliant with the IEEE 802.3az Energy Efficient Ethernet standard, which reduces power consumption during periods of low network traffic, lowering operational costs without sacrificing performance. With 4KV surge protection, this switch is built for reliability and resilience in various environments.
Technical Specifications
| Feature | Specification |
|---|---|
| Ports | 24 x 10/100/1000BASE-T RJ-45 Ports 4 x Gigabit SFP Uplink Ports |
| PoE (Power-over-Ethernet) | 24 PoE/PoE+ Ports Total Power Budget: 190W Standards: IEEE 802.3af/at |
| Performance | Switching Capacity: 56 Gbps Forwarding Rate: 41.7 Mpps MAC Address Table: 8K Packet Buffer: 4.1 Mbits Jumbo Frames: 10K |
| Memory | Flash Memory: 16 MB DRAM: 128 MB |
| L2 Features | Auto-Voice VLAN, Auto-Surveillance VLAN Storm Control IGMP/MLD Snooping Spanning Tree Protocol (STP/RSTP/MSTP) Link Aggregation (LACP) |
| Management | Web-based Management Interface SNMP v1/v2c/v3 Telnet CLI IPv4/IPv6 Management |
| Security | Access Control Lists (ACLs) 802.1X Port Security DoS Attack Prevention IP Source Guard |
| Environmental | Operating Temperature: 0°C to 50°C (32°F to 122°F) Heat Dissipation: 657.83 BTU/hr Cooling: Fans |
| Physical | Dimensions: Standard Rack Mountable Weight: 5000g |
| Standards Compliance | IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af/at PoE/PoE+ |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
