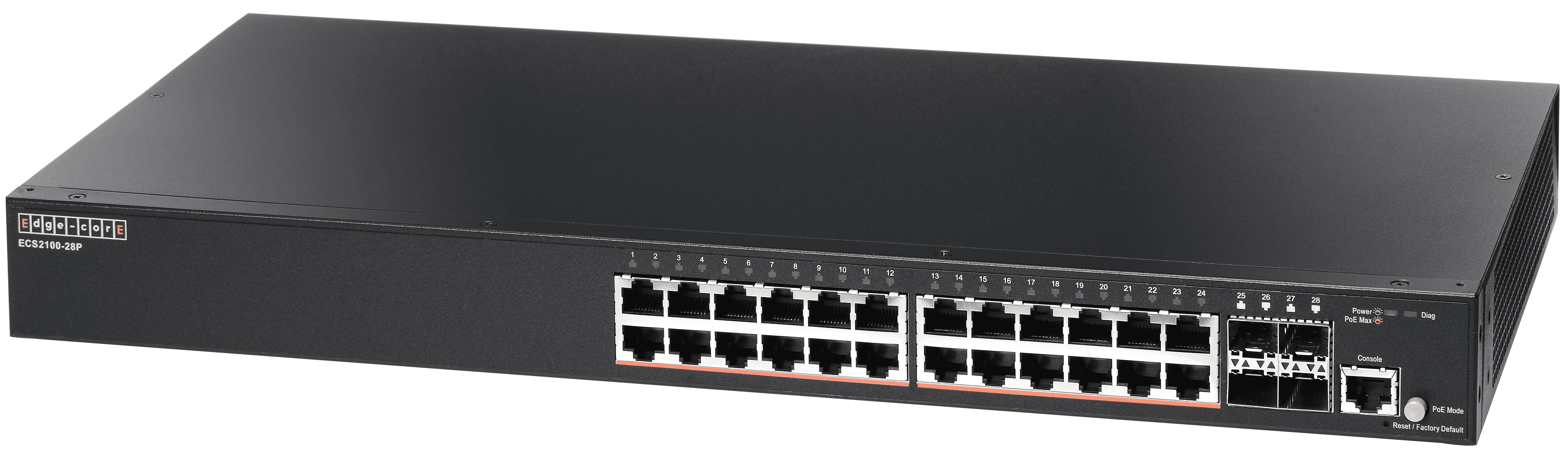

Edge-Core 28 Port Gb Websmart Pro PoE Switch
Pickup available at NexGen Computing
Usually ready in 24 hours
Power and Performance for Modern Networks
Unlock robust connectivity and intelligent power management with the Edge-Core ECS2100-28P, a high-performance Gigabit Ethernet access switch designed for the demands of modern SMB and enterprise networks. This Web Smart Pro switch combines the simplicity of a web-based interface with advanced Layer 2 and Layer 3 static routing capabilities, providing a versatile and cost-effective solution for your evolving IT infrastructure.
Flexible PoE+ and High-Speed Uplinks
The ECS2100-28P features 24 Gigabit PoE+ ports that deliver up to 30 watts of power per port, with a total power budget of 200W. This makes it the perfect backbone for deploying power-hungry devices such as VoIP phones, wireless access points, and IP surveillance cameras directly over your existing Ethernet cabling. In addition to the copper ports, it includes 4 Gigabit SFP ports for high-speed fiber uplinks, ensuring a bottleneck-free connection to your core network.
Intelligent Management and Efficiency
Engineered for both performance and energy savings, this switch boasts a 56 Gbps switching capacity to handle high-traffic loads. It incorporates green-saving technologies like IEEE 802.3az Energy Efficient Ethernet, which automatically reduces power consumption during periods of low network traffic. With comprehensive management options including a command-line interface (CLI), web GUI, and SNMP support, you have granular control over your network.
Technical Specifications
| Hardware Specifications | |
|---|---|
| Ports | 24 x 10/100/1000BASE-T RJ-45 PoE Ports 4 x 1G SFP Uplink Ports 1 x RJ-45 Console Port |
| DRAM | 256 MB |
| Flash Memory | 32 MB |
| Dimensions (W x D x H) | 44 x 22 x 4.4 cm (17.32 x 11.02 x 1.73 in) |
| Weight | 2.8 kg (6.18 lb) |
| Performance | |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.7 Mpps |
| MAC Address Table | 8K |
| Jumbo Frames | 10K |
| Packet Buffer Memory | 4.1 Mbits |
| Power over Ethernet (PoE) | |
| PoE Standard | IEEE 802.3af/at PoE+ |
| Total PoE Power Budget | 200W |
| Max Power Consumption | 260W |
| Environmental | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Acoustic Noise | 46.1 dB(A) |
Please note: This product is scheduled to enter its end-of-life (EOL) process effective January 1, 2026. The recommended replacement is the Edgecore ECS4150-28P.
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
