Edimax

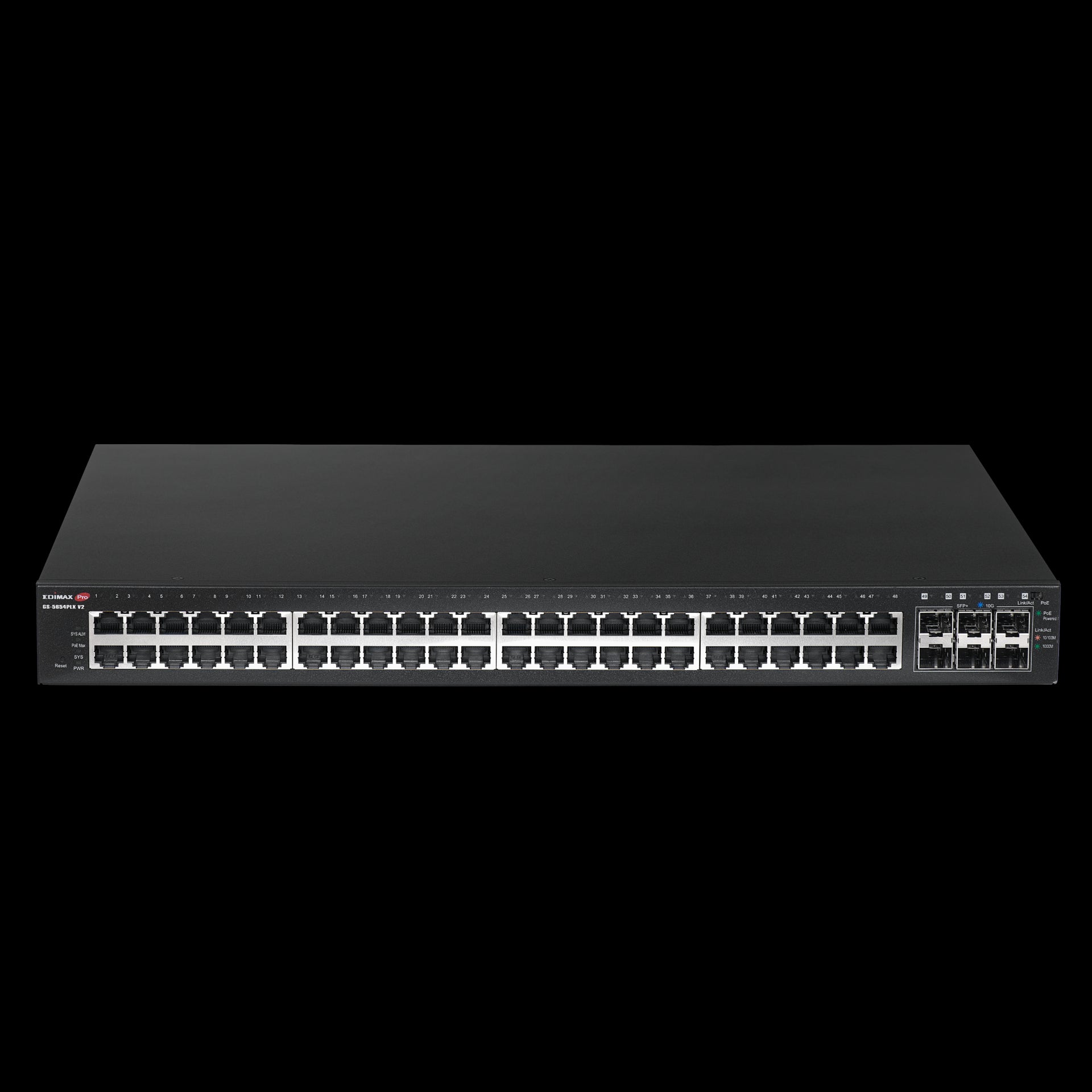

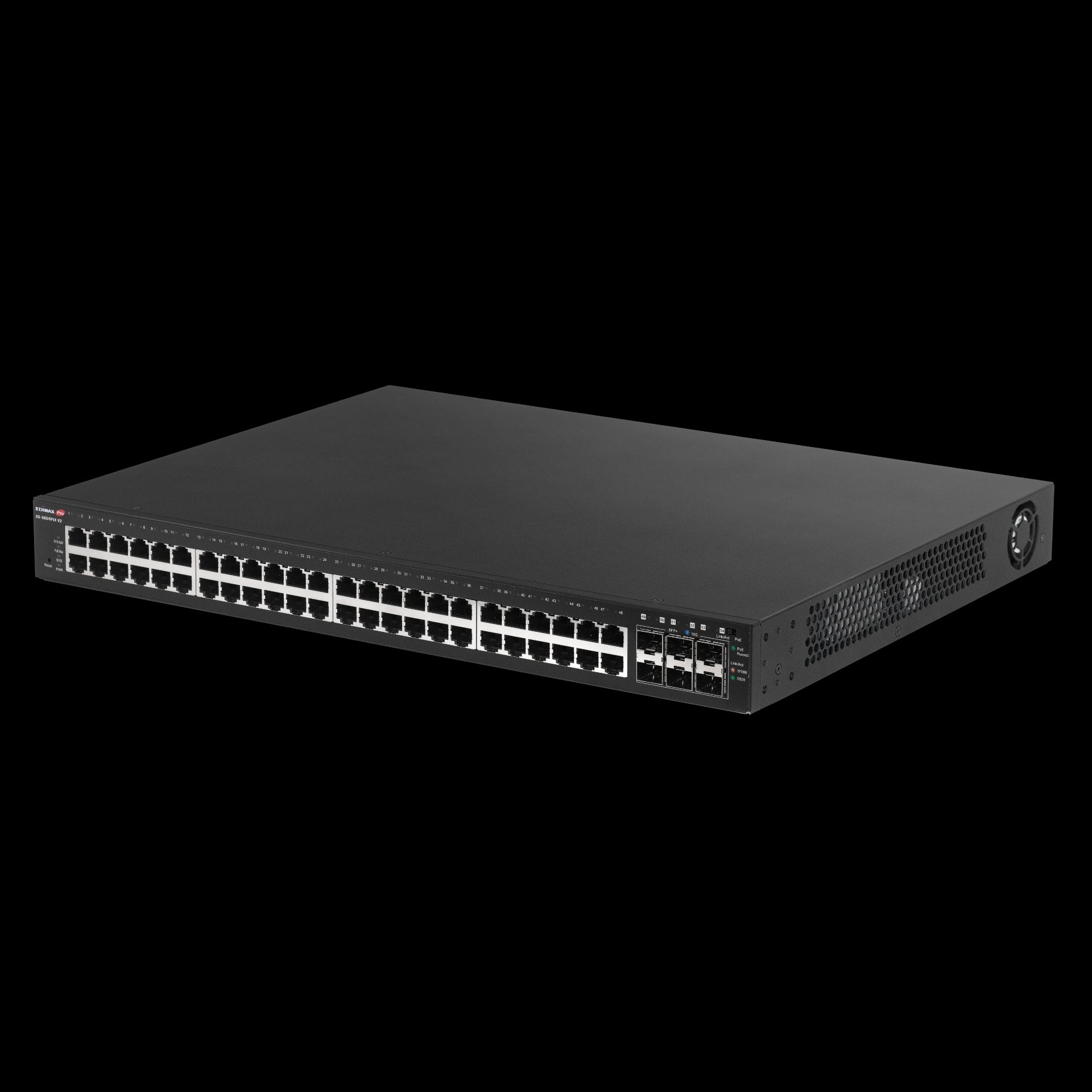

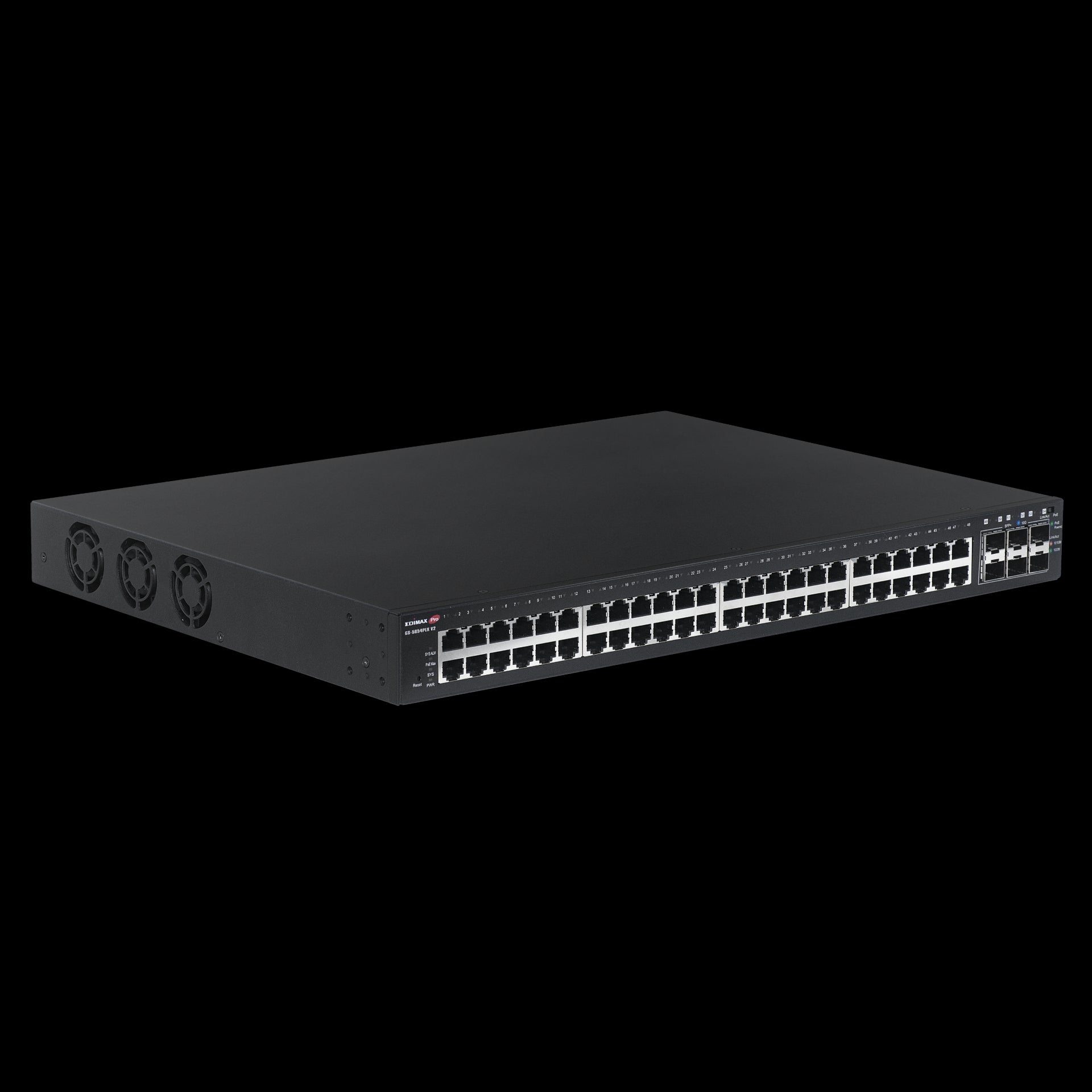

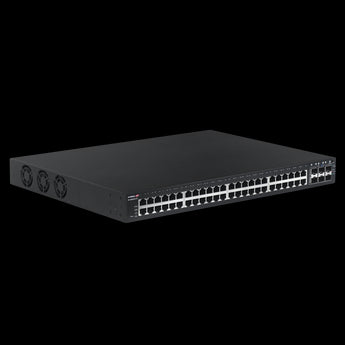

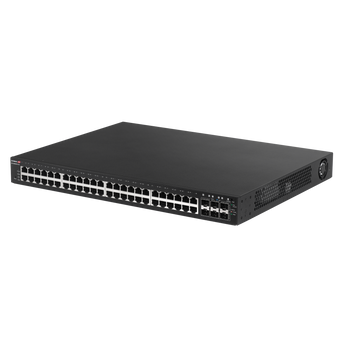

Edimax GS-5654PLX-V2 54-Port PoE+ Smart Switch with 10G SFP+ Uplinks
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Performance, High-Density Connectivity for Modern Networks
The Edimax GS-5654PLX-V2 is a enterprise-grade web smart switch engineered for businesses that demand a powerful, reliable, and scalable network infrastructure. It combines 48 Gigabit PoE+ ports with 6 high-speed 10GbE SFP+ uplink ports, providing a robust solution for handling demanding tasks like IP surveillance, video conferencing, data backup, and large file transfers without creating network bottlenecks.
Extended Reach with Long Range PoE
Break free from the standard 100-meter Ethernet limitation. The GS-5654PLX-V2 features a Long Range mode that extends both power and data delivery up to 200 meters on a per-port basis. This capability is perfect for deploying IP cameras, VoIP phones, and other PoE-enabled devices in large facilities, warehouses, or remote locations where power outlets are scarce.
Intelligent Power and Reliability
With a substantial 400W total power budget, this switch delivers up to 30W per port, compliant with IEEE 802.3af/at (PoE/PoE+) standards. It automatically detects connected powered devices (PD) to prevent damage and features a unique PD alive check function that monitors device status and can automatically reboot unresponsive devices, ensuring network reliability and reducing manual intervention. Furthermore, power backfeed protection is built-in to safeguard the PoE ports from damage.
Advanced Management & Robust Performance
The GS-5654PLX-V2 is equipped with a comprehensive suite of Layer 2 smart management features. These include 802.1Q VLAN, QoS, Port Trunking, IGMP Snooping, and Access Control Lists (ACL) to enhance network security and efficiency. A massive 216 Gbps backplane bandwidth and a 160.7 Mpps forwarding rate ensure data flows smoothly without delay. For maximum uptime, the switch includes a dual-firmware image feature, providing a robust failover mechanism.
Smart and Quiet Operation
An intelligent thermal controller manages the internal fans, adjusting their speed based on the temperature. This not only ensures optimal cooling but also significantly reduces noise and conserves energy, making it suitable for various office environments.
| Hardware Specifications | |
|---|---|
| Ports | 48 x RJ45 10/100/1000Base-T Gigabit PoE+ 6 x SFP+ 10GBase-X 1 x RJ45 Console Port |
| LED Indicators | Per Port: Link/Activity Per Unit: Power, System |
| Power Input | 100-240V AC, 50-60 Hz |
| Fans | 3 x Intelligent Thermal Controller Fans |
| Dimensions (W x D x H) | 441 x 330 x 45 mm |
| Weight | 5.6 kg |
| Performance | |
| Switching Capacity | 216 Gbps |
| Forwarding Rate | 160.7 Mpps (64-byte packet size) |
| MAC Address Table | 32K |
| Jumbo Frames | 12KB |
| Power over Ethernet (PoE) | |
| PoE Standard | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Power Output | Up to 30W per port |
| Total Power Budget | 400W |
| Software Features | |
| Key Features | Web Smart Management SNMP v1/v2/v3 802.1Q VLAN QoS & CoS Access Control List (ACL) Port Trunking & Mirroring IGMP Snooping (v1/v2/v3) DHCP Snooping IPv4/IPv6 Support Dual-Firmware Image |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
