Giada D108 AMD Ryzen 7 8845HS Book-size Signage Player

AMD Ryzen 7 8845HS | Radeon 780M Graphics | AMD Ryzen AI (38 TOPS) | Quad 4K HDMI Output | Up to 96GB DDR5 | Book-Size Design

Quick Specs

• Drive demanding signage and edge AI workloads with an 8-core AMD Ryzen 7 8845HS
• Accelerate on-device AI with AMD Ryzen AI delivering up to 38 TOPS
• Power up to four 4K displays at once through quad HDMI outputs
• Expand to 96GB DDR5 memory and fast PCIe 4.0 M.2 SSD storage
• Connect with dual Ethernet (1GbE + 2.5GbE) and plentiful USB 3.2 Gen2

Ryzen 8000-Series Power in a Book-Size Build

The Giada D108 is a high-performance embedded computer built around the 8-core AMD Ryzen 7 8845HS processor with integrated AMD Ryzen AI. Delivering up to 38 TOPS of total AI performance (16 TOPS from the dedicated NPU), it's ready for modern AI-assisted signage, kiosk and edge workloads across South Africa - all in a compact, book-size chassis that fits almost anywhere.

Stunning Quad-Display Visuals

Built for digital signage, the D108 drives up to four independent displays simultaneously through four HDMI ports, each supporting resolutions up to 3840 2160 (4K) at 60Hz with hardware EDID. AMD Radeon 780M graphics handle rich multimedia with advanced hardware decode and encode (including H.265, VP9 and AV1), making it ideal for crisp 4K video walls and multi-screen deployments.

Extensive Connectivity and Expansion

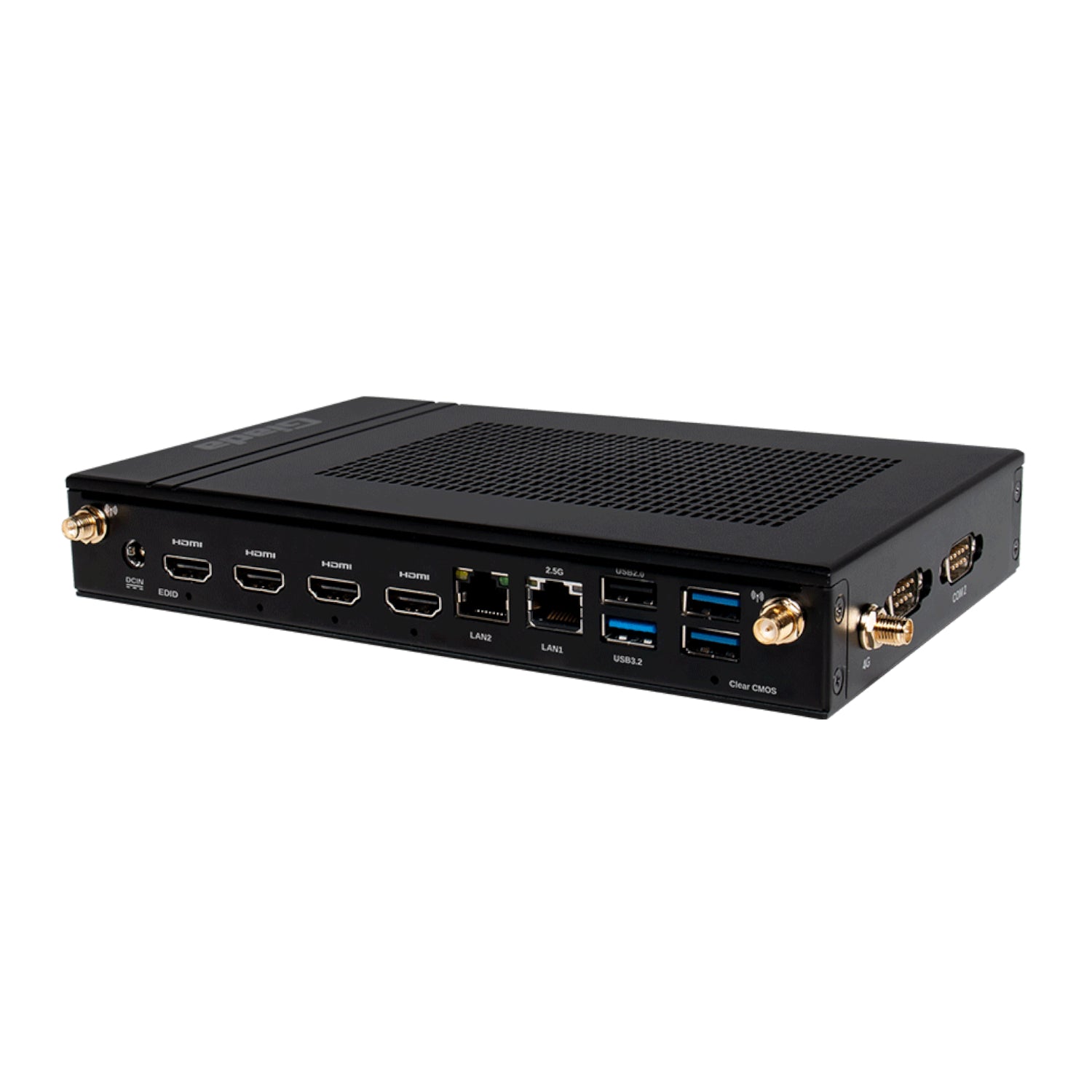

Connectivity is comprehensive. A rich I/O array includes five USB 3.2 Gen2 ports, a USB 2.0 port, an RS232 serial port (optionally two) and MIC-IN/AUDIO-OUT, while dual Ethernet - 1GbE plus 2.5GbE - keeps wired networking fast and resilient. Inside, support for up to 96GB of dual-channel DDR5 memory and a PCIe 4.0 M.2 (2280) SSD gives you room to scale, with optional M.2 modules adding Wi-Fi 5/6E and 4G mobile connectivity plus a SIM slot.

Reliable, Always-On Operation

Engineered for unattended deployments, the D108 features smart active cooling, a watchdog timer, auto power-on, scheduled RTC and optional TPM 2.0 for hardware security. A rugged metal chassis and a wide 0-45C operating range keep it dependable around the clock, and it runs Windows 11 (64-bit) or Linux Ubuntu (64-bit), fully certified to CE, FCC Class B and UKCA standards.

FEATURES:

• 8-core AMD Ryzen 7 8845HS processor (AMD Ryzen 8000 series)
• AMD Ryzen AI with up to 38 TOPS total, including a 16 TOPS NPU
• AMD Radeon 780M integrated graphics
• Quad HDMI output driving up to four 4K displays at 3840 2160 @60Hz with hardware EDID
• Advanced multimedia decode/encode (H.264, H.265, VP9, AV1)
• Up to 96GB dual-channel DDR5-5200 memory across two SO-DIMM slots
• PCIe 4.0 x4 M.2 (2280) SSD storage
• Five USB 3.2 Gen2 ports plus one USB 2.0 port
• RS232 serial port (optional second RS232)
• Dual Ethernet: 1GbE (Realtek) and 2.5GbE (Intel I226-V)
• Optional M.2 Wi-Fi 5/6E and 4G mobile connectivity with SIM slot
• Smart active cooling, watchdog timer, auto power-on and scheduled RTC
• Optional TPM 2.0 for hardware security
• Rugged metal construction with a wide 0-45C operating temperature range
• Runs Windows 11 (64-bit) or Linux Ubuntu (64-bit)
• Certified to CE, FCC Class B and UKCA standards

SPECIFICATIONS:

• Processor: AMD Ryzen 7 8845HS (8 cores)
• Chipset: SoC
• Base Power: 45 W
• NPU: AMD Ryzen AI, 38 TOPS total (16 TOPS NPU)
• GPU: AMD Radeon 780M
• Multimedia: 1080p60 8bpc MPEG2/VC1, 4320p75 8bpc H.264, 4320p49 8/10bpc H.265/VP9 decode; 2160p175 8bpc H.264, 4320p43 8bpc H.265, 4320p60 8/10bpc AV1 encode
• System Memory: Up to 96 GB, 2 SO-DIMM DDR5-5200 MHz
• Storage: 1 M-Key M.2 (2280) PCIe 4.0 x4 for SSD
• Display Interface: 4 HDMI (max. 3840 2160 @60 Hz) with hardware EDID
• Displays Supported: 4
• USB: 5 USB 3.2 Gen2, 1 USB 2.0
• Serial Port: 1 RS232 DB9 (optional: 2 RS232)
• Audio: 1 MIC-IN, 1 AUDIO-OUT
• Ethernet: 1 1 GbE RJ45 (Realtek RTL8111H), 1 2.5 GbE RJ45 (Intel I226-V)
• Wi-Fi / Bluetooth: 1 E-Key M.2 (2230) for Wi-Fi/BT
• Mobile Network: 1 B-Key M.2 (3042/3052) for 3G/4G, 1 SIM slot
• Antenna: 2 Wi-Fi/BT connectors, 2 3G/4G connectors (reserved)
• Buttons: 1 Power on, 1 CLR-CMOS
• TPM: Optional TPM 2.0
• Watchdog Timer: Yes
• Auto Power On: Yes
• RTC: Independent daily/weekly scheduling
• Cooling: Smart fan, active cooling
• Power Requirement: DC-IN, 19 V / 4.74 A
• Operating System: Windows 11 (64-bit) / Linux Ubuntu (64-bit)
• Operating Temperature: 0C ~ 45C (32F ~ 113F) @ 0.7m/s air flow
• Humidity: 10 ~ 90% @ 45C (non-condensing)
• Certifications: CE, FCC Class B, UKCA
• Construction: Metal, Black
• Product Dimensions: 20.5 13 3.2 cm

WHAT'S IN THE BOX:

• Giada D108 Book-Size Signage Player x1
• Wi-Fi Antenna x2
• AC Power Cable x1
• AC Power Adapter x1

Why Giada?

Giada is a specialist in reliable embedded and signage computing trusted by integrators worldwide, and the D108 reflects that focus - powerful, compact and built to run around the clock. For South African businesses deploying digital signage, kiosks or edge AI, it's a dependable, expandable platform backed by Giada's reputation for industrial-grade quality.
